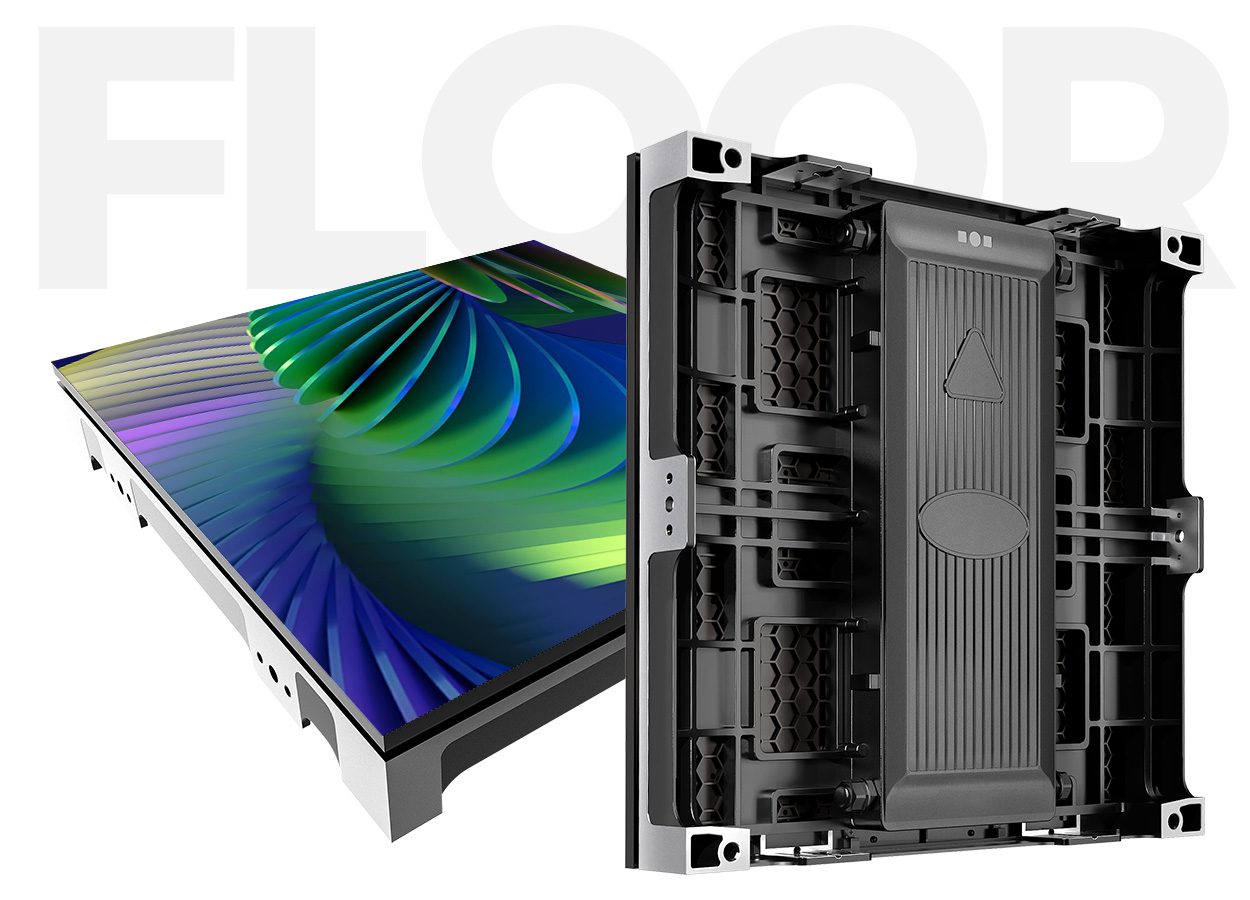

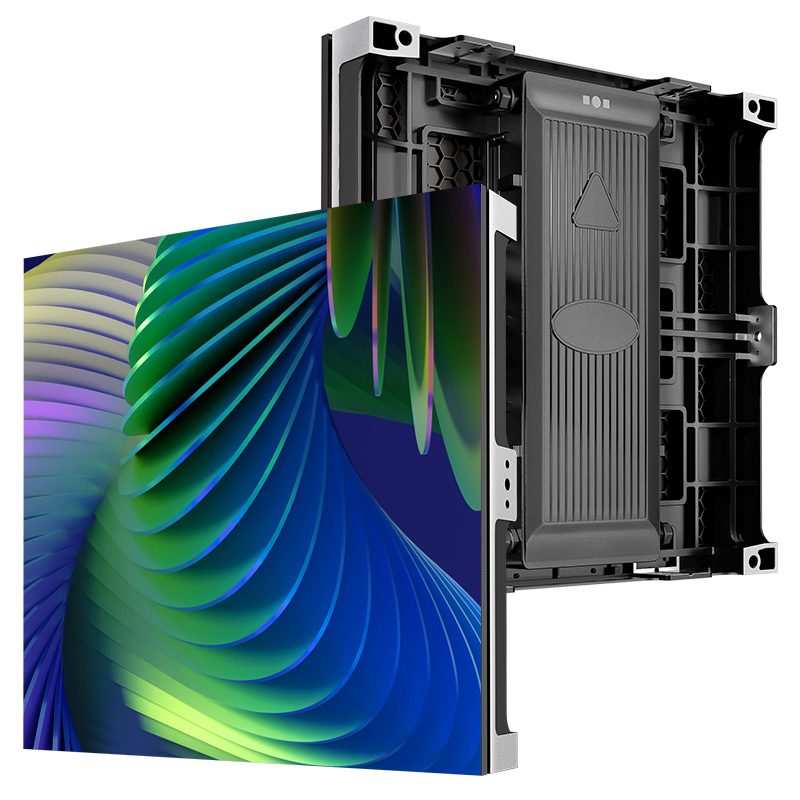

EA500RF2 Indoor GOB Floor LED Screen
EA500RF2 Indoor GOB Floor LED Screen is designed for stages, exhibitions, conferences, and other indoor events, featuring fast installation and easy dismantling for efficient setup in various temporary applications.

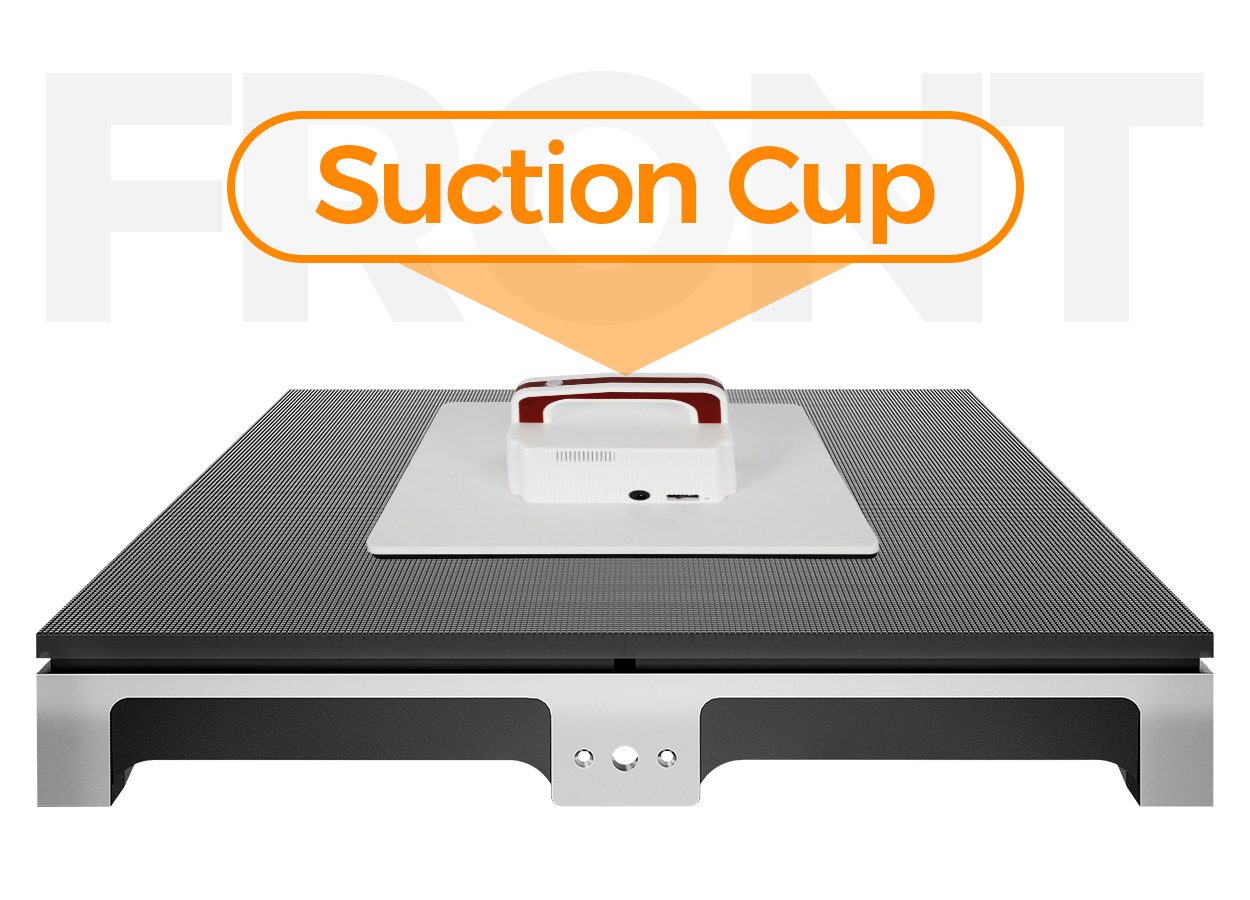

Front Maintenance Design
EA500RF2 Indoor GOB Floor LED Screen features a front maintenance design and supports vacuum suction tool servicing, making installation and maintenance more convenient and highly efficient.

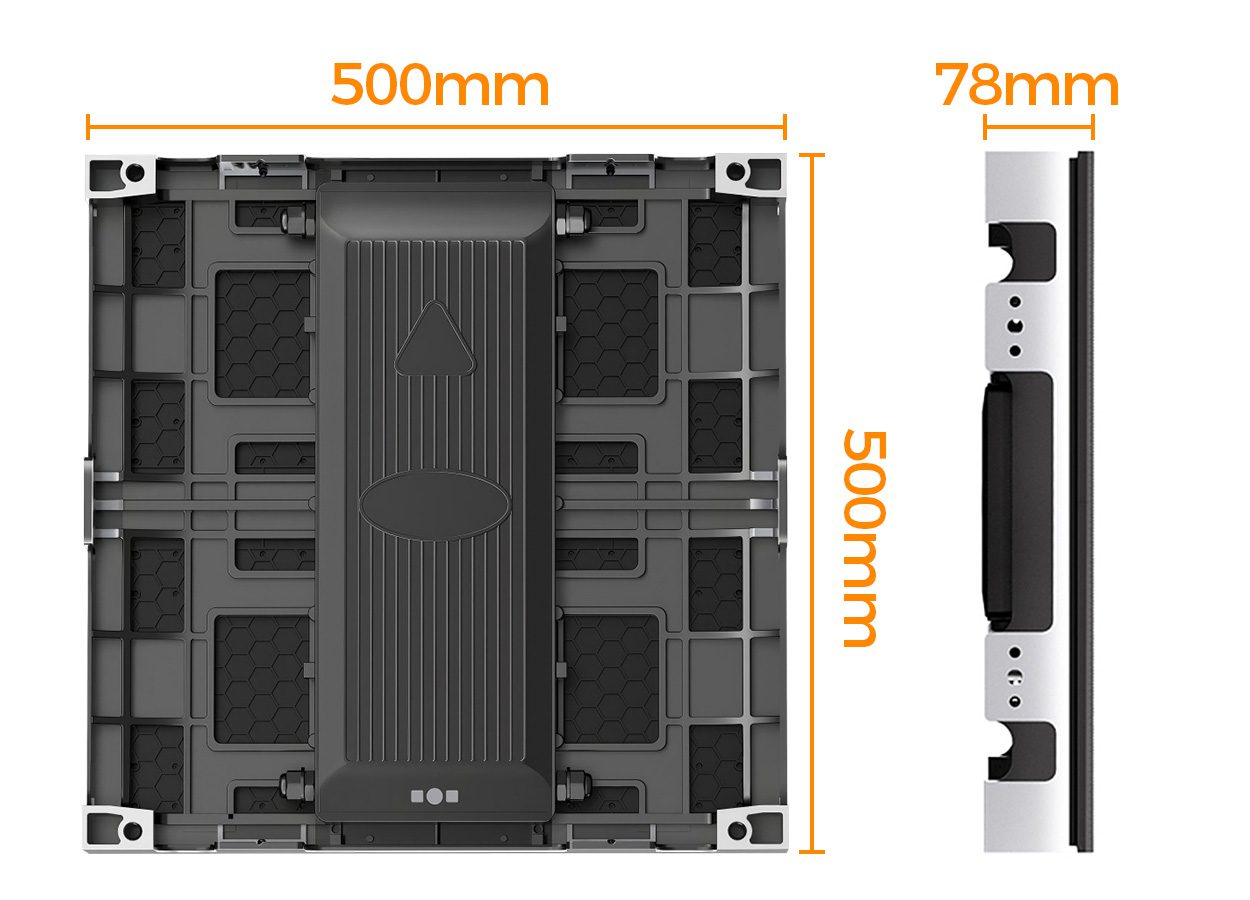

Cabinet Design
EA500RF2 Indoor GOB Floor LED Screen features a die-cast aluminum cabinet with a compact 500 × 500 mm size and an ultra-slim 78 mm thickness, ensuring a lightweight yet durable structure.

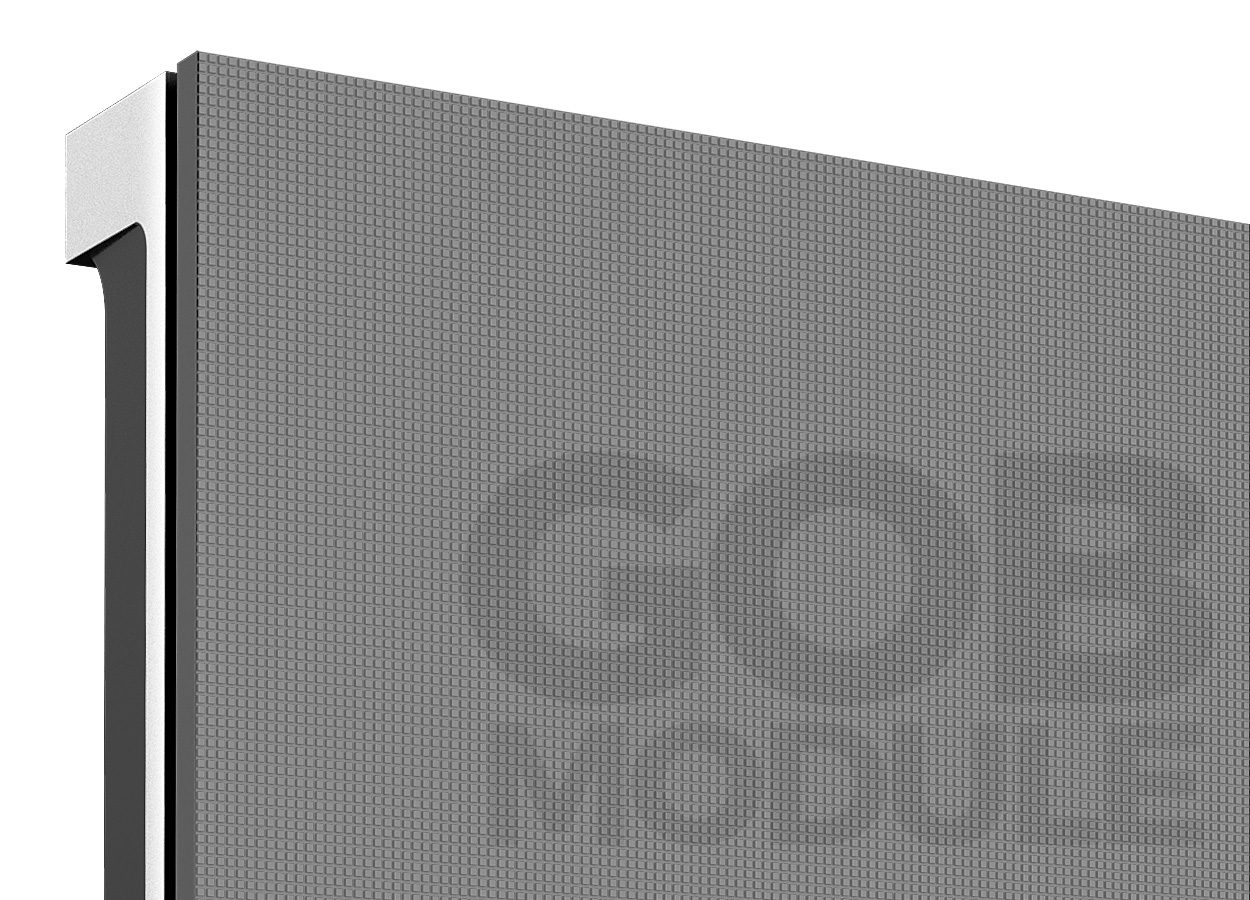

GOB LED Module
EA500RF2 LED module adopts GOB technology to enhance protection performance, paired with a high-protection cabinet and sealed rear cover. Its IP54-rated dustproof and waterproof design ensures stable operation and long-lasting durability.

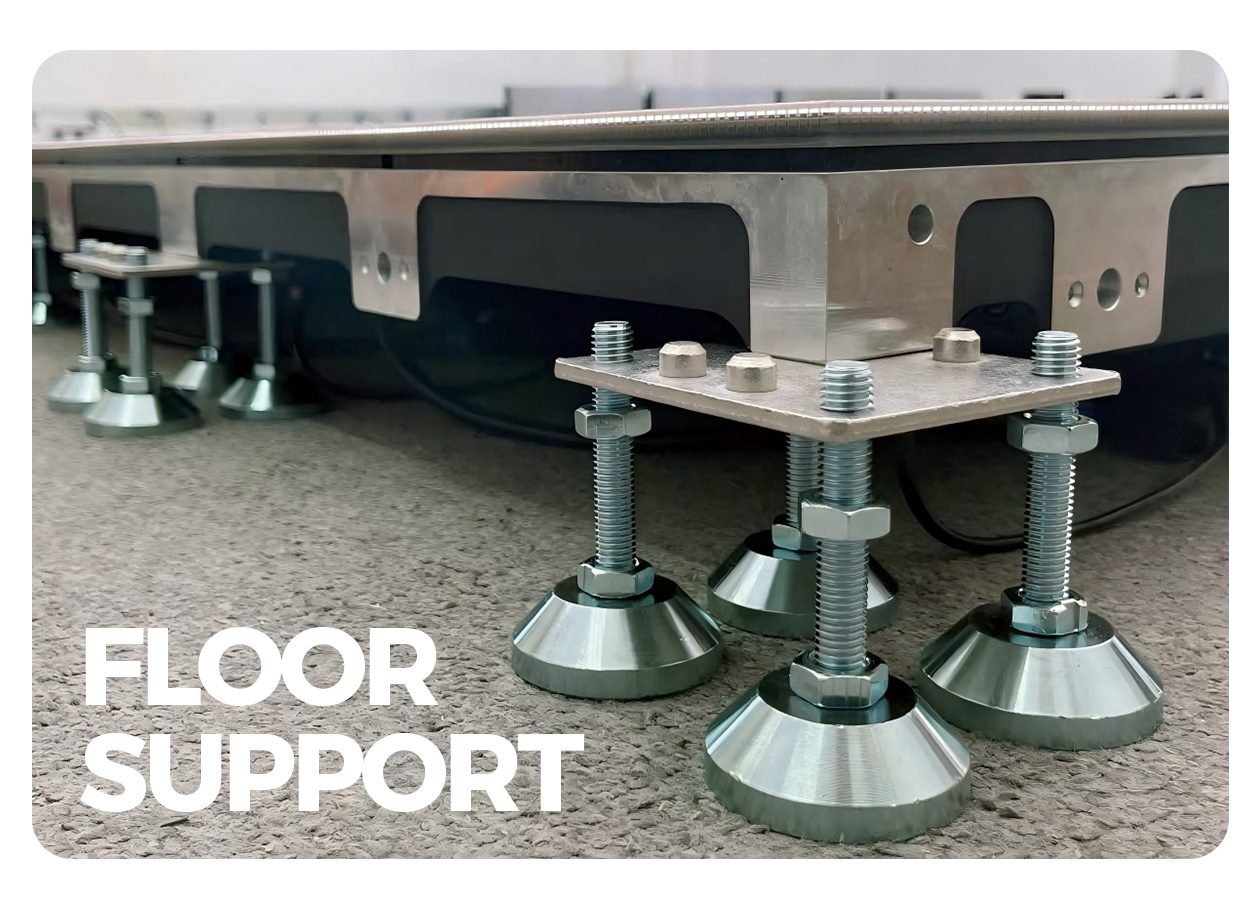

Convenient Installation
EA500RF2 Indoor Floor LED Screen features a floor-support installation structure for quick assembly. Its simple and efficient setup makes it ideal for fast deployment in short-term events and rental applications.
High Load-bearing Capacity
EA500RF2 Floor LED Screen offers an excellent load-bearing capacity of over 800 kg/m², making it well-suited for high-intensity applications such as stage performances and event displays.
Interactive Induction (Optional)
EA500RF2 Indoor Floor LED Screen can be optionally equipped with sensor chips to enable real-time interactive effects triggered by touch or stepping, significantly enhancing user engagement. It is well-suited for exhibitions, interactive displays, and various event scenarios.

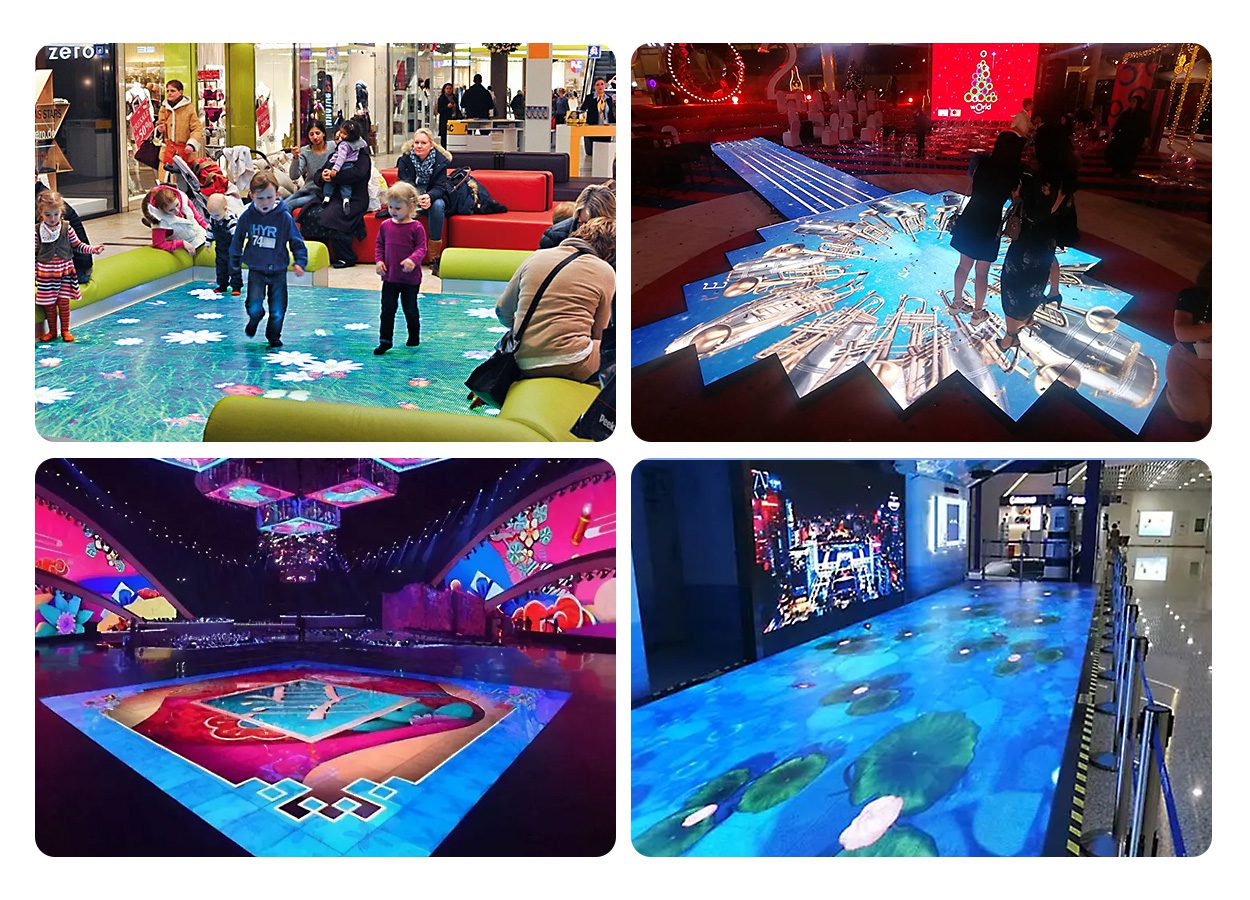

Application
EA500RF2 Indoor Floor LED Screen is widely used in stage applications and is also ideal for theaters, hotels, concert halls, and shopping malls, effectively enhancing on-site atmosphere and interactive experiences.
EA500RF2 Indoor Floor LED Screen Parameter
| Pixel Pitch (mm) | P1.52 | P1.86 | P1.95 | P2.5 | P2.6 |
|---|---|---|---|---|---|
| Model | EA500RF2-P1.52 | EA500RF2-P1.86 | EA500RF2-P1.95 | EA500RF2-P2.5 | EA500RF2-P2.6 |
| Pixel Configuration | SMD1212 | SMD1921 | SMD1515 | SMD1415 | SMD1415 |
| Density (Pixels/㎡) | 409,600 | 287,296 | 262,144 | 160,000 | 147,456 |
| Module Resolution (Pixel) | 160x160 | 134x134 | 128x128 | 100x100 | 96x96 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/25 | 1/32 | 1/16 |
| Cabinet Size (mm) | 500x500 | 500x500 | 500x500 | 500x500 | 500x500 |
| Cabinet Weight (KG) | 11.1 | 11.1 | 11.1 | 11.1 | 11.1 |
| Brightness (CD/㎡) | 600 | 800 | 900 | 900 | 1000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 800 | 800 | 800 | 800 | 800 |
| Avg. Power Consumption (W/㎡) | 300 | 300 | 300 | 300 | 300 |
| Frame Frequency (Hz) | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
| Refresh Frequency (Hz) | ≥3480 | ≥3480 | ≥3480 | ≥3480 | ≥3480 |
| Working Temperature (ºC) | '-20～+55 | '-20～+55 | '-20～+55 | '-20～+55 | '-20～+55 |
| Protection Grade | IP54(front), IP43(rear) | IP54(front), IP43(rear) | IP54(front), IP43(rear) | IP54(front), IP43(rear) | IP54(front), IP43(rear) |
