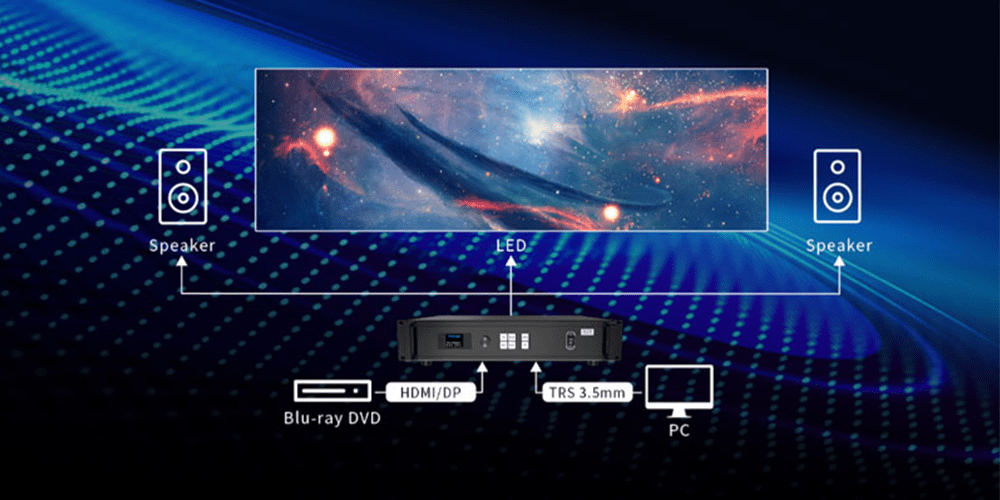

Colorlight LED Controllers – Powerful control solutions for any LED screen

Colorlight LED controllers are known for their innovation, reliability, and versatility, delivering powerful control for LED screens of any size—from outdoor billboards to complex stage setups. Trusted worldwide for their advanced hardware and software integration, Colorlight systems ensure seamless operation and outstanding visual quality.

This article explores the key features, product range, and practical applications of Colorlight LED controllers, helping you understand why they are a top choice for professional LED display control.

Table of Content

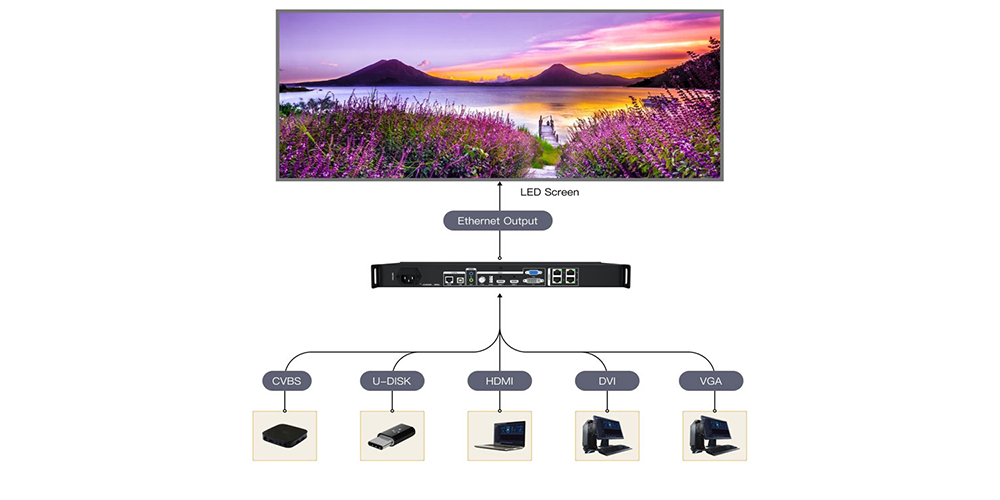

An LED display controller is the “brain” of an LED screen, converting signals from sources like computers or media players into visuals on the LED wall. It determines image clarity, color accuracy, and refresh rate—key factors in display performance. Without a reliable controller, even premium LED panels can’t deliver their best results.

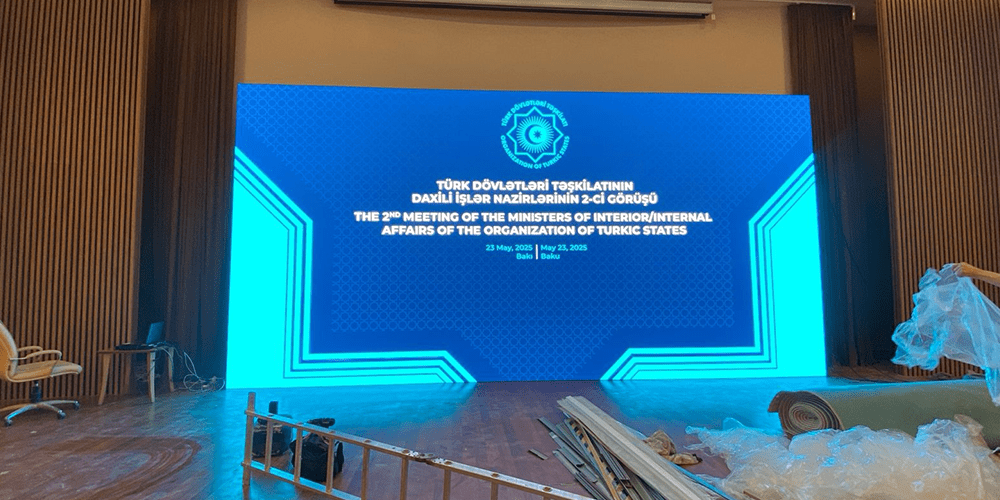

1.1 LED display

LED displays use light-emitting diodes to create bright, energy-efficient visuals ideal for billboards, stadiums, and events. The control system, such as the Colorlight LED Controller, ensures efficient signal processing and seamless image output across different screen types and environments.ensures that input signals are processed efficiently for direct display.

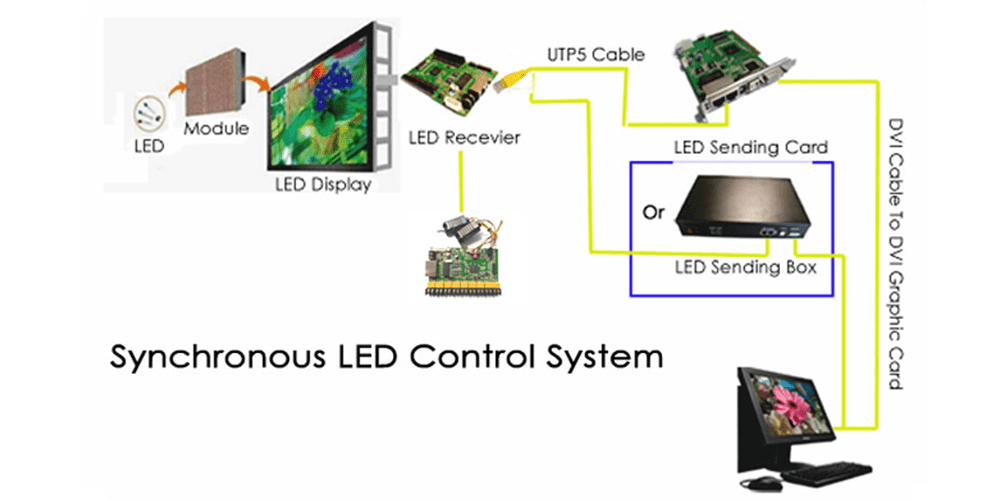

1.2 Synchronous Control System

Synchronous systems connect to an external signal source in real time, updating the LED display instantly. Ideal for live events, concerts, and sports, they deliver smooth, high-resolution visuals with minimal latency.

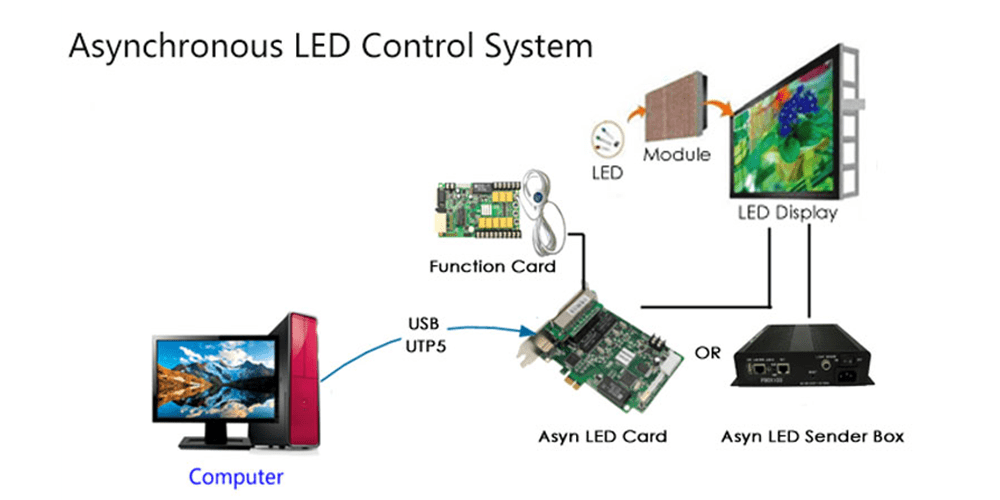

1.3 Asynchronous Control System

Asynchronous systems store content internally and play it on schedule without constant connection. Perfect for billboards and information displays, they offer easy remote control and stable performance.

Colorlight has established itself as a pioneer in LED display control systems, continuously evolving to meet global demands. The brand focuses on delivering cutting-edge solutions through a range of products, including controllers, video processors, and cloud-based players. With a commitment to innovation, Colorlight LED Controller integrates advanced technologies to handle complex display requirements, from small advertising screens to massive outdoor installations.

2.1 Core Advantages of Colorlight LED Controller

The Colorlight LED Controller boasts several key benefits that make it a preferred choice in the market:

• High-resolution support: Capable of processing 4K and higher resolutions, it delivers ultra-clear visuals for high-end exhibitions and rental screens.
• Multiple input signal compatibility:It supports various interfaces like HDMI, DVI, and SDI, allowing seamless integration with diverse video sources.
• Superior pixel loading capacity: With support for up to 8.88 million pixels and maximum dimensions of 8192×8192, it easily manages large LED displays.
• Intelligent remote management:Through LAN or internet, users can control and update multiple displays centrally, ideal for networked systems like urban advertising screens.

2.2 Innovative Technologies

Colorlight incorporates breakthrough technologies to enhance performance:

• Advanced image processing:Features like screen splicing, scaling, and color correction adapt to different resolutions, enabling creative displays.
• HDCP 2.2 support: Ensures content copyright security, making it suitable for movie screenings and high-end video conferences.
• Optimized low-brightness grayscale:Improves color transitions at any brightness level, ensuring detail in various lighting conditions.

Colorlight offers a comprehensive product lineup designed to cater to different LED display needs, from controllers and software to processors. Below, we highlight some of the main series and tools.

3.1 Main Colorlight Controller Product Series

Senders serve as the central hub, converting video inputs into signals for LED displays.

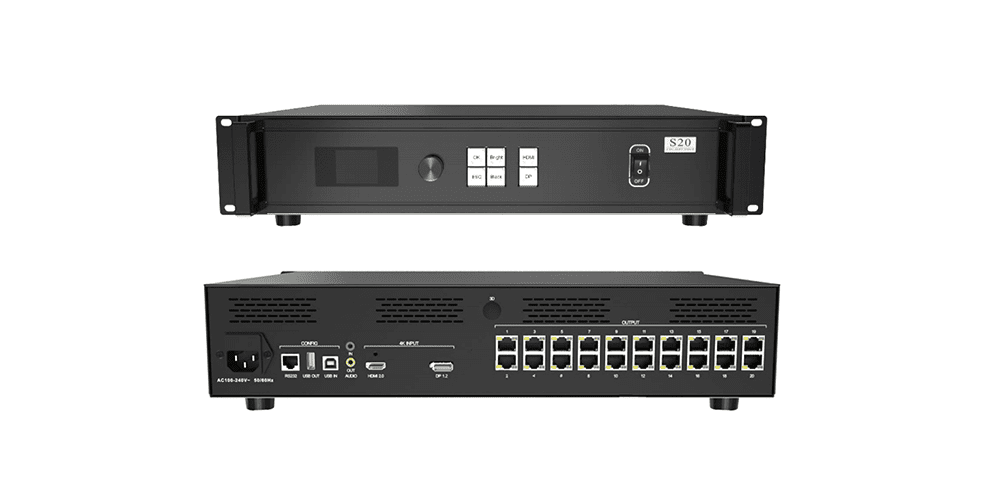

Colorlight S20/S20F

Key Features:

• 4K video input (4096×2160@60Hz) via HDMI 2.0 and DP 1.2.
• Drives up to 8.85 million pixels, supporting displays up to 8192 pixels wide or tall.
• Dual redundancy for instant backup switching.
• 20 Gigabit Ethernet ports for large installations.

Unique Advantage: Built-in audio extraction for synchronized sound.

Best For: Mission-critical environments like live broadcasts or outdoor mega-screens.

Download Product Manual

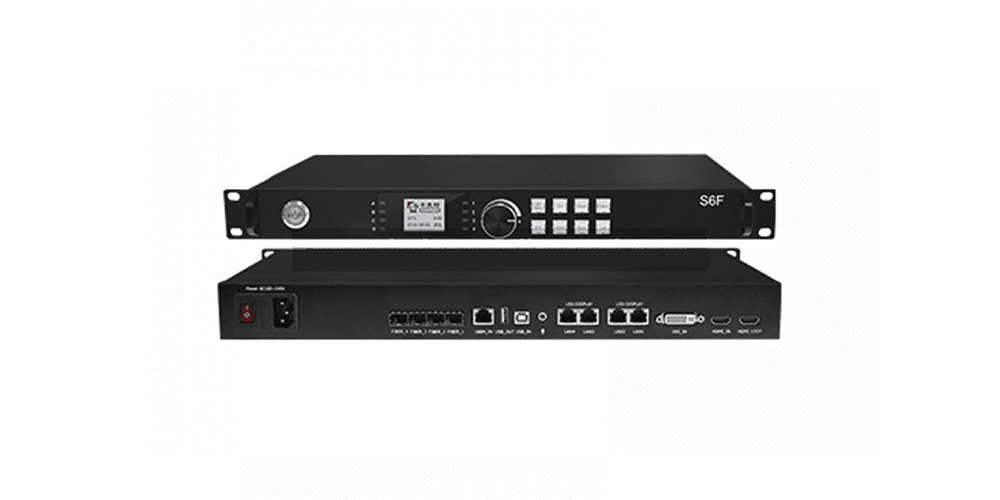

Colorlight S6F/S54/S2

Key Features:

• Hybrid outputs with 6 Ethernet ports and 3 fiber optic outputs (S6F).
• Supports up to 4096×1536 pixels, ideal for curved or irregular screens.
• USB 2.0 ports for firmware updates and synchronization.

Unique Advantage: Compact 1U chassis design saves rack space.

Best For: Mid-sized projects like shopping mall displays or control rooms.

Download Product Manual

3.2 Receiver Cards

Receiver cards decode signals and control individual LED panels.

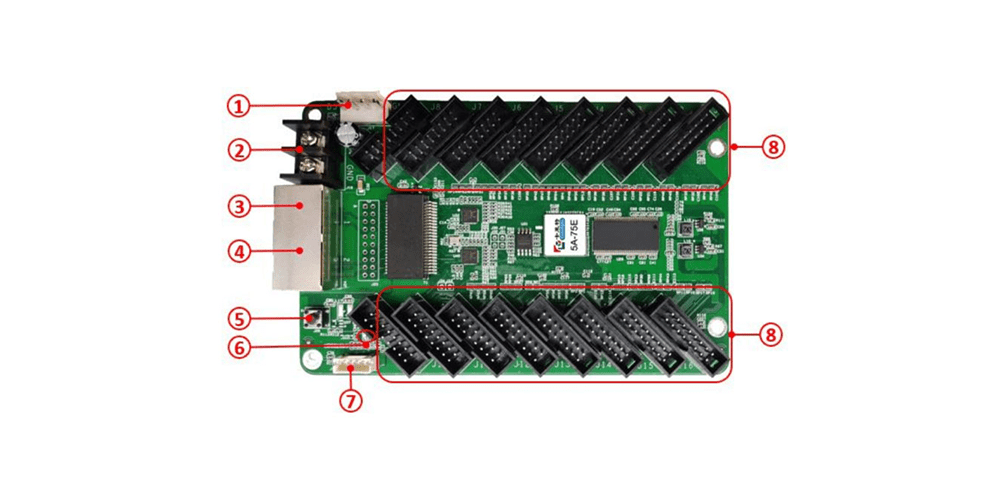

5A-75E/5A-75B

Key Features:

• Cost-effective design with integrated HUB75B interface.
• Plug-and-play setup for easy installation.
• Wide compatibility with standard LED modules.

Unique Advantage: Lightweight (94g) and compact for retrofitting.

Best For: Fixed installations like conference room displays or digital menu boards.

Download Product Manual

3.3 Colorlight LED Control System Software

iSet Software

This powerful tool allows precise management of LED displays, enabling parameter adjustments, color calibration, and content scheduling. Its intelligent features support multi-screen control and effect customization.

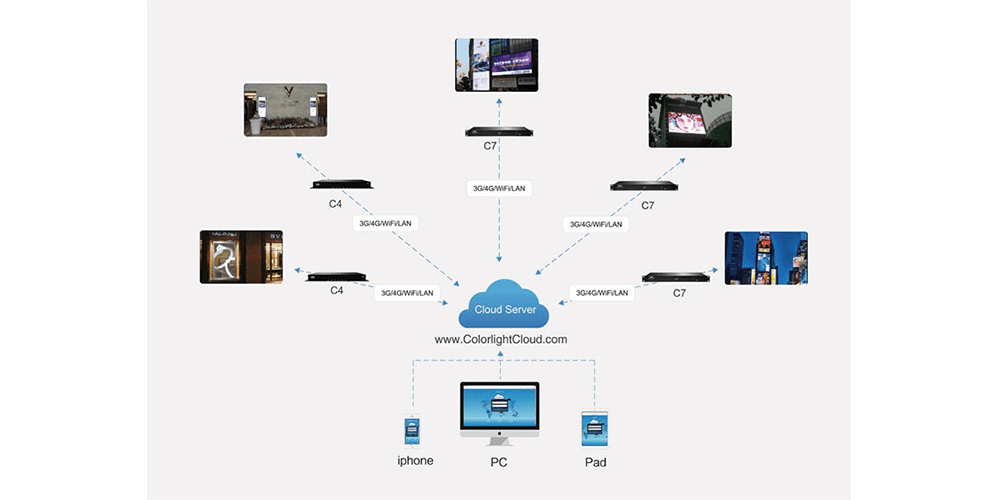

Colorlight Cloud

A cloud-based platform for remote monitoring and management, Colorlight Cloud lets users update content and check display status from anywhere, ideal for large-scale networked systems.

Colorlight LEDVISION

With a user-friendly interface, LEDVISION simplifies content management and control for various LED projects, offering robust functionality for seamless operation.

Download Product Manual

Colorlight LED Controller is versatile enough for a wide range of applications, delivering stability and high performance in demanding environments.

4.1 Outdoor Advertising Screens

With high brightness and weather resistance, Colorlight controllers enable real-time content updates and remote management for billboards and public displays.

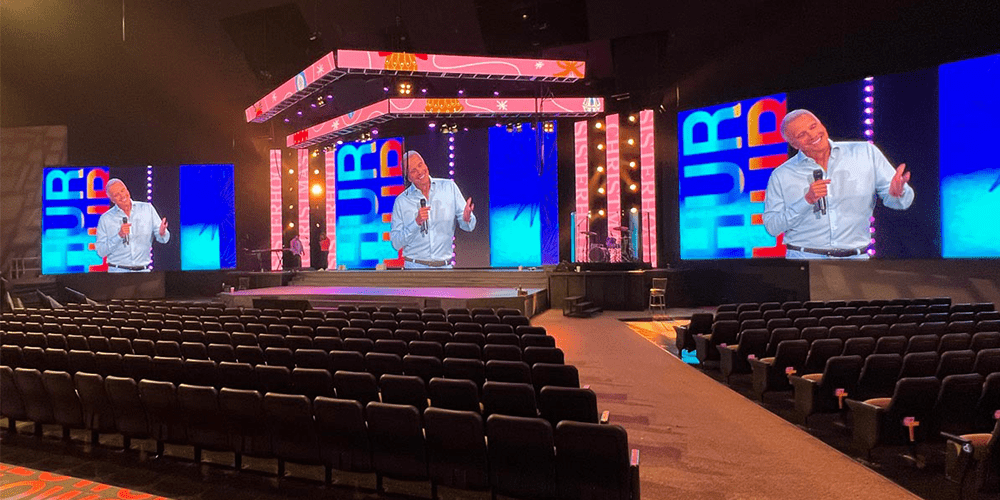

4.2 Stage Background Screens

In concerts and events, they offer high refresh rates and color accuracy, creating immersive visual experiences that sync with live performances.

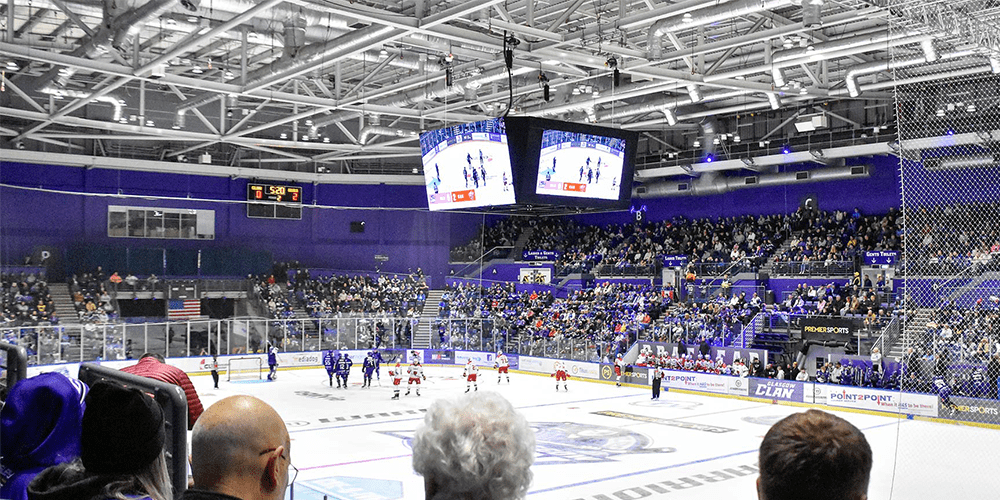

4.3 Sports Stadiums and Live Events

Used in scoreboards and large screens, these controllers provide real-time data updates with redundant systems for uninterrupted operation.

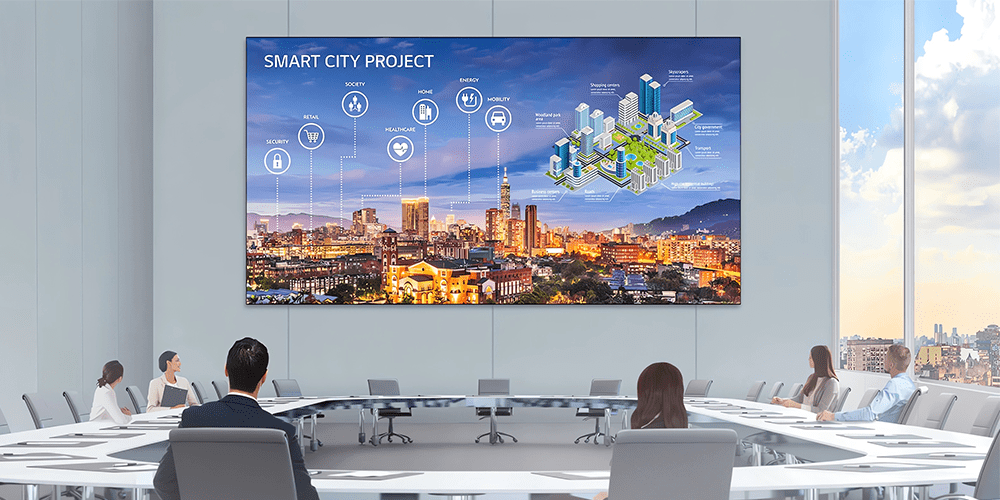

4.4 Conferences and Exhibitions

Supporting multi-screen splicing and multiple signal inputs, they ensure efficient content playback and dynamic displays in business settings.

Setting up a Colorlight LED Controller involves straightforward hardware and software steps to achieve optimal display results.

Hardware Connection

• Sending card connection: Connect the sending card to a computer via HDMI or DVI, then link it to the LED display’s receiving cards using network cables.
• Receiving card installation: Mount receiving cards on the LED modules to distribute signals; the number depends on the display size.
• Power and networking: Ensure stable power and network connections for seamless data transmission.

Software Settings

• Install LEDVISION software: Download from Colorlight’s official website and install it on your control device.
• Configure screen parameters:Use the software to set resolution, brightness, and color correction, with fine-tuning via iSet for individual units.
• Manage content: Import images, videos, or text, and schedule playback times for automated displays.

Display Calibration and Remote Control

• Brightness and color adjustment:Automatically calibrate settings based on ambient light using the controller’s features.
• Pixel compensation:Utilize intelligent correction tools in the software to optimize each pixel.
• Remote monitoring: Through Colorlight Cloud or LEDVISION, monitor screen status, update content, and receive alerts for issues like temperature or voltage fluctuations.

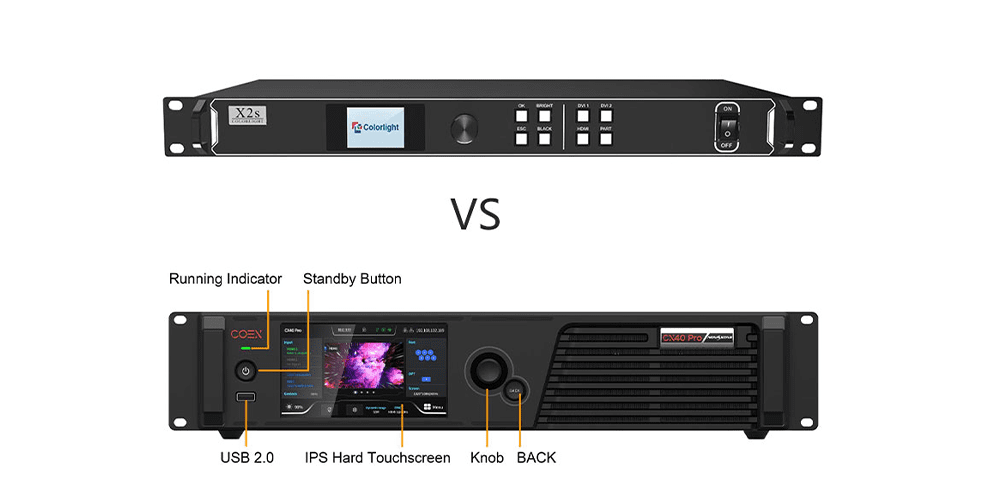

When comparing Colorlight and Novastar LED controllers, both brands offer robust solutions, but they cater to different needs.

Choosing the right Colorlight LED Controller depends on your specific project requirements. Keep these tips in mind to make an informed decision.

7.1 Key Considerations

• Assess project needs: Evaluate your display’s size, resolution, and application to select a suitable model, such as the X series for large venues or the Z series for outdoor ads.
• Check functionality and compatibility: Ensure the controller supports necessary inputs, multi-screen splicing, and sync features, and verify compatibility with your existing hardware.
• Review software capabilities: Opt for controllers with user-friendly software like LEDVISION for remote management and real-time monitoring.

7.2 Selection by Application Scenario

• Outdoor advertising: Choose the Z series for high brightness, weather resistance, and redundant backup to ensure stable operation.
• Stage performances and stadiums: The X or S series offer high refresh rates and low latency, perfect for dynamic visuals.
• Conferences and commercial displays: The A or C series provide HD output and flexible inputs, facilitating quick content adjustments.

The Colorlight LED Controller is a powerful and reliable solution for any LED screen, combining advanced technology with user-friendly features. From its high-resolution support and remote management capabilities to a diverse product range, it meets the demands of various applications, including advertising, events, and sports venues. By understanding its advantages, applications, and how to select the right model, you can leverage Colorlight to achieve stunning display results.
