Colorlight Z4 Pro Super Video Processor: Everything You Need to Know

In the rapidly evolving world of LED displays, achieving seamless visuals and real-time performance is crucial. The Colorlight Z4 Pro Super Video Processor stands out as a powerful solution for modern LED display systems, delivering exceptional reliability, precision, and flexibility. Whether you’re working in live events, broadcast studios, or large-scale installations, this advanced video processor ensures smooth, immersive visuals with cutting-edge features. This guide will explore its key features, technical specifications, applications, and more.

Table of Content

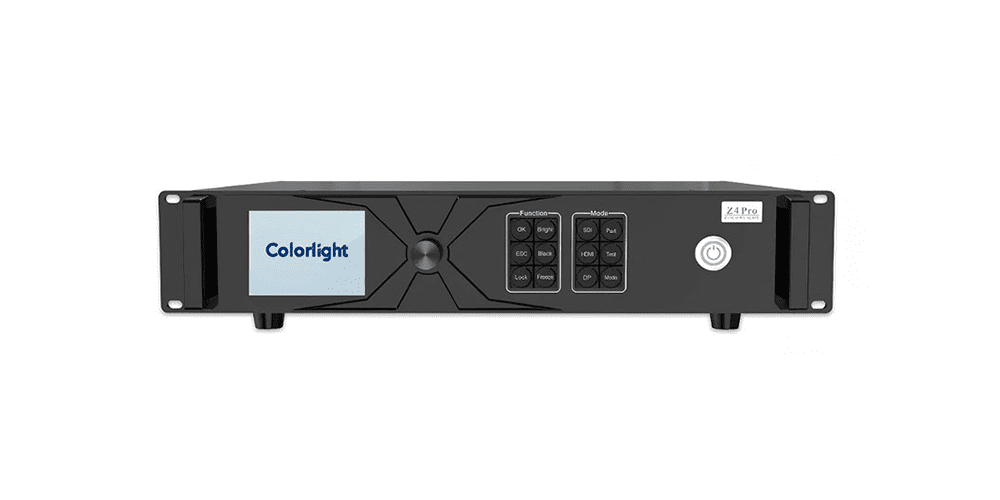

The Colorlight Z4 Pro is a high-performance LED video processor designed to act as both a sending and processing hub for LED display systems. It supports signal transmission to LED receiving cards while offering advanced video processing capabilities such as scaling, HDR conversion, multi-window layouts, and synchronization.

This processor is tailored for demanding environments where real-time visual performance, color accuracy, and system stability are critical. From concerts and broadcast studios to control rooms and immersive installations, the Colorlight Z4 Pro delivers unmatched versatility and precision.

• Maximum Pixel Capacity:With a pixel capacity of up to 13.1 million (8-bit@60Hz), the Z4 Pro can handle large UHD or multi-canvas setups, making it ideal for expansive LED video walls.
• HDR Support: The processor supports HDR10 and HLG, enabling high dynamic range visuals with deeper contrast and a more vibrant color gamut.

2.2 Massive Output & Dual Fiber Support

• 20 Gigabit Ethernet Ports:Equipped with 20 Neutrik etherCON ports, the Colorlight Z4 Pro ensures reliable data transmission across multiple LED panels.

• Dual 10G Fiber SFP+ Ports:For long-distance, high-bandwidth transmission, the Z4 Pro includes two 10G fiber ports that map seamlessly to the 20 network ports.
• Redundancy Features: The processor offers redundancy on Ethernet ports and controller-level fallback, ensuring uninterrupted operation even if one link fails.

2.3 Multi-Window & Layout Flexibility

• Up to 3 Independent Windows:The Colorlight Z4 Pro allows users to display live feeds, videos, and graphics simultaneously on a single canvas.
• Advanced Layout Tools:With cropping, scaling, drag-and-drop functionality, and window roaming, the Z4 Pro provides unparalleled flexibility for managing dynamic content.

2.4 Ultra-Low Latency & Genlock Sync

• One-Frame Delay or Less:The processor minimizes latency, making it perfect for live events and broadcast integration.
• Genlock Synchronization: Supporting bi-level and tri-level sync, the Colorlight Z4 Pro ensures precise alignment in multi-controller setups.

2.5 Color Calibration & Brightness Control

• Fine-Tuning Options: Users can adjust hue, saturation, contrast, brightness, and color temperature per channel for optimal color accuracy.
• Brightness Management:Network port grouping allows for granular control over brightness levels across large displays.

2.6 Web-Based Control & Virtual Pixel Technology

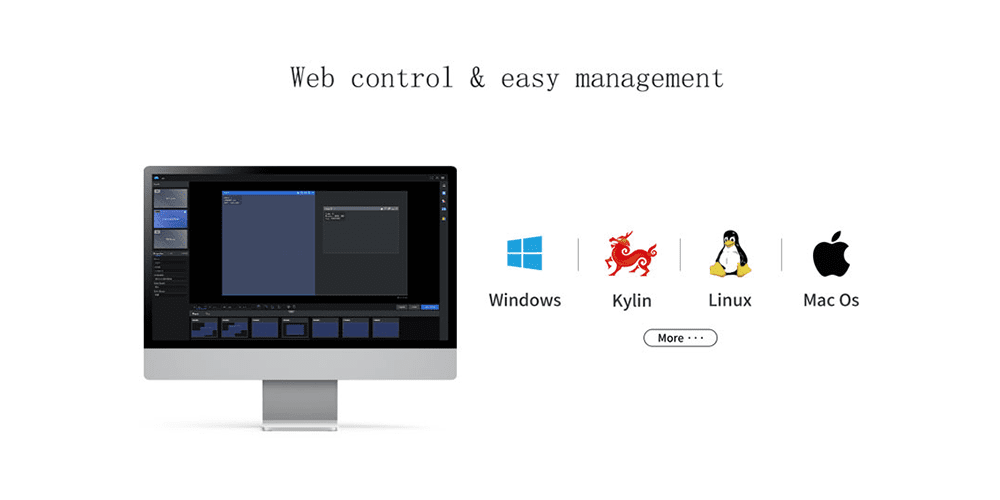

• Intuitive Interface:The Colorlight Z4 Pro features a web-based control panel accessible from any device running Windows, macOS, or Linux. No software installation is required.
• Virtual Pixel Technology:Built-in 3x/4x virtual pixel technology enhances image clarity on fine-pitch LED screens, transforming lower-resolution content into sharper visuals.

2.7 Rugged Build & Industrial Design

• Neutrik Connectors:These secure, dust-proof connectors ensure reliable performance in challenging environments.
• Dual Power Redundancy:Optional dual power supplies and an integrated fuse provide surge protection and continuous operation.
• Network Port Grouping:This feature allows partial system operation even during hardware failures, ensuring maximum uptime.

4.1 Live Events & Concerts

For stage backdrops, immersive designs, or LED curtains, the Colorlight Z4 Pro excels with its ultra-low latency, multi-window layout capabilities, and reliable synchronization.

The Colorlight Z4 Pro is priced at approximately $3,500 USD, though costs may vary based on region, supplier, and configuration. For bulk orders or discounts, contact authorized distributors or visit：ledcontrollercard.

Q1: Can the Colorlight Z4 Pro output to receiving cards directly?

Yes, the Z4 Pro acts as the sending controller itself—no additional sending card is needed.

Q2: Does it support 120Hz or higher refresh rates?

Yes, the Z4 Pro supports frame rates between 23.98 Hz and up to 240 Hz, depending on configuration.

Q3: How many LED panels can it drive?

Up to 13.1 million pixels (8-bit @ 60 Hz). For higher frame rates or bit depths, the usable pixel count is lower.

Q4: Does the Z4 Pro support fiber transmission?

Yes, it supports 2× 10G fiber SFP+ links for long-distance distribution.

Q5: Is the Z4 Pro suitable for small LED screens?

Yes, though its advanced features may be underutilized for simple setups, it still offers reliability and future-proofing.

The Colorlight Z4 Pro Super Video Processor is a robust, future-ready solution for LED display systems requiring low latency, HDR rendering, synchronized video, and scalable output. Whether for live production, broadcast, advertising walls, or immersive installations, the Z4 Pro combines advanced capabilities with industrial-grade reliability.

If your project demands precision, high visual fidelity, and operational dependability, the Colorlight Z4 Pro is an excellent investment. Explore its potential today and elevate your LED display projects to new heights.
