Enter the NovaStar H9, the latest innovation in video wall splicing technology. Tailored specifically for fine-pitch LED screens, the H9 combines exceptional image processing with advanced control capabilities, making it the ideal choice for industries demanding precision and reliability.

In this article, we’ll explore the NovaStar H9’s features, benefits, applications, and more. We’ll also dive into its diverse applications and guide you on downloading its manuals and software.

Table of Content

1.NovaStar H9 Processor Introduction

The NovaStar H9 represents the latest generation of video wall processors. Designed with versatility in mind, the H9 can function as a splicing processor that seamlessly integrates video processing and control or operate solely as a splicing processor, catering to a wide range of professional applications.

1.1 Features

The NovaStar H9 is equipped with a host of advanced features designed to deliver top-tier performance and unparalleled flexibility for fine-pitch LED displays.

1.1.1 Modular and Plug-In Design for Customization

（1）Flexible LED 4K Sending Cards:

  • H_20xRJ45 Sending Card: Supports up to 13,000,000 pixels.
  • H_16xRJ45+2xFiber Sending Card: Handles up to 10,400,000 pixels, with two OPT ports for duplicating Ethernet port outputs.
  • H_4xFiber Sending Card: Accommodates up to 20,800,000 pixels and features three working modes: independent, copy, and backup.

（2）Multi-Capacity Card Configurations:

  • 4x 2K×1K@60Hz
  • 2x 4K×1K@60Hz
  • 1x 4K×2K@60Hz

（3）Simplified Screen Setup: A single card and connector streamline configuration processes.

（4）Hot-Swappable Design: Input and output cards can be replaced without system downtime.

1.1.2 Versatile Display Configurations

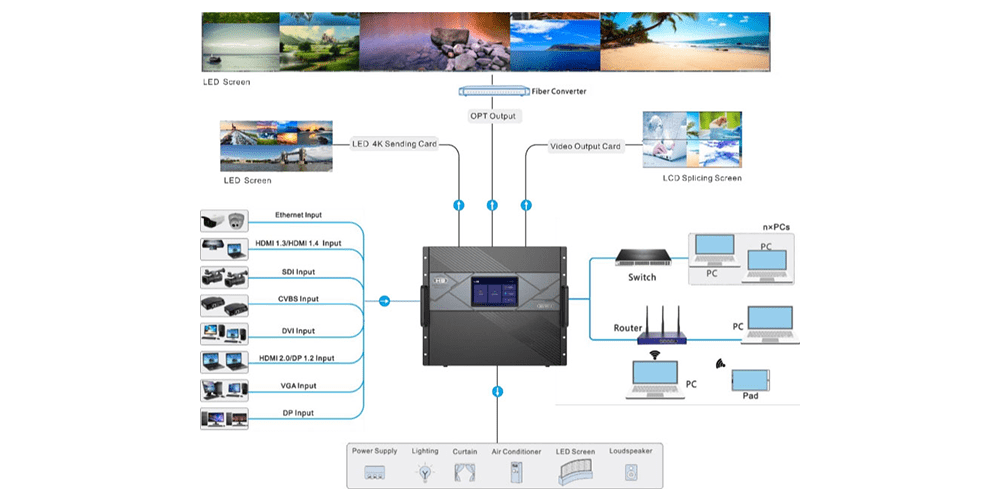

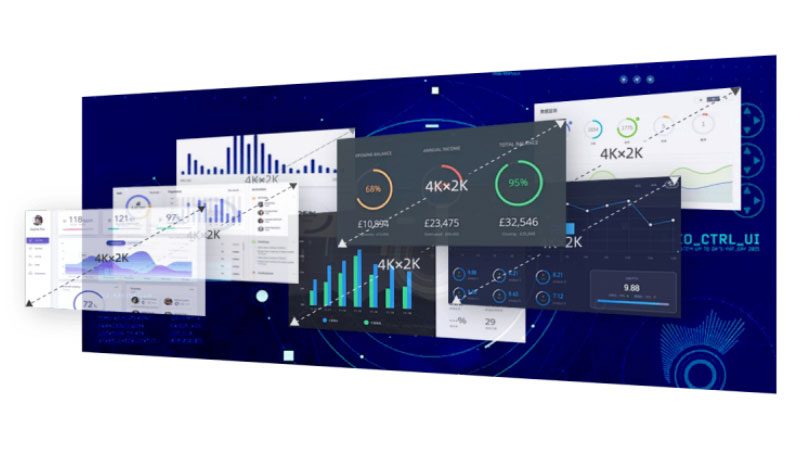

1）Multi-Layer Display Options:

  • Supports up to 16x 2K layers, 8x DL layers, or 4x 4K layers on a single card.
  • Layers can span connectors without reducing quantity.

2）Customizable High-Definition Scrolling Text:

Personalize content, scrolling direction, speed, and style for notifications or slogans.

3）Preset Functionality:

  • Stores up to 2,000 presets, with seamless switching under 60ms and fade effects.
  • Scheduled playback of preset playlists, ideal for exhibitions, monitoring, and presentations.

4）Additional Customization：

  • OSD settings, including adjustable transparency.
  • Background image settings (BKG) with max resolutions of 15K×8K that don’t consume layer resources.
  • Input source cropping and renaming capabilities.
  • Support for HDR and 10-bit video processing for enhanced image quality.
  • Comprehensive color adjustment options, including brightness, contrast, saturation, hue, and Gamma.
  • XR scenario control and 3D visual effects with NovaStar’s EMT200 3D emitter.
  • Low Latency: Reduces latency to as little as 1 frame between input and receiving cards.

1.1.3 Convenient Web-Based Control

Intuitive Web Interface:

  • Real-time response with adaptive 1000M/100M network control.
  • Multi-user collaboration for efficient workflows.

Comprehensive Monitoring:

  • View input and output statuses via the Web interface.
  • Firmware updates are accessible directly through the Web.

App Integration: Supports control via the Ark Visualized Management and Control Platform.

1.1.4 Enhanced Stability and Reliability

Status Monitoring:

  • Automatic hardware monitoring for fan speed, temperature, voltage, and operational status.
  • Fault detection and alarms for rapid issue identification.

Power Redundancy:

  • Optional redundant power supplies increase system reliability.

Backup Systems:

  • Backup between devices and LED 4K sending cards ensures uninterrupted performance.

1.2 Design and Appearance

The NovaStar H9 boasts a sleek and professional design, tailored for high-end video wall splicing applications. Its appearance combines practicality with aesthetics, blending seamlessly into any control room or AV environment.

1.2.1 Front Panel

NovaStar H9

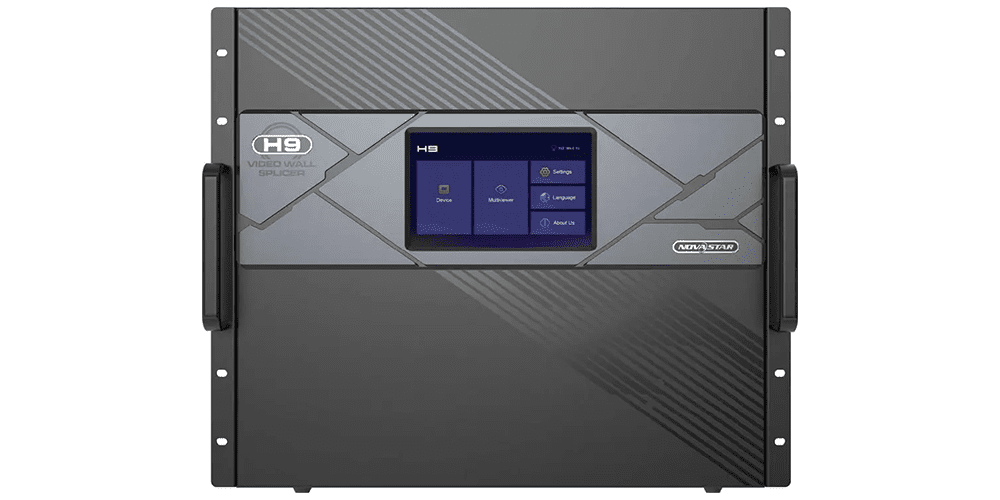

The front panel features a stylish yet functional design with clean lines and robust construction. At the center, a vibrant LCD touchscreen display provides a user-friendly interface for system monitoring and configuration. This intuitive control panel simplifies operations, offering quick access to device settings, multi-layer management, language preferences, and more. The handles on both sides of the panel add to its practicality, allowing for easy installation and portability.

1.2.2 Rear Panel

NovaStar H9

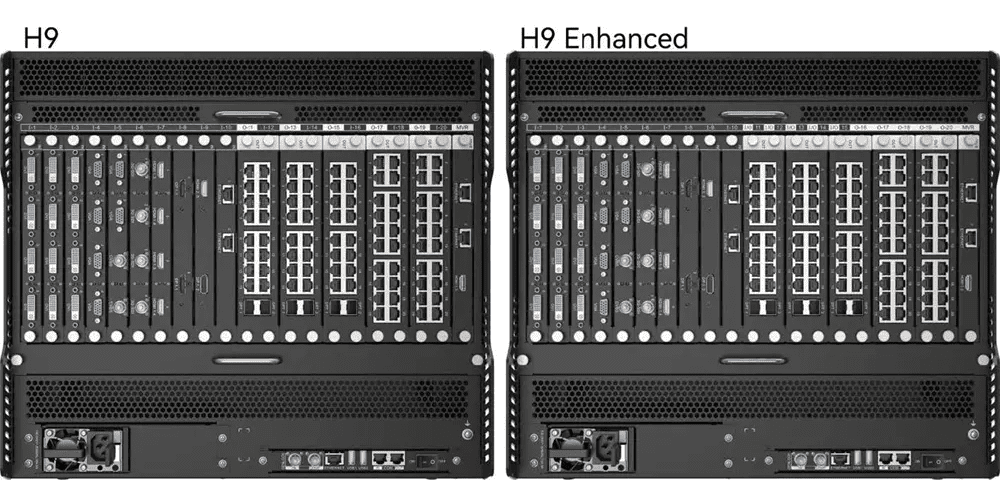

The rear panel highlights the modular and scalable nature of the H9. It is equipped with hot-swappable input and output cards, ensuring maximum flexibility and customization. The modular layout supports a variety of connections, including HDMI, DP, DVI, and more. The H9 Enhanced version provides additional card slots, enabling even greater input and output capabilities.

1.3 Applications

  • Events and Exhibitions:Ideal for seamless content display on large screens or video walls.
  • Broadcasting and Media:Supports synchronized video feeds for live broadcasts.
  • Corporate and Educational: Helps visualize performance data and research findings.
  • Control and Command Centers: Used in energy, military, and public security for real-time data display and decision-making.
NovaStar H9

2.NovaStar H9 Price

The NovaStar H9 is priced at approximately $1600. For the most accurate and up-to-date pricing information, we recommend contacting EagerLED.

3.NovaStar H9 Specifications

NovaStar H9
Specification H9 H9 Enhanced
Rack Unit 9U 9U
Max. Input Cards 15 15
Max. Input Channels 60 60
Max. Output Cards (Video output card) 5 10
Max. Output Channels (Video output card) 20 40
Max. Output Cards (LED 4K sending card) 5 5
Max. Loading Capacity (LED 4K sending card) 65 million pixels 65 million pixels
Max. Loading Capacity (H_4xfiber sending card) 104 million pixels 208 million pixels
Max. Layers (Video output card) 80 160
Max. Layers (LED 4K sending card) 80 80
Power Connector 100-240V~, 50/60Hz, 10A-5A 100-240V~, 50/60Hz, 10A-5A
Power Consumption 450 W 450 W
Operating Temperature 0°C to 45°C 0°C to 45°C
Operating Humidity 0% RH to 80% RH, non-condensing 0% RH to 80% RH, non-condensing
Storage Temperature -10°C to +60°C -10°C to +60°C
Storage Humidity 0% RH to 95% RH, non-condensing 0% RH to 95% RH, non-condensing

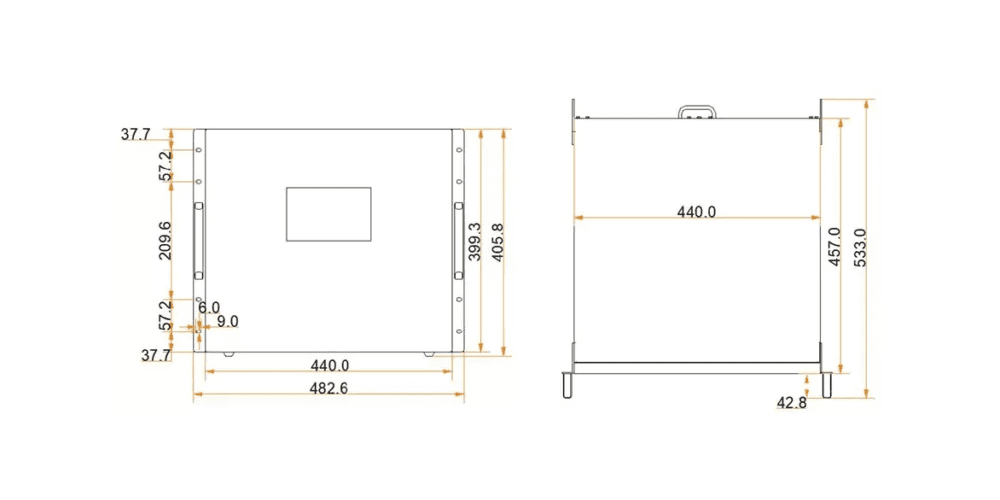

Dimensions 482.6 mm × 533.0 mm × 405.8 mm 482.6 mm × 533.0 mm × 405.8 mm
Net Weight 27.2 kg (chassis) 27.2 kg (chassis)
Gross Weight 35.3 kg (chassis) 35.3 kg (chassis)
Noise Level (typical at 25°C / 77°F) ＜45 dB (A) ＜45 dB (A)
Packing Box Dimensions 780 mm × 680 mm × 590 mm 780 mm × 680 mm × 590 mm

4.H Series Comparison

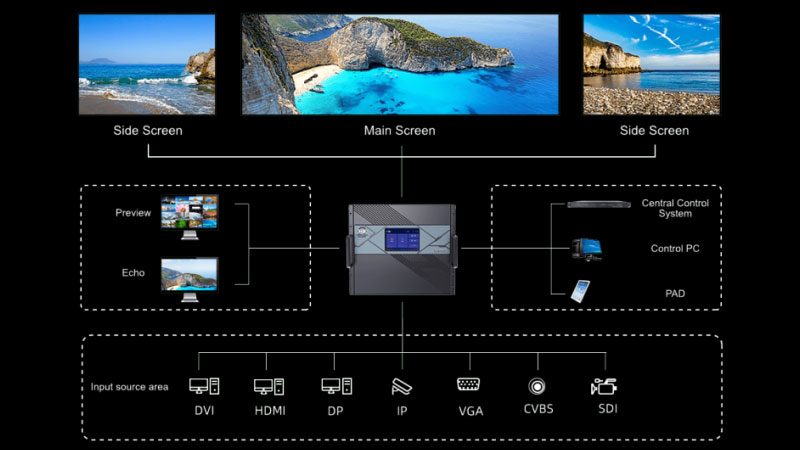

The NovaStar H Series represents a flagship solution in video splicing and control, designed specifically for fine-pitch LED applications. As an all-in-one processor and controller, it simplifies system design, enhances performance, and offers unmatched flexibility.

4.1 H Series Features

All-in-One Integration

Combines video splicing and display control in a single unit, streamlining the system architecture.

Unmatched Flexibility

Supports multiple layers with highly customizable arrangements.

True 4K Processing

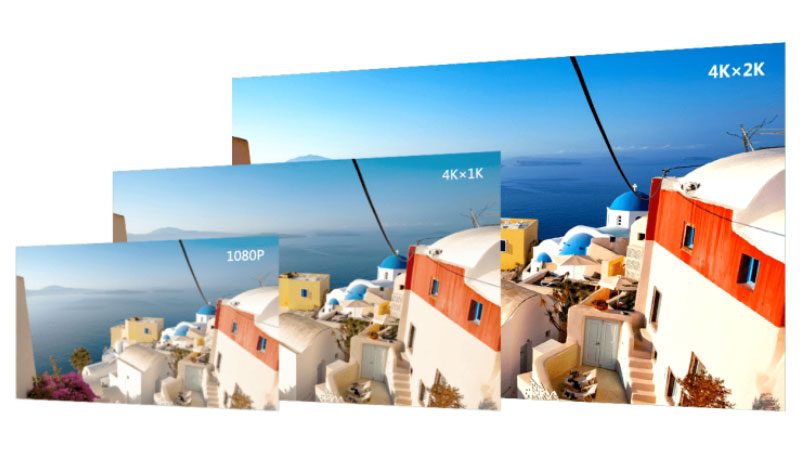

Supporting resolutions up to 4K × 2K @ 60Hz with 10-bit color depth.

Exceptional Image Quality

Offers HDR support, wide color gamut compatibility, high contrast, and precise color reproduction.

Robust Stability

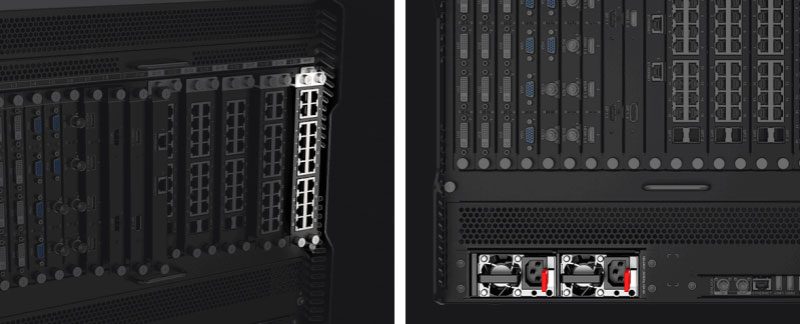

Hot-Swappable Modules: Safe and seamless replacement of input and output cards.

Redundant Power Supply: Industrial-grade dual power modules provide uninterrupted operation for critical applications.

4.2 Products Comparison

Model NovaStar H2 NovaStar H5 NovaStar H9 NovaStar H9 Enhanced NovaStar H15 NovaStar H15 Enhanced NovaStar H20
Rack Unit 2U 5U 9U 9U 15U 15U 20U
Max. Loading Capacity (H_20xRJ45 sending card) 26 million pixels 39 million pixels 65 million pixels 65 million pixels 130 million pixels 208 million pixels 260 million pixels
Max. Loading Capacity (H_4xfiber sending card) 41.6 million pixels 62.4 million pixels 104 million pixels 208 million pixels 208 million pixels 332.8 million pixels 416 million pixels
Max.Output Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector)

Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port)

Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
Max. Input Cards 4 10 15 15 30 30 40
Max. Output Cards 2 3 5 10 10 16 20
Irregular Mosaic √ √ √ √ √ √ √
Max. Layers 16 layers per card 10 layers per card 16 layers per card
Max. Presets 2000 (Preset playlist playback supported)
Permission Management √ √ √ √ √ √ √
10bit and HDR √
Input and Output Monitoring (H_2xRJ45+1xHDMI1.3 preview card required) √
Optional Power Supply / √
Central Control TCP/IP and RS232

5.NovaStar H9 Manual and Software Download

For comprehensive support, including the user manual and firmware resources for the NovaStar H9, visit our NovaStar Software page. This page hosts all essential NovaStar resources, ensuring you have everything you need for seamless LED display operation.

Additionally, our NovaStar RCFG File Download page offers free access to NovaStar RCFG configuration files, helping you easily set up and optimize your system. Make sure to visit these pages for the latest updates and tools to enhance your experience with the NovaStar H9 products.

6.Installation Guide

Proper installation of the NovaStar H9 is essential for ensuring optimal performance and safety. Below are detailed instructions and considerations to guide the installation process.

6.1 Mounting on a Rack

When installing the NovaStar H9 in a rack:

  • Secure Fastening: Use a minimum of 8 screws, at least M5*8 in size, to firmly secure the unit to the rack.
  • Weight Support:Ensure that the rack is capable of bearing at least four times the total weight of all the equipment mounted on it.

6.2 Installation Considerations

  • Elevated Operating Ambient:Ensure the installation environment aligns with the manufacturer’s specified maximum operating temperature (Tma).
  • Reduced Air Flow:Avoid obstructing ventilation to prevent overheating and maintain safe operation.
  • Mechanical Loading: Distribute the weight evenly when mounting equipment in the rack.
  • Circuit Overloading:Verify that the power supply circuit can handle the additional load introduced by the H9.
  • Reliable Earthing:Maintain a reliable grounding connection for the H9 and any other rack-mounted equipment.

7.FAQs about NovaStar H9

Q1:How big is the NovaStar H9?

The NovaStar H9 measures 482.6 mm × 533.0 mm × 405.8 mm (width × depth × height) and occupies 9U rack space in a standard rack.

Q2:What is the difference between NovaStar H2 and H5?

The NovaStar H9 is designed for large-scale applications with higher input/output channel capacity and support for up to 208 million pixels.

Q3:Does the NovaStar H9 support 4K resolution?

Yes, the NovaStar H9 supports 4K resolution inputs and outputs, offering three types of LED 4K sending cards with varying capacities.

Q4:What is the maximum loading capacity of the H9?

The H9 can load up to 20,800,000 pixels using its H_4xFiber sending card, supporting ultra-large LED screens.

Q5:Does the H9 support HDR content?

Yes, the H9 is compatible with HDR10 and HLG standards, providing enhanced color and image quality.

Q6:Is redundancy supported in the H9?

Yes, the H9 offers device redundancy, backup between LED 4K sending cards, and optional redundant power supplies for increased reliability.

8.Conclusion

The NovaStar H9 sets a new standard in video wall processing with its advanced features, modular design, and exceptional performance. Tailored for fine-pitch LED applications, it excels in both splicing and display control, offering unmatched flexibility, reliability, and image quality.
