NovaStar MX2000 Pro LED display controller：Specs, Price and Download

In the realm of professional LED display controllers, the NovaStar MX2000 Pro stands out as a versatile and powerful solution tailored for large-scale installations. Designed as part of the COEX control system series, this controller offers exceptional performance with 12-bit color depth, real-time multi-screen scaling, and support for up to 8K resolution. Whether you’re managing an xR studio, TV production, or live events, the NovaStar MX2000 Pro delivers premium image quality and reliability.

In this comprehensive review, we’ll delve into its specifications, pricing, advanced features, and downloadable resources to help you understand why it’s a top choice for demanding applications.

Table of Content

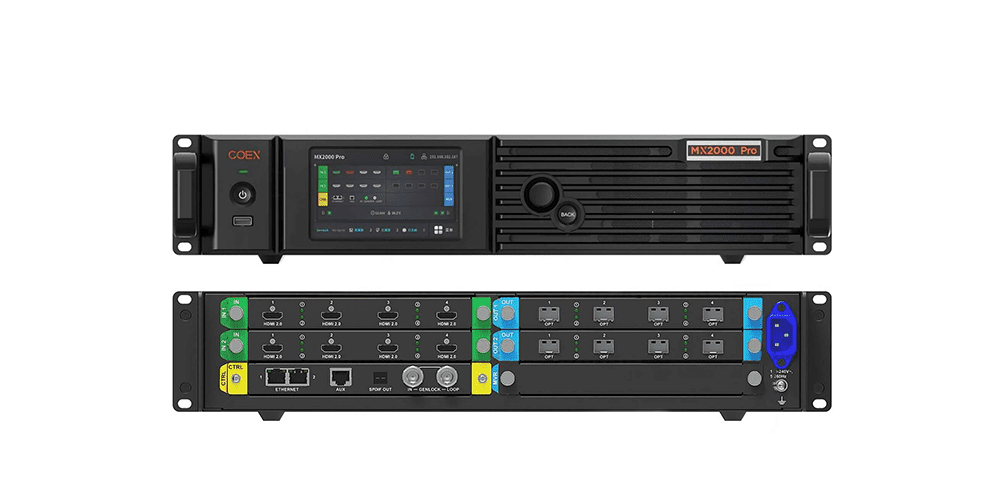

The NovaStar MX2000 Pro is a professional-grade 8K LED display controller designed for large-screen configurations. Its modular card-based architecture allows for flexible input and output configurations, making it adaptable to various project requirements. With a compact 2U size, it supports up to 8x 4K@60Hz or 4x 8K@30Hz video inputs, boasting a maximum load capacity of 35.38 million pixels.

Key highlights of the NovaStar MX2000 Pro include:

• 12-bit Color Depth: Ensures true-to-life colors with minimal banding.
• Frame Rate Capability:Supports frame rates up to 480 Hz for ultra-smooth playback.
• HDR Supportability:Compliant with HDR10, HLG, SMPTE ST 2084, and SMPTE ST 2086 standards.
• Zero-Frame Latency: Achieves less than 1 ms latency, ideal for real-time applications.

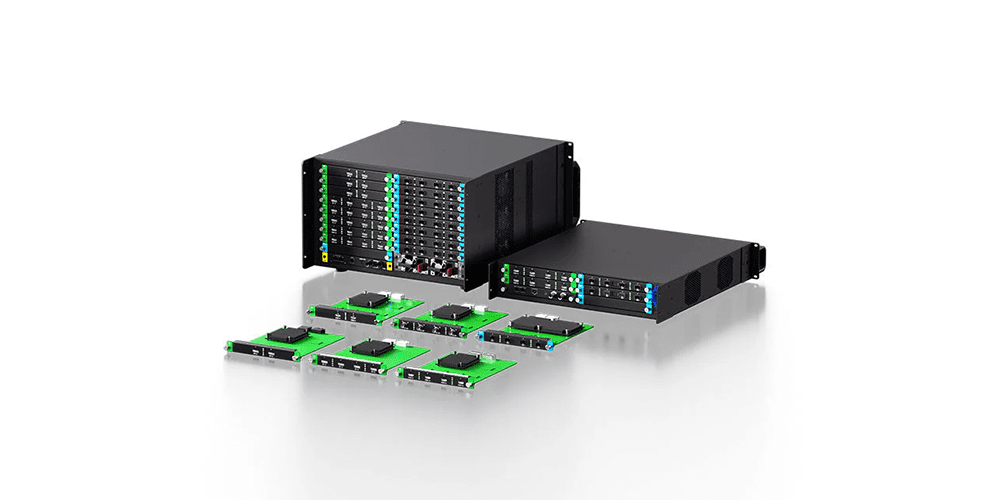

• Modular Design:Two input card slots and two output card slots allow for extensive customization.

2.1 High Signal Transmission Quality

The NovaStar MX2000 Pro excels in delivering stable and high-quality signal transmission, even under challenging conditions. It supports resolutions up to 8K@30Hz and 4K@120Hz, ensuring smooth playback without tearing or stuttering. The controller also boasts zero-frame latency (less than 1 ms), making it perfect for real-time applications like live broadcasts and interactive installations.

2.2 Modular Design

2.3 Advanced Color Processing

Color accuracy is critical in professional displays, and the NovaStar MX2000 Pro doesn’t disappoint. It offers:

• 12-bit Color Depth: Provides true-to-life colors with minimal banding.
• 14-Channel Color Correction: Fine-tune hue, saturation, and brightness for black, white, and standard RGB-derived colors.
• 3D LUT Support: Use external .cube files to adjust video source colors with pinpoint accuracy.

2.5 Real-Time Monitoring

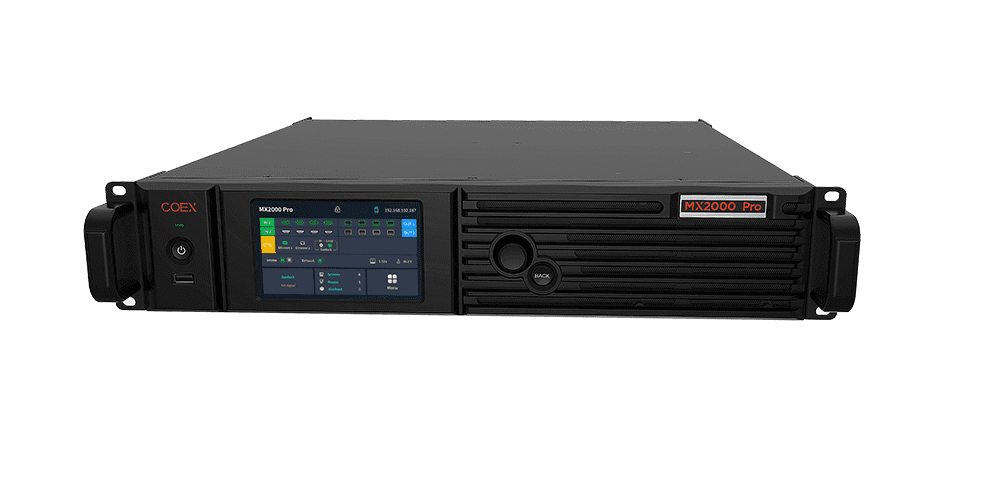

With built-in diagnostic tools and automated alerts, the NovaStar MX2000 Pro ensures uninterrupted operation. Its LCD touchscreen provides instant access to device status, input/output monitoring, and error logs, empowering users to troubleshoot issues quickly.

The price of the NovaStar MX2000 Pro varies depending on the project, region, and included accessories.

For an accurate quote, the best way is to contact us directly through our website: leddisplayprice.com

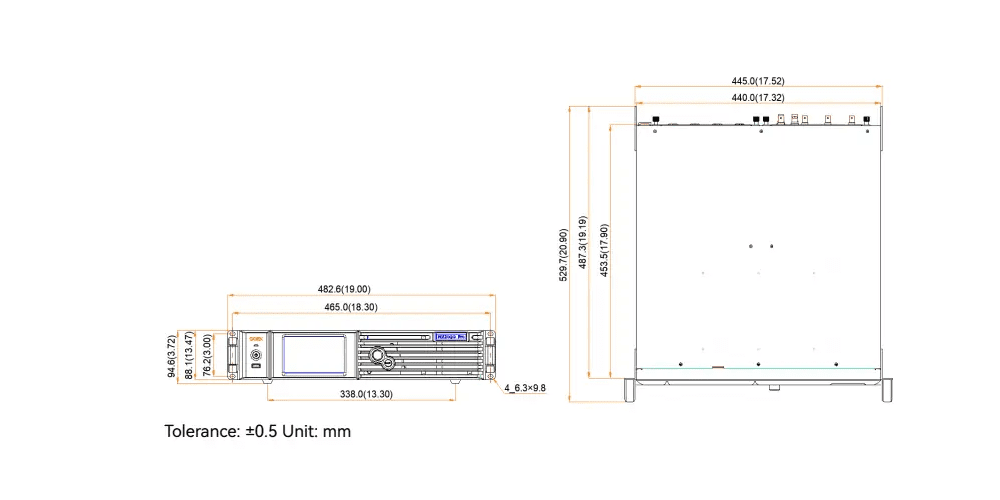

Below is a detailed breakdown of the NovaStar MX2000 Pro technical specifications:

5.1 Real-Time Previewing and Monitoring

The NovaStar MX2000 Pro supports real-time previewing and monitoring of video source inputs and LED screen display status. This feature is invaluable for live events, where operators need to ensure seamless transitions and accurate visuals.

5.2 Frame Rate Adaptive Technology

The controller adjusts display effects for varying frame rates (23.98 Hz to 480 Hz), ensuring consistent brightness and color temperature across different content types. This is particularly useful in multi-angle camera shooting scenarios, where maintaining image quality at high frame rates is critical.

5.3 Shutter Fit Functionality

The shutter fit feature automatically adjusts driver IC parameters according to the camera shutter angle, addressing issues like black lines, grayscale addition, and grayscale loss during filming. This ensures optimal results in xR and virtual production environments.

5.4 Frame Multiplication

The NovaStar MX2000 Pro supports frame interpolation and frequency multiplication, enabling simultaneous output of multiple frames with different backgrounds. This feature is ideal for post-production adjustments and multi-camera setups.

The versatility of the NovaStar MX2000 Pro makes it suitable for a wide range of applications:

• Rental Services:Ideal for large events requiring high-resolution displays and seamless transitions.
• xR/VP Studios: Delivers pixel-perfect backgrounds for immersive virtual production environments.
• TV Production: Ensures consistent color and brightness for broadcast-quality visuals.
• E-Sports Events:Supports high frame rates and low latency for competitive gaming setups.
• Exhibition Halls: Powers large fixed installations with irregular screen shapes.

• NovaStar MX2000 Pro Specifications
• NovaStar MX2000 Pro User Manual
• NovaStar MX2000 Pro Firmware

Q1.What is the maximum resolution supported by the NovaStar MX2000 Pro?

The NovaStar MX2000 Pro supports resolutions up to 8192×4320@30Hz for 8K displays and 4096×2160@60Hz for 4K displays.

Q2.Can I use the NovaStar MX2000 Pro without VMP software?

While basic operations can be performed using the front panel touchscreen, the Vision Management Platform (VMP) software provides advanced configuration and monitoring capabilities, making it highly recommended for full functionality.

Q3.Does the NovaStar MX2000 Pro support redundancy?

Yes, the NovaStar MX2000 Pro supports redundancy at multiple levels, including hot backup between devices, output cards, and Ethernet ports, ensuring uninterrupted operation.

The NovaStar MX2000 Pro redefines what’s possible in LED display control. With its ability to handle 35.38 million pixels, process 8K inputs, and manage multi-layered displays, it caters to the most demanding applications. Features like HDR support, end-to-end backup, and low-latency output further solidify its reputation as a reliable and versatile tool for professionals.

Whether you’re designing immersive xR environments, powering stadium-sized LED walls, or ensuring 24/7 reliability in command centers, the NovaStar MX2000 Pro rises to the challenge. Its industrial-grade casing and rigorous stability testing guarantee dependable performance under extreme conditions.

For more information, user manuals, or firmware updates, please visit the NovaStar Download Page. Enhance your LED project experience with the NovaStar MX2000 Pro—the ultimate 8K LED control solution.
