NovaStar MX40 Pro Manual: Comprehensive Guide(2025)

In the ever-evolving landscape of LED display technology, the NovaStar MX40 Pro stands out as a beacon of innovation and reliability. Designed for professionals in live events, corporate presentations, and retail displays, this all-in-one LED display controller redefines what’s possible with seamless video playback and exceptional image quality.

The NovaStar MX40 Pro is part of NovaStar’s groundbreaking COEX series, which integrates advanced hardware and software to deliver unparalleled visual experiences. Whether you’re managing complex setups or fine-tuning display effects, the MX40 Pro ensures every pixel shines bright and clear. Let’s explore what makes this device a game-changer.

Table of Content

1.1 NovaStar MX40 Pro

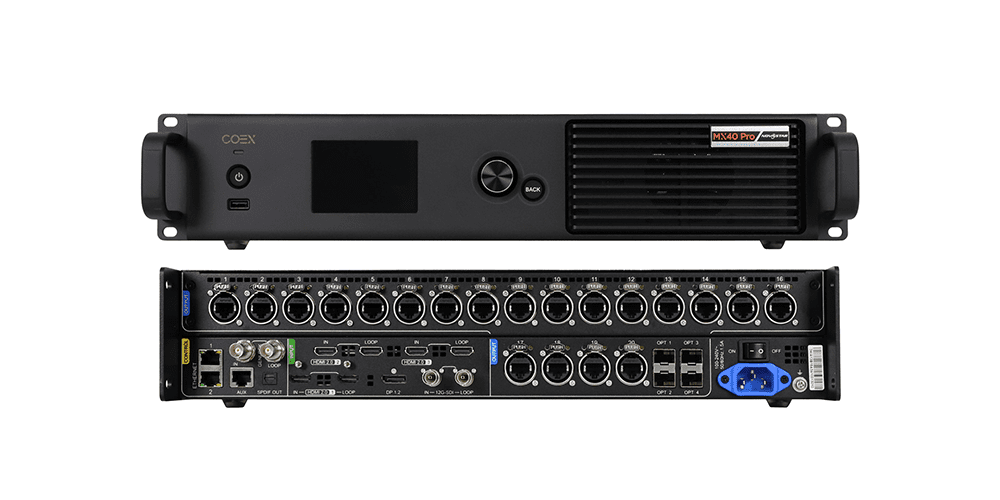

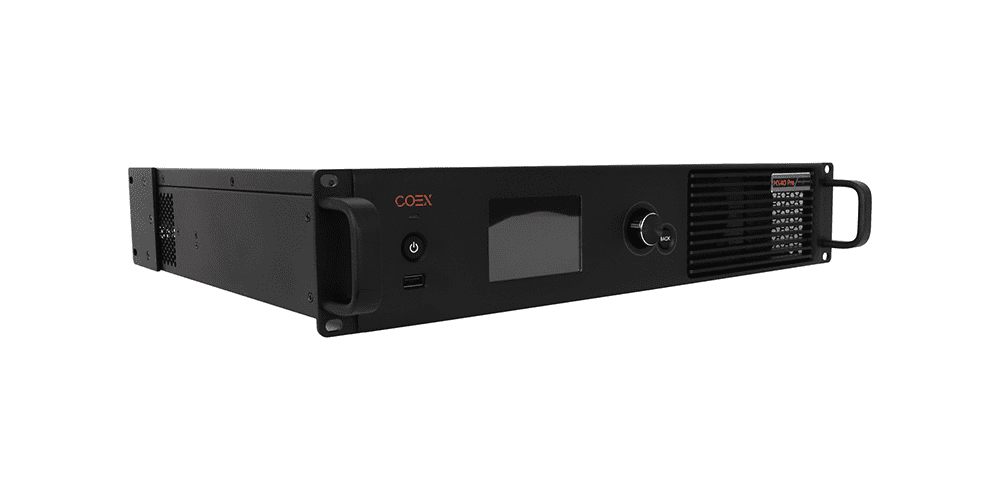

At its core, the NovaStar MX40 Pro is a high-performance all-in-one LED display controller designed to handle the most demanding applications. It supports up to 9 million pixels across 20 Gigabit Ethernet ports and 4x 10G optical ports, making it ideal for large-scale installations. The MX40 Pro also integrates seamlessly with NovaStar’s Vision Management Platform (VMP) software, offering intuitive control over screen configurations, display effects, and defect processing.

1.2 COEX Series

The NovaStar COEX series represents the future of LED display solutions. By combining cutting-edge hardware with intelligent software, the COEX series delivers stunningly vivid images and crystal-clear clarity. Its intuitive interface simplifies complex tasks, allowing users to effortlessly manage even the most intricate setups.

The NovaStar MX40 Pro is priced at approximately $5200. However, the final price may vary depending on specific configurations and requirements. For an accurate quote for your project, please visit our website: ledcontrollercard. There you can find detailed information on NovaStar products and consult with our expert team to ensure you get the best solution.

3.1 Solution Details

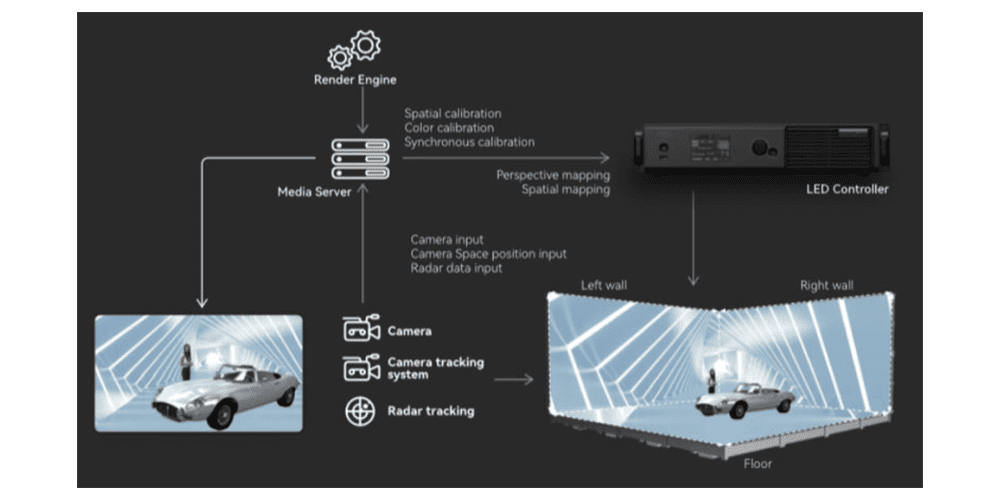

In the realm of extended reality (xR) virtual shooting, the MX40 Pro plays a pivotal role. It addresses common challenges such as scanning lines, color distortion, and inconsistent color rendering from different angles. When paired with NovaStar’s A10s Pro receiving card and VMP software, the MX40 Pro forms a comprehensive xR virtual shooting control system.

3.2 Advantages

• Enhanced Visual Quality:Eliminates issues like color distortion and scanning lines, ensuring Hollywood-level visuals.
• Seamless Integration: Works harmoniously with VMP and A10s Pro for streamlined operations.
• Efficient Power Consumption: Reduces power usage by up to 20% while improving dynamic brightness and detail clarity.
• Flexibility and Control: Offers precise adjustments for both input sources and output displays.
• Improved Workflow: Simplifies screen configuration and defect handling, making virtual shooting projects smoother and more efficient.

5.1 Rich Video Interfaces

• Multiple Input Interfaces:3x HDMI 2.0, 1x DP 1.2, 1x 12G-SDI
• Video Inputs: Supports 12-bit, 10-bit, and 8-bit video sources
• Outputs:20x Gigabit Ethernet ports, 4x 10G optical fiber ports
• Neutrik Ethernet Outputs:Ensures reliable data transmission.

5.2 Revolutionary Image Quality

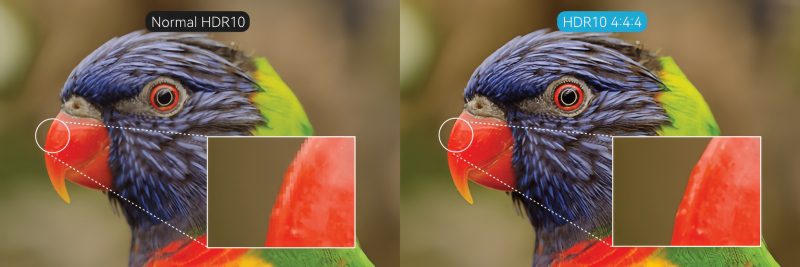

• 4K@60Hz 10bit 4:4:4 Solution:Elevates HDR applications to new heights.
• Advanced Black Level and Contrast Functions:Fine-tunes details in both bright and dark areas.
• Color Replacement and Adjustment: Replace any color without affecting others; adjust hue, saturation, and brightness of 12 standard colors derived from black, white, and RGB.
• Curve Adjustment and 3D LUT Loading:Professional tools for achieving cinematic visuals.

5.3 Powerful Performance

• Dual Functionality:Switch between video control modes with ease.
• Multi-Layer Support: Supports four independent 4K layers, each capable of scaling 4K sources.
• High Frame Rate Support: Handles frame doubling, insertion, and adaptive rates up to 240Hz.
• Platform Control Via IP Port:Instant command transmission.
• Optimized Bandwidth Utilization: Maximizes bandwidth without rectangular frame limitations.

• NovaStar MX40 Pro Manual
• NovaStar MX40 Pro Specification
• NovaStar MX40 Pro Software

For more resources, please visit our NovaStar software LED display page.

Q1: What are the input options available for the MX40 Pro?

The MX40 Pro supports three types of inputs: 3x HDMI 2.0 (with loop through), 1x DP 1.2, and 1x 12G-SDI (with loop through). It also supports 12-bit, 10-bit, and 8-bit video inputs.

Q2: What is the maximum load capacity of the MX40 Pro?

The MX40 Pro has a load capacity of up to 9 million pixels, distributed across 20 Gigabit Ethernet ports and 4x 10G optical ports.

Q3: Does the MX40 Pro support HDR?

Yes, the MX40 Pro supports HDR10 and complies with SMPTE ST 2084 and SMPTE ST 2086 standards. It also supports HLG.

With its robust features, innovative design, and seamless integration capabilities, the NovaStar MX40 Pro is undoubtedly a leader in the world of LED display controllers. Whether you’re working on an xR virtual shoot or managing a large-scale installation, the MX40 Pro ensures that every detail is handled with precision and care. Explore its potential today!
