NovaStar MX6000 Pro Review: Full Features, Specs, and Performance Guide

In the world of professional LED display controllers, the NovaStar MX6000 Pro stands out as a top-tier solution designed for large-scale installations and high-performance applications. Whether you’re managing an xR studio, a live event, or a massive exhibition hall, this controller delivers exceptional image quality, seamless scalability, and advanced features that cater to even the most demanding environments.

In this comprehensive review, we’ll explore the full range of capabilities, specifications, and performance aspects of the MX6000 Pro, helping you understand why it’s a game-changer in the LED display industry.

Table of Content

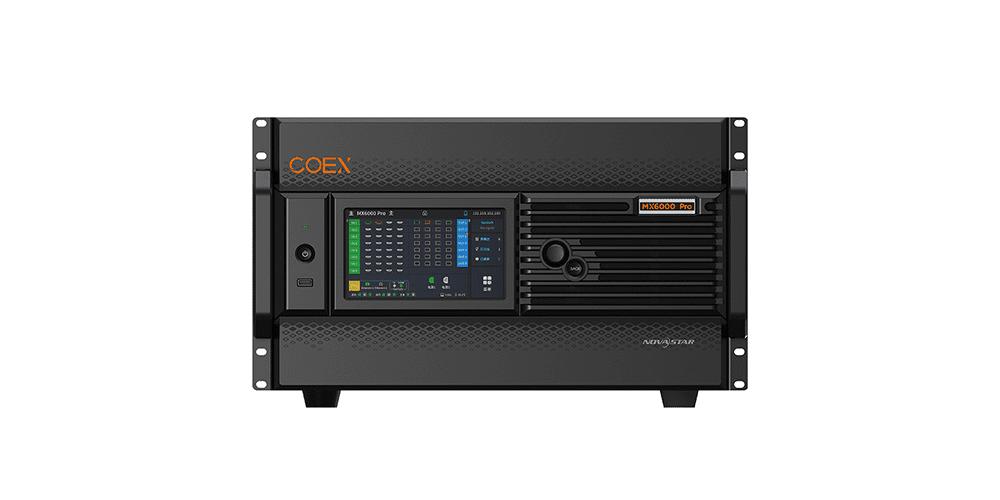

The NovaStar MX6000 Pro is part of the COEX control system series, offering an impressive array of features tailored for 8K LED displays. With support for 12-bit color depth, 360 Hz frame rates, real-time multi-screen scaling, and HDR compatibility, this controller ensures unparalleled precision in brightness control and color fidelity. Its modular card-based design allows for flexible configurations, making it highly adaptable to various input and output requirements.

Key highlights of the MX6000 Pro include:

• Maximum Load Capacity: Up to 141 million pixels.
• Input Options: Supports six types of input cards, including HDMI 2.1, DP 1.4, and 12G-SDI.
• Output Flexibility: Two types of output cards (4x 10G fiber and 1x 40G fiber) enable both 1G and 5G bandwidth solutions.
• Advanced Features: Seam correction, 14-channel color correction, 3D LUT support, and low-latency processing.

This device is ideal for rental services, TV production, eSports events, and other scenarios requiring premium image quality and reliability.

2.1 High Signal Transmission Quality

The MX6000 Pro excels in delivering stable and high-quality signal transmission, even under challenging conditions. It supports resolutions up to 8K@30Hz and 4K@120Hz, ensuring smooth playback without tearing or stuttering. The controller also boasts zero-frame latency (less than 1 ms), making it perfect for real-time applications like live broadcasts and interactive installations.

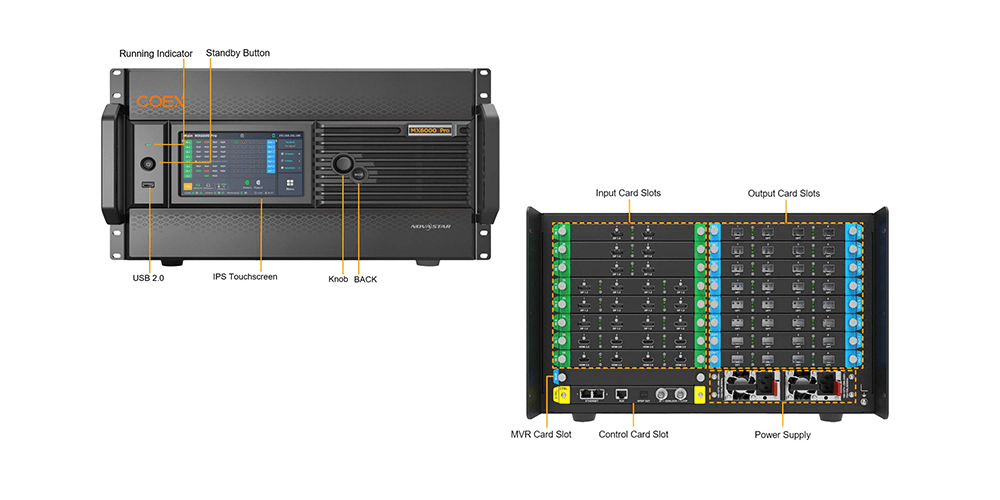

2.2 Modular Design

One of the standout features of the MX6000 Pro is its modular architecture. Users can configure up to eight input cards and eight output cards, allowing for extensive customization based on specific project needs. This flexibility extends to its ability to handle both 1G and 5G Ethernet outputs, accommodating different bandwidth requirements.

2.3 Advanced Color Processing

Color accuracy is critical in professional displays, and the MX6000 Pro doesn’t disappoint. It offers:

• 12-bit Color Depth: Provides true-to-life colors with minimal banding.
• 14-Channel Color Correction: Fine-tune hue, saturation, and brightness for black, white, and standard RGB-derived colors.
• 3D LUT Support: Use external .cube files to adjust video source colors with pinpoint accuracy.

2.4 Multi-Layer Management

Each output card supports up to four layers, while the entire system can manage 32 layers at 4K resolution. This layering capability enables complex visual compositions, such as overlapping videos, graphics, and text, all rendered with perfect synchronization.

2.5 Real-Time Monitoring

With built-in diagnostic tools and automated alerts, the MX6000 Pro ensures uninterrupted operation. Its LCD touchscreen provides instant access to device status, input/output monitoring, and error logs, empowering users to troubleshoot issues quickly.

While prices may vary depending on configuration and regional availability, the base model of the NovaStar MX6000 Pro typically starts at around $5,000 to $7,000. For accurate pricing or information on other accessories, please contact EagerLED or visit the NovaStar website.

5.1 Real-Time Previewing and Monitoring

The MX6000 Pro supports real-time previewing and monitoring of video source inputs and LED screen display status. This feature is invaluable for live events, where operators need to ensure seamless transitions and accurate visuals.

5.2 Frame Rate Adaptive Technology

The controller adjusts display effects for varying frame rates (23.98 Hz to 360 Hz), ensuring consistent brightness and color temperature across different content types. This is particularly useful in multi-angle camera shooting scenarios, where maintaining image quality at high frame rates is critical.

5.3 Shutter Fit Functionality

The shutter fit feature automatically adjusts driver IC parameters according to the camera shutter angle, addressing issues like black lines, grayscale addition, and grayscale loss during filming. This ensures optimal results in xR and virtual production environments.

5.4 Frame Multiplication

The MX6000 Pro supports frame interpolation and frequency multiplication, enabling simultaneous output of multiple frames with different backgrounds. This feature is ideal for post-production adjustments and multi-camera setups.

The versatility of the MX6000 Pro makes it suitable for a wide range of applications:

• Rental Services: Ideal for large events requiring high-resolution displays and seamless transitions.
• xR/VP Studios: Delivers pixel-perfect backgrounds for immersive virtual production environments.
• TV Production: Ensures consistent color and brightness for broadcast-quality visuals.
• E-Sports Events: Supports high frame rates and low latency for competitive gaming setups.
• Exhibition Halls:Powers large fixed installations with irregular screen shapes.

• NovaStar MX6000 Pro Specifications
• NovaStar MX6000 Pro User Manual
• NovaStar MX6000 Pro Firmware Updates

Q1. What is the maximum resolution supported by the MX6000 Pro?

The MX6000 Pro supports resolutions up to 8192×8192 pixels for 8K displays and 4096×2160@60Hz for 4K displays.

Q2. Can I use the MX6000 Pro without VMP software?

While basic operations can be performed using the front panel touchscreen, the Vision Management Platform (VMP) software provides advanced configuration and monitoring capabilities, making it highly recommended for full functionality.

Q3. Does the MX6000 Pro support redundancy?

Yes, the MX6000 Pro supports redundancy at multiple levels, including hot backup between devices, output cards, and Ethernet ports, ensuring uninterrupted operation.

The NovaStar MX6000 Pro redefines what’s possible in LED display control. With its ability to handle 141 million pixels, process 8K inputs, and manage multi-layered displays, it caters to the most demanding applications. Features like HDR support, end-to-end backup, and low-latency output further solidify its reputation as a reliable and versatile tool for professionals.

Whether you’re designing immersive xR environments, powering stadium-sized LED walls, or ensuring 24/7 reliability in command centers, the MX6000 Pro rises to the challenge. Its industrial-grade casing and rigorous stability testing guarantee dependable performance under extreme conditions.

For more information, user manuals, or firmware updates, please visit the NovaStar Download Page. Enhance your LED project experience with the NovaStar MX6000 Pro—the ultimate 8K LED control solution.
