Novastar TB10 Plus: A new generation LED display multimedia player

In the rapidly evolving world of digital displays, NovaStar continues to set benchmarks with its innovative solutions. The NovaStar TB10 Plus is a shining example of this commitment, offering a versatile and powerful multimedia player designed for full-color LED displays. Whether you’re managing commercial advertising screens, smart city applications, or retail environments, the TB10 Plus delivers exceptional performance, ease of use, and intelligent control.

In this comprehensive guide, we’ll explore the features, specifications, functions, and applications of the TB10 Plus, along with detailed charts and insights to help you understand why it’s a winning choice.

Table of Content

The NovaStar TB10 Plus is a next-generation multimedia player that seamlessly integrates playback and sending capabilities. Designed for flexibility and reliability, it allows users to publish content and control LED displays from a computer, mobile phone, or tablet. With its superior cloud-based publishing and monitoring platforms, the TB10 Plus empowers users to manage their displays remotely, anytime and anywhere.

1.1 Features of NovaStar TB10 Plus

1）Output

• Loading Capacity: The TB10 Plus supports up to 650,000 pixels, with a maximum width of 2048 pixels and a maximum height of 2048 pixels per Ethernet port.
• Ultra-Long Screen Support:It can handle ultra-long screens with a maximum width of 8192 pixels and a height of 2048 pixels, ensuring compatibility with diverse display setups.
• Gigabit Ethernet Output Port:Equipped with one Gigabit Ethernet output port, the TB10 Plus ensures smooth and reliable data transmission.
• Stereo Audio Output Connector:The audio sample rate is fixed at 48 kHz, providing high-quality sound output when paired with NovaStar’s multifunction card.

2）Control

• USB Ports:
• USB 2.0 (Type A):Supports USB playback, firmware upgrades, and storage expansion.
• USB (Type B): Connects to a control computer for content publishing and screen control.

Fast Ethernet Port: Enables connection to a LAN or public network for seamless content management.

3）Performance

• Processor: Powered by a quad-core ARM A53 processor running at 1.4 GHz, the TB10 Plus delivers robust processing capabilities.
• Video Decoding: Supports hardware decoding of 4K videos, ensuring flawless playback of high-resolution content.
• Memory: Comes with 2 GB of RAM and 32 GB of internal storage, providing ample space for media files and efficient operation.

4）Playback Capabilities

The TB10 Plus can handle multiple video streams simultaneously:

• 1x 4K
• 3x 1080p
• 8x 720p
• 16x 480p
• 20x 360p

5）Functionality

• All-Round Control Plans: Publish and control content from any Internet-connected device.
• Wi-Fi AP and Wi-Fi Sta:Both modes can be activated simultaneously, enabling flexible connectivity options.
• Multi-Screen Synchronization: Ensures consistent playback across multiple screens using NTP, GPS, or RF time synchronization.

1.2 Specifications of the NovaStar TB10 Plus

1.3 Appearance

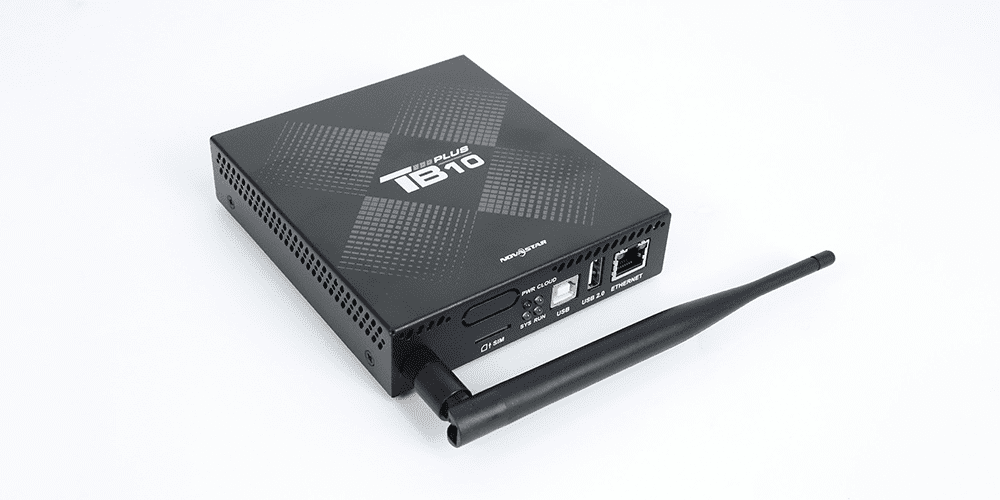

Front Panel：

• Wi-Fi Antenna Connector:Supports 2.4GHz Wi-Fi.
• Sensor Connector: Compatible with brightness sensors or temperature and humidity sensors.
• SIM Card Slot:Prevents incorrect SIM card insertion.
• USB Ports: Includes Type A and Type B ports for various functionalities.

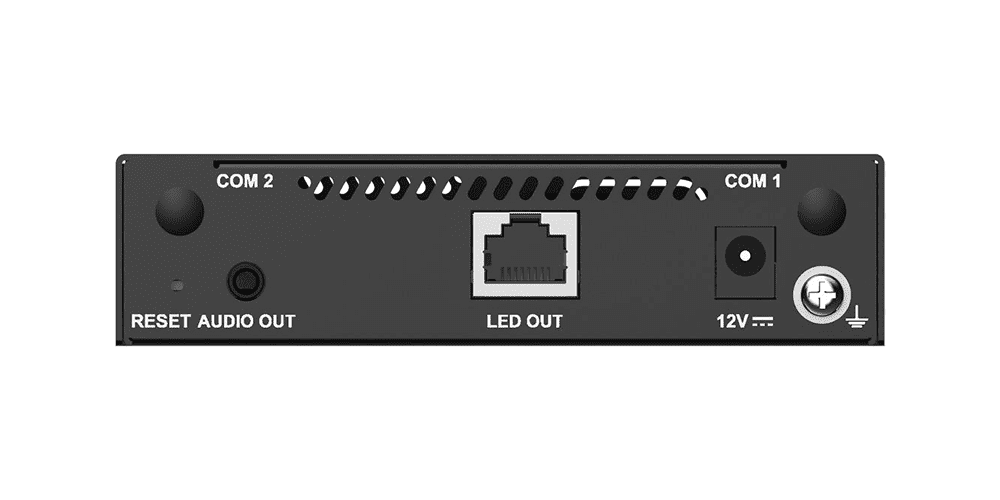

Rear Panel：

• GPS Antenna Connector:For GPS time synchronization.
• Factory Reset Button: Restores the device to factory settings.
• Audio Output Connector: Standard 3.5mm jack.
• LED Output Port: Gigabit Ethernet connector for display connectivity.

The NovaStar TB10 Plus is competitively priced at approximately $60, making it an excellent investment for businesses and organizations seeking advanced LED display solutions. For the latest pricing and exclusive offers, visit EagerLED.

3.1 Comprehensive Control Options

The TB10 Plus allows users to publish content and manage displays from any Internet-connected device, including computers, tablets, and smartphones. Its intuitive interface simplifies remote updates, screen control, and performance monitoring.

3.2 Wi-Fi Connectivity

Wi-Fi AP Mode: Creates a hotspot for direct device connections. Default SSID: “AP+Last 8 digits of SN.”

Wi-Fi STA Mode: Connects to existing Wi-Fi networks for enhanced flexibility.

3.3 Multi-Screen Synchronization

Supports synchronous playback across multiple screens using NTP, GPS, or RF time synchronization. Note that enabling synchronous playback reduces the device’s decoding capability by half.

3.4 4G Module Support

While the TB10 Plus does not include a built-in 4G module, users can install one separately. Network priority is as follows: Wired > Wi-Fi > 4G.

• NovaStar TB10 Plus Specification
• NovaStar TB10 Plus Software

Access the official user manual, firmware updates, and configuration guides on our NovaStar Software Download Page.

Q1: What is the NovaStar TB10 Plus?

The TB10 Plus is a multimedia player designed for full-color LED displays, integrating playback and sending capabilities.

Q2: Does the TB10 Plus support 4G connectivity?

Yes, but a compatible 4G module must be purchased separately.

Q3: What is the loading capacity of the TB10 Plus?

Up to 650,000 pixels, with a maximum resolution of 2048×2048 pixels.

With its cutting-edge features, robust performance, and versatile applications, the NovaStar TB10 Plus stands out as a top-tier solution for modern LED display needs. Whether you’re enhancing customer engagement in retail spaces or creating dynamic public information systems, the TB10 Plus is your ultimate multimedia player.

For more details, visit our website or contact us today!
