In the dynamic world of digital signage and LED displays, NovaStar has consistently delivered innovative solutions that cater to diverse needs. The NovaStar TB20 Plus is a standout product in this lineup, offering a robust multimedia player designed for full-color LED displays. Whether you’re managing commercial advertising screens, smart city applications, or retail environments, the TB20 Plus delivers exceptional performance, ease of use, and intelligent control.

In this review, we’ll explore its specifications, features, functionality, and why it’s becoming a popular choice for modern LED display setups.

Table of Content

1.Overview of NovaStar TB20 Plus

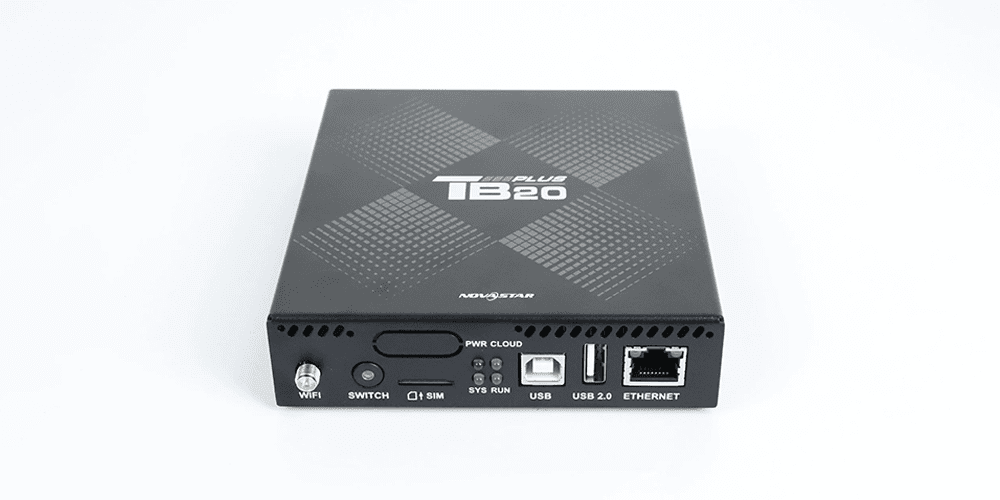

The NovaStar TB20 Plus is a next-generation multimedia player that seamlessly integrates playback and sending capabilities. Designed for flexibility and reliability, it allows users to publish content and control LED displays from a computer, mobile phone, or tablet. With its superior cloud-based publishing and monitoring platforms, the TB20 Plus empowers users to manage their displays remotely, anytime and anywhere.

NovaStar TB20 Plus

One of the standout features of the TB20 Plus is its ability to operate in both synchronous and asynchronous modes. This versatility ensures it can meet various playback demands, whether you’re using a USB drive or streaming content via HDMI. Multiple protection measures, such as terminal authentication and player verification, ensure secure playback, making it ideal for professional and commercial applications.

2.Key Features of NovaStar TB20 Plus

2.1 Input and Output Capabilities

  • Loading Capacity:The TB20 Plus supports up to 650,000 pixels, with a maximum width of 2048 pixels and a maximum height of 2048 pixels per Ethernet port.
  • Ultra-Long Screen Support:It can handle ultra-long screens with a maximum width of 8192 pixels and a height of 2048 pixels, ensuring compatibility with diverse display setups.
  • Gigabit Ethernet Output Port: Equipped with one Gigabit Ethernet output port, the TB20 Plus ensures smooth and reliable data transmission.
  • Stereo Audio Output Connector: The audio sample rate is fixed at 48 kHz, providing high-quality sound output when paired with NovaStar’s multifunction card.

2.2 Control Options

USB Ports:

  • USB 2.0 (Type A): Supports USB playback, firmware upgrades, and storage expansion.
  • USB (Type B): Connects to a control computer for content publishing and screen control.

Fast Ethernet Port: Enables connection to a LAN or public network for seamless content management.

2.3 Performance

  • Processor: Powered by a quad-core ARM A53 processor running at 1.4 GHz, the TB20 Plus delivers robust processing capabilities.
  • Video Decoding: Supports hardware decoding of 4K videos, ensuring flawless playback of high-resolution content.
  • Memory: Comes with 2 GB of RAM and 32 GB of internal storage, providing ample space for media files and efficient operation.

2.4 Playback Capabilities

The TB20 Plus can handle multiple video streams simultaneously:

  • 1x 4K
  • 3x 1080p
  • 8x 720p
  • 16x 480p
  • 20x 360p

2.5 Functionality

  • All-Round Control Plans: Publish and control content from any Internet-connected device.
  • Wi-Fi AP and Wi-Fi Sta:Both modes can be activated simultaneously, enabling flexible connectivity options.
  • Multi-Screen Synchronization:Ensures consistent playback across multiple screens using NTP, GPS, or RF time synchronization.

3.Specifications of the NovaStar TB20 Plus

NovaStar TB20 Plus



Category Details
Electrical Parameters Input Voltage: DC 5V to 12V; Maximum Power Consumption: 15W
Storage Capacity RAM: 2 GB; Internal Storage: 32 GB
Operating Environment Temperature: -20°C to +60°C; Humidity: 5% RH to 85% RH, non-condensing
Storage Environment Temperature: -40°C to +80°C; Humidity: 5% RH to 95% RH, non-condensing
Dimensions 141.2 mm × 120.0 mm × 33.5 mm
Weight Net Weight: 470.3 g; Gross Weight: 776.1 g
Packing Information Dimensions: 333.0 mm × 196.0 mm × 70.0 mm
IP Rating IP20

4.Appearance

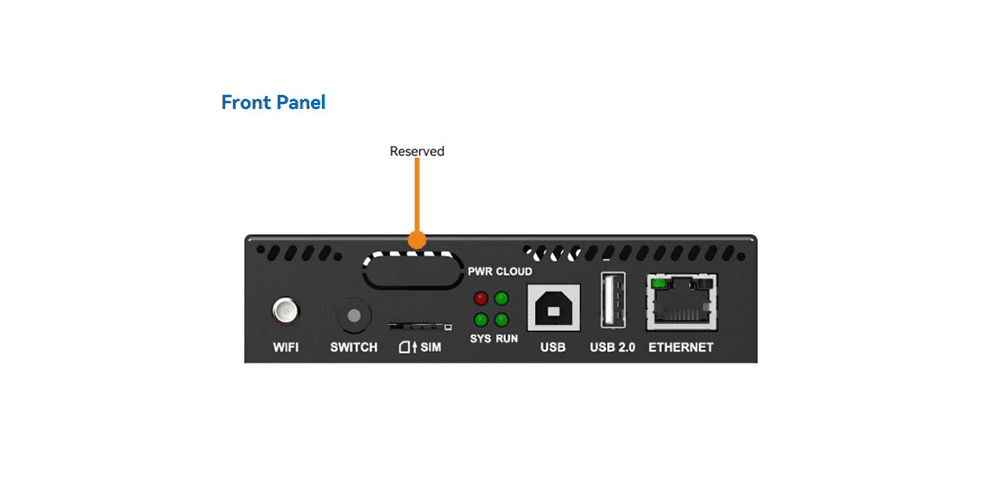

4.1 Front Panel

NovaStar TB20 Plus
  • Wi-Fi Antenna Connector: Supports 2.4GHz Wi-Fi.
  • Sensor Connector: Compatible with brightness sensors or temperature and humidity sensors.
  • SIM Card Slot: Prevents incorrect SIM card insertion.
  • USB Ports:Includes Type A and Type B ports for various functionalities.

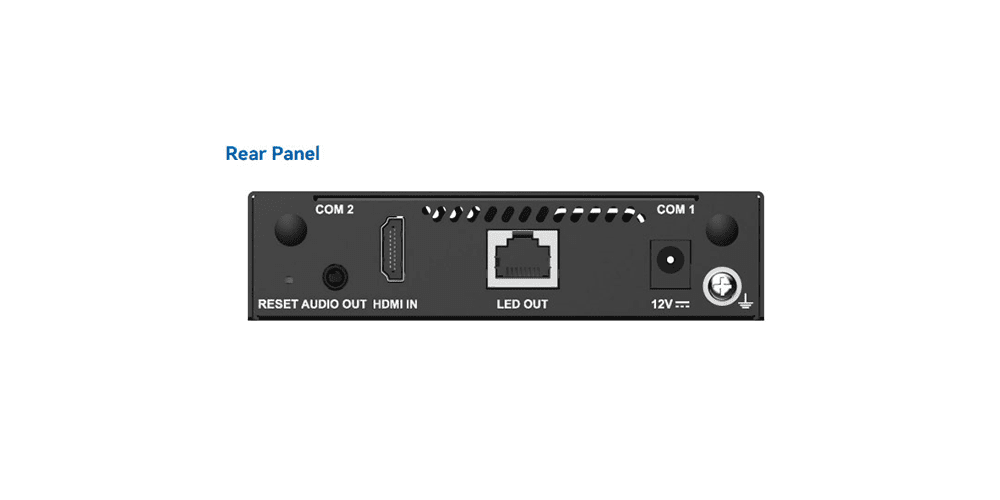

4.2 Rear Panel

NovaStar TB20 Plus
  • GPS Antenna Connector:For GPS time synchronization.
  • Factory Reset Button:Restores the device to factory settings.
  • Audio Output Connector:Standard 3.5mm jack.
  • LED Output Port:Gigabit Ethernet connector for display connectivity.

5.Applications of NovaStar TB20 Plus

The NovaStar TB20 Plus is ideal for a wide range of applications, including:

  • Commercial Advertising:Fixed LED displays, lamp-post displays, and chain store displays.
  • Smart Cities: Public information systems and advertisement players.
  • Retail Environments: Retail store displays, door head displays, and shelf displays.

Its versatility and reliability make it a preferred choice for businesses and organizations seeking advanced LED display solutions.

6.Functions of NovaStar TB20 Plus

6.1 Comprehensive Control Options

The TB20 Plus allows users to publish content and manage displays from any Internet-connected device, including computers, tablets, and smartphones. Its intuitive interface simplifies remote updates, screen control, and performance monitoring.

6.2 Wi-Fi Connectivity

  • Wi-Fi AP Mode:Creates a hotspot for direct device connections. Default SSID: “AP+Last 8 digits of SN.”
  • Wi-Fi STA Mode:Connects to existing Wi-Fi networks for enhanced flexibility.

6.3 Multi-Screen Synchronization

Supports synchronous playback across multiple screens using NTP, GPS, or RF time synchronization. Note that enabling synchronous playback reduces the device’s decoding capability by half.

6.4 4G Module Support

While the TB20 Plus does not include a built-in 4G module, users can install one separately. Network priority is as follows: Wired > Wi-Fi > 4G.

7.Price of NovaStar TB20 Plus

The NovaStar TB20 Plus is competitively priced at approximately $80, making it an excellent investment for businesses and organizations seeking advanced LED display solutions. For the latest pricing and exclusive offers, visit EagerLED.

8.FAQs

Q1: What is the NovaStar TB20 Plus?

The TB20 Plus is a multimedia player designed for full-color LED displays, integrating playback and sending capabilities.

Q2: Does the TB20 Plus support 4G connectivity?

Yes, but a compatible 4G module must be purchased separately.

Q3: What is the loading capacity of the TB20 Plus?

Up to 650,000 pixels, with a maximum resolution of 2048×2048 pixels.

9.Conclusion

With its cutting-edge features, robust performance, and versatile applications, the NovaStar TB20 Plus stands out as a top-tier solution for modern LED display needs. Whether you’re enhancing customer engagement in retail spaces or creating dynamic public information systems, the TB20 Plus is your ultimate multimedia player.
