Novastar TCC160 Asynchronous LED display control card: Complete Guide and Overview

In the ever-evolving landscape of digital signage, NovaStar continues to lead with groundbreaking innovations. The Novastar TCC160, an asynchronous full-color LED display control card, exemplifies this commitment by offering a compact yet powerful solution for managing LED displays. Whether you’re setting up storefront displays, vehicle-mounted screens, or community billboards, the TCC160 delivers exceptional performance, ease of use, and intelligent control.

This comprehensive guide delves into the features, specifications, functions, and applications of the Novastar TCC160.

Table of Content

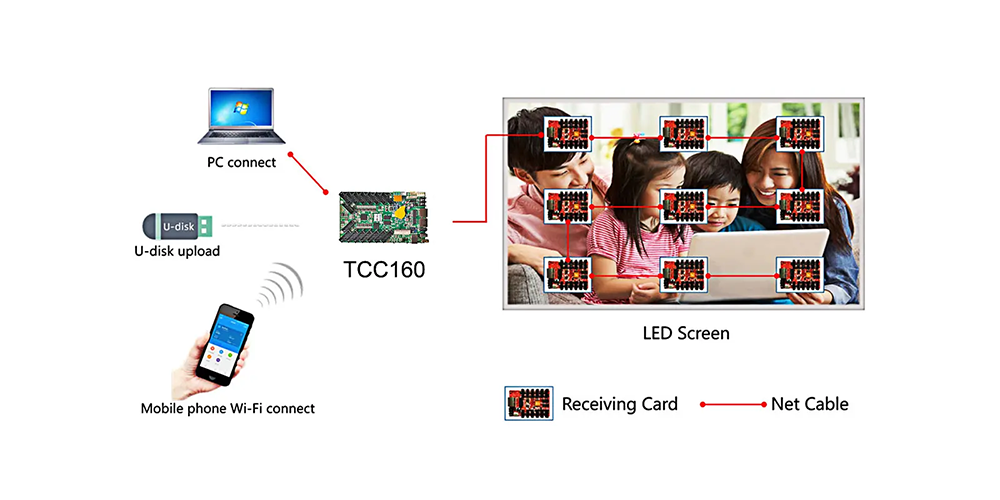

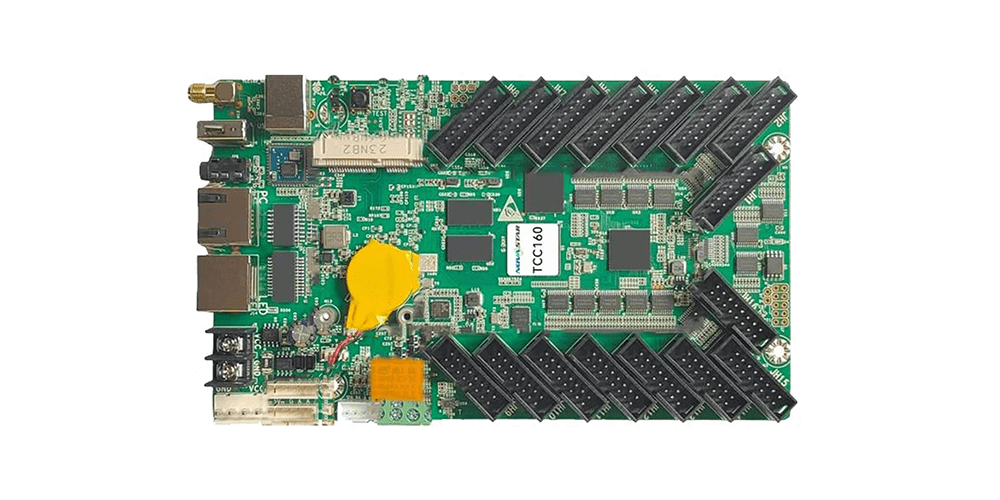

The Novastar TCC160 is an advanced asynchronous full-color LED display control card that integrates sending and receiving capabilities. Designed for versatility and reliability, it allows users to publish content and control LED displays from a computer, mobile phone, or tablet. By leveraging cloud-based publishing and monitoring platforms, the TCC160 enables remote management of displays anytime, anywhere.

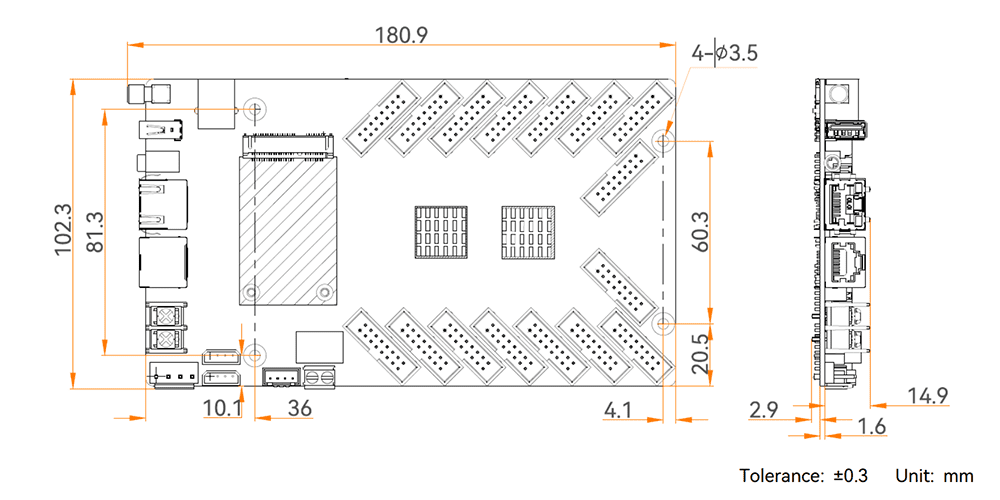

With its stable and secure integrated design, the Novastar TCC160 simplifies cabling, saves space, and is ideal for applications requiring small pixel capacity. From storefronts to lamp-post displays, this control card ensures seamless operation and maintenance.

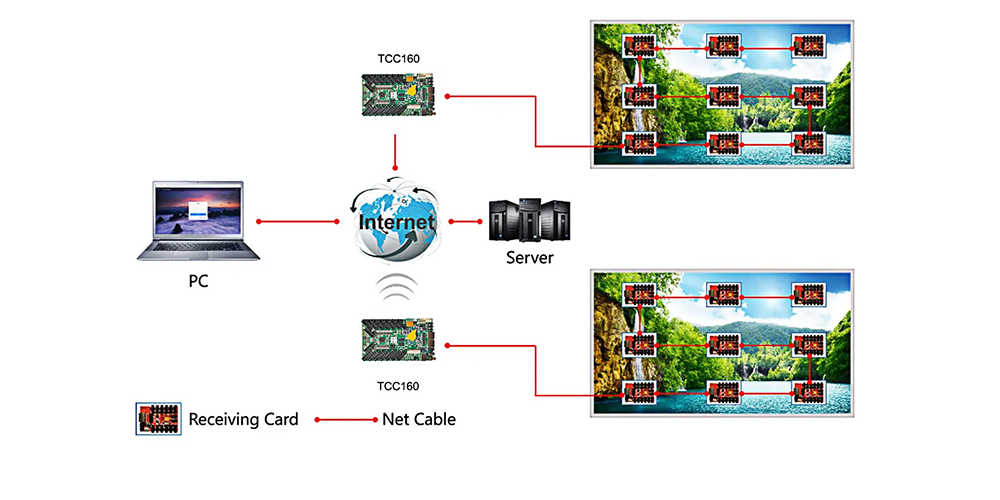

The NovaStar TCC160 is designed for applications requiring small-to-medium pixel capacities. Some ideal use cases include:

4.1 Retail Storefront Displays

Its integrated design and Wi-Fi/4G connectivity allow for effortless remote content updates from a central office or even a smartphone. Showcase high-resolution product videos and promotions without the need for a dedicated on-site computer, keeping your messaging fresh and engaging.

4.2 Vehicle-Mounted & Public Transit Advertising

With its operating temperature range of -40°C to +80°C and support for 4G modules, it can broadcast content reliably in harsh environments. Update playlists in real-time via the cloud as the vehicle moves through different areas, maximizing the impact of your mobile advertising campaigns.

4.3 Community & Corporate Information Boards

The controller’s low power consumption and dual Wi-Fi mode (AP for direct local access, STA for internet connection) offer maximum installation flexibility. Use the relay control to automatically power the display on/off on a schedule, saving energy and extending lifespan.

4.4 Lamp-Post & Digital Out-of-Home (DOOH) Media

Its compact size saves crucial space in confined lamp-post cabinets. Cloud-based monitoring allows operators to check the status (temperature, voltage, errors) of hundreds of displays from a single dashboard, dramatically reducing on-site maintenance costs and ensuring maximum uptime.

The NovaStar TCC160 is not just another control card—it’s a game-changer for LED display management. Here’s why your LED displays need it:

5.1 Simplified Setup and Maintenance

With 16 standard HUB75E connectors and integrated sending/receiving capabilities, the TCC160 eliminates the need for additional hardware. Its compact design saves space and reduces cabling complexity.

5.2 Superior Performance

Equipped with a quad-core 1.4 GHz processor, 2 GB RAM, and 32 GB internal storage, the TCC160 delivers flawless playback of high-resolution videos and images. It also supports hardware decoding of 4K videos, ensuring smooth performance even under heavy loads.

5.3 Remote Accessibility

Using cloud-based platforms, you can manage your LED displays from anywhere in the world. The built-in Wi-Fi and optional 4G module provide flexible connectivity options, making it easy to update content or troubleshoot issues remotely.

5.4 Enhanced Display Quality

Features like individual RGB gamma adjustment, 18-bit+ grayscale enhancement, and precise color management ensure vibrant, lifelike visuals on your LED displays.

Getting your NovaStar TCC160 control card up and running is straightforward. Follow this practical, step-by-step guide to go from unboxing to publishing content.

Step 1: Hardware Connections

Power: Connect a 5V~12V DC power source to the POWER port.

LED Screen: Use HUB75E cables to connect from the TCC160’s 16x HUB75E connectors to your LED modules.

Network (Choose One):

• Wired: Plug an Ethernet cable from your router to the ETHERNET port.
• Wireless: Attach and orient the included Wi-Fi antenna to the Wi-Fi Antenna connector.

Step 2: Initial Configuration & Connection

• Power on the device. The red PWR indicator should light up, and the green RUN indicator will flash every 2 seconds.
• On your computer or phone, search for a Wi-Fi network named “AP” followed by the last 8 digits of the TCC160’s serial number (found on the product label). Connect to it using the default password also printed on the label.
• Open the NovaLCT software on your computer to discover and connect to the TCC160.

Step 3: Screen Configuration & Content Publishing

• In NovaLCT, set up your LED screen parameters (e.g., resolution, module type) to match your hardware.
• Use the software to create playlists, then drag and drop your images, videos, and other content. Finally, send the playlist to the TCC160.
• Your content will now play seamlessly on the LED display.

Step 4: Ongoing Monitoring & Management

• For remote access, configure the TCC160’s Wi-Fi STA mode in NovaLCT to connect to your local network, or insert a 4G module (sold separately).
• Use NovaStar’s cloud platforms (e.g., NovaCloud) to monitor screen status, including real-time temperature and voltage data, from anywhere.

Q1: Does the NovaStar TCC160 require professional installation?

No, the TCC160 is designed for easy setup. However, for complex installations, consulting a professional is recommended.

Q2: What is the Novastar TCC160?

The Novastar TCC160 is an asynchronous full-color LED display control card designed for managing small to medium-sized LED displays.

Q3: Does the TCC160 support 4G connectivity?

Yes, but a compatible 4G module must be purchased separately.

Q4: What is the maximum pixel capacity of the TCC160?

The maximum pixel capacity per TCC160 is 260,000 pixels, with a maximum resolution of 2048×2048 pixels.

By combining powerful features, ease of use, and robust connectivity, the NovaStar TCC160 stands out as a top choice for modern LED display management. Whether you’re managing a single storefront display or a network of digital billboards, this control card has the tools you need to succeed.
