NovaStar VX1000 Pro Video Processor Review（2025）

The NovaStar VX1000 Pro is a powerful, versatile LED video processor that integrates video processing and control. It supports a variety of input signals and high-resolution output, delivering stable and smooth visuals and flexible control. Whether for stage performances, rental events, or fine-pitch LED display applications, the VX1000 Pro delivers a high-definition, detailed, and colorful visual experience, making it an ideal choice for mid- to high-end display projects.

Table of Content

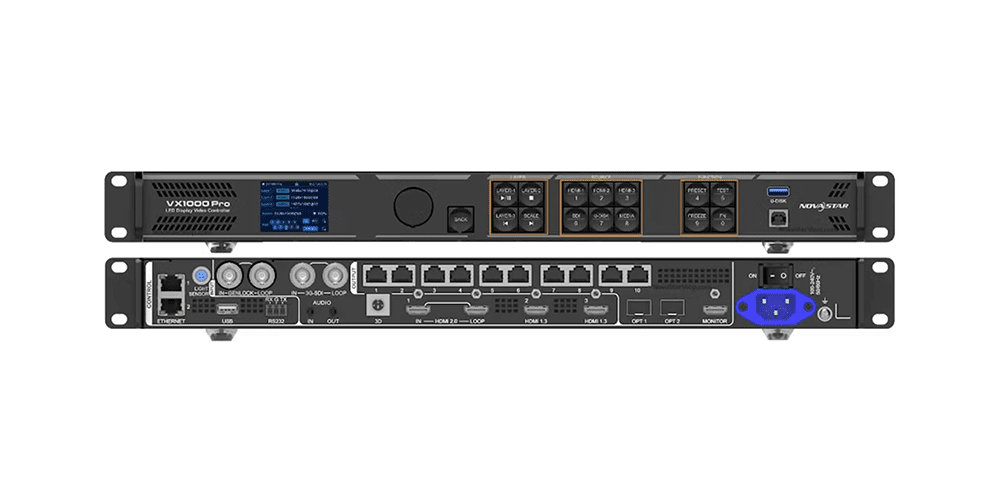

The NovaStar VX1000 Pro is an advanced all-in-one LED video processor that fully integrates video processing and control functions into a single device. Equipped with 10 Ethernet ports, it supports video controllers, fiber converters, and bypass modes, providing flexibility for a variety of scenarios. The VX1000 can drive up to 6.5 million pixels, with a maximum output resolution of 10,240 pixels wide and 8,192 pixels high. It is ideal for ultra-wide and ultra-tall screens, as well as large stage and rental LED displays, delivering stable, high-quality visuals.

1.1 The purpose of LED screen controller

LED screen controllers primarily drive and manage the display effects of LED displays. They are commonly used for large, indoor and outdoor full-color LED screens , enabling real-time playback of videos, graphics, advertisements, and notifications. Synchronous controllers operate similarly to computer monitors, mirroring images in real time at high frame rates and supporting multiple grayscale displays, resulting in clear, smooth multimedia presentations. These controllers are widely used in advertising, stage performances, and information dissemination.

1.2 NovaStar VX1000 Pro Features

The NovaStar VX1000 Pro boasts exceptional features and is designed for large-scale stage performances, rental events, and mid- to high-end LED display applications. Its core advantages include:

• Integrated design: Perfectly combines video processing and control functions, reduces reliance on external devices, simplifies system architecture, and improves installation and operation efficiency.

• Super strong load capacity: supports up to 6.5 million pixel display, with a maximum output width of 10240 pixels and a height of 8192 pixels for a single screen, easily driving ultra-large LED displays.

• Multi-interface compatibility: Provides multiple input methods such as HDMI, DVI, 3G-SDI, supports 4K@60Hz ultra-high-definition resolution, and meets the needs of different signal sources.

• Advanced image processing: With functions such as multi-layer management, free scaling, and low-latency mode, it ensures smooth images and flexible response to complex scenes.

• Precision Calibration Technology: Supports point-by-point brightness and color correction to ensure uniform display and optimal visual effects.

• Diverse control methods: It can be controlled through the panel knob, NovaLCT software, web platform and mobile application, which is flexible and efficient to use.

• Stable and reliable design: Adopting industrial-grade hardware structure, it has strong durability and environmental adaptability, suitable for long-term stable operation.

The NovaStar VX1000 Pro is priced at approximately $13.80 , though prices may vary depending on exchange rate fluctuations.

3.1 Video Input

The VX1000 Pro offers a variety of video input interfaces, supporting signal sources such as HDMI 2.0, DVI, and SDI (optional), with a maximum input resolution of 4K×2K @ 60Hz. Its robust input compatibility meets the needs of diverse scenarios, including stage performances, live broadcasts, and multimedia presentations.

3.2 Video Output

Equipped with 10 Gigabit Ethernet ports, it has a maximum load capacity of 6.5 million pixels, and supports a maximum width of 10,240 pixels and a height of 8,192 pixels per screen. It also supports fiber optic output, ensuring stable and smooth display effects in large-scale LED screen applications.

3.3 Image Processing Capabilities

The VX1000 Pro has a built-in advanced image processing engine with functions such as 6-layer image overlay, free zooming, pixel-level correction, etc. It supports low-latency mode (minimum 20 lines of delay) and can achieve high-definition, smooth and non-stuttering image output. It is very suitable for professional occasions with extremely high requirements for visual effects.

3.4 Control method and operation interface

Supports multiple operation modes:

• Front panel knobs and buttons: convenient local operation
• NovaLCT software: comprehensive configuration and debugging
• Unico Web: Cross-platform remote management
• VICP Mobile App: Easy Control on Mobile

This flexible control mode makes the device suitable for different application scenarios, and can easily handle everything from rapid on-site commissioning to remote centralized management.

3.5 More Specifications

• Working mode: Video controller/fiber converter/ByPass mode
• Preset function: supports up to 10 user-defined presets, one-click switching scenes
• Industrial-grade stability: The rugged and durable body structure ensures stable operation in high-intensity performances, rentals, and long-term fixed installation environments
• Synchronization function: supports multi-machine synchronization, ensuring that the screen remains consistent when multiple VX1000 Pros are running together

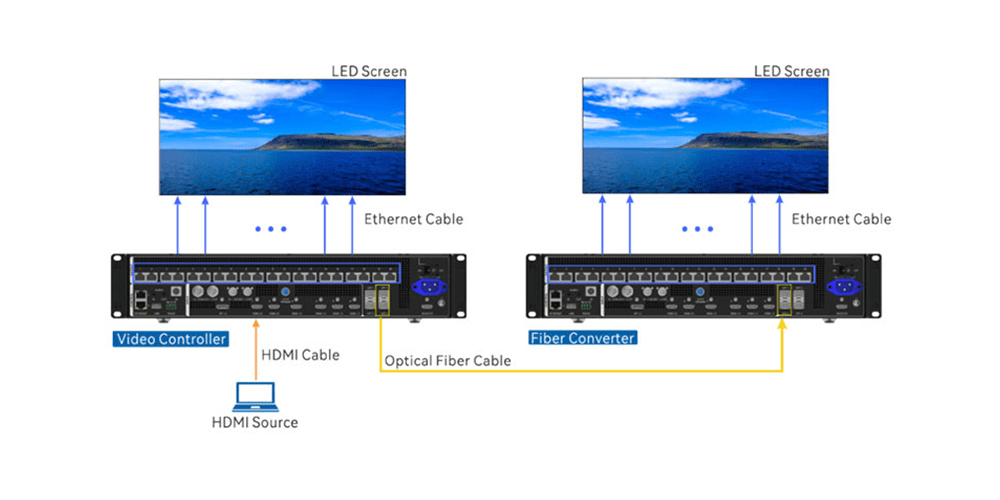

4.1 Working Mode

NovaStar VX1000 Pro supports three working modes, which can be flexibly switched according to the application scenario:

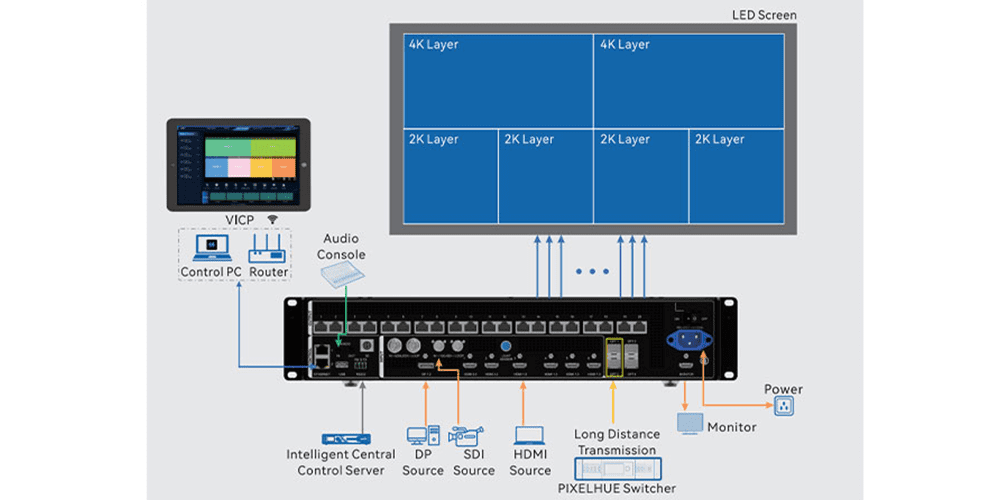

1) Video controller mode

This is the default operating mode. In this mode, the VX1000 Pro operates as an integrated video processing and control device, capable of completing signal input, image processing, and screen output.

Features: Integrated video processing and transmission functions, no need for additional equipment, and simplified architecture.

Port configuration: OPT 1 can be used as input or output, and OPT 2 can be used as a backup or replication port for Ethernet output.

Application scenarios: Commonly used in stage performances, large conferences, and fixed-installation LED large screens.

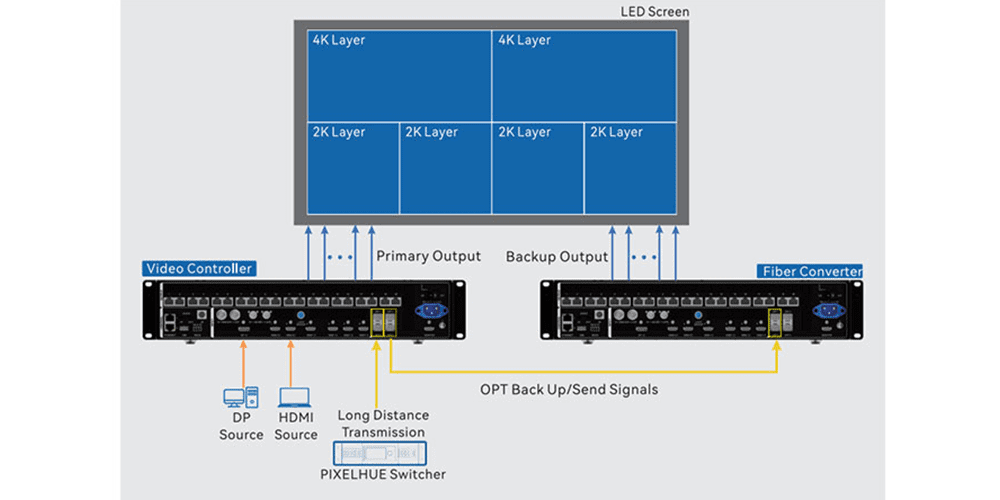

2) Fiber converter mode

In this mode, VX1000 Pro mainly takes on the function of long-distance signal transmission.

Features: Supports optical fiber input and Ethernet output to ensure that the signal is not interfered with during long-distance transmission.

Port configuration: OPT 1 and OPT 2 are used as input ports, and Gigabit Ethernet port is used as output port.

Application scenarios: Suitable for complex scenarios such as exhibition halls, large-scale outdoor performances, and cross-venue signal transmission.

4.2 Application Scenarios

With three flexible working modes and powerful hardware performance, the VX1000 Pro can meet diverse application needs:

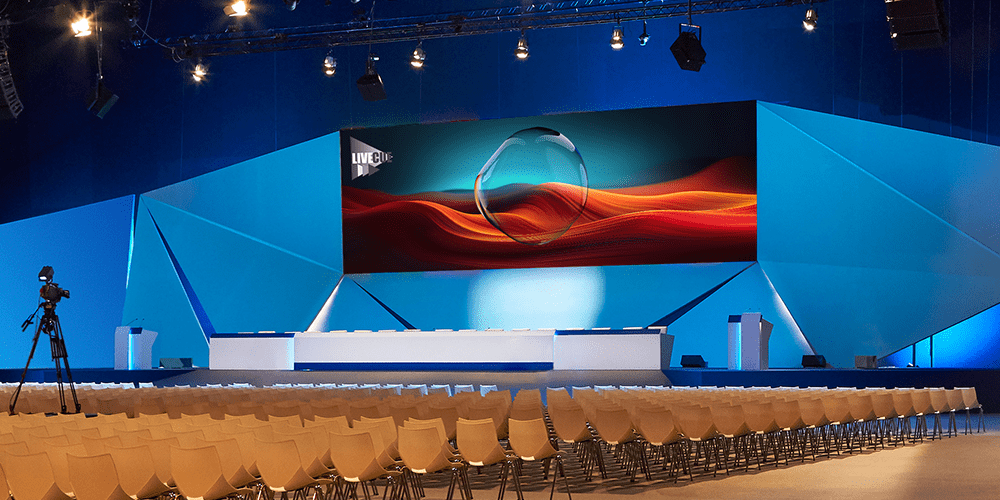

(1) Stage performances and rentals

It supports multi-layer image overlay and zooming, and works with ByPass low-latency mode to ensure that both live audiences and broadcast viewers can enjoy high-definition visual effects simultaneously.

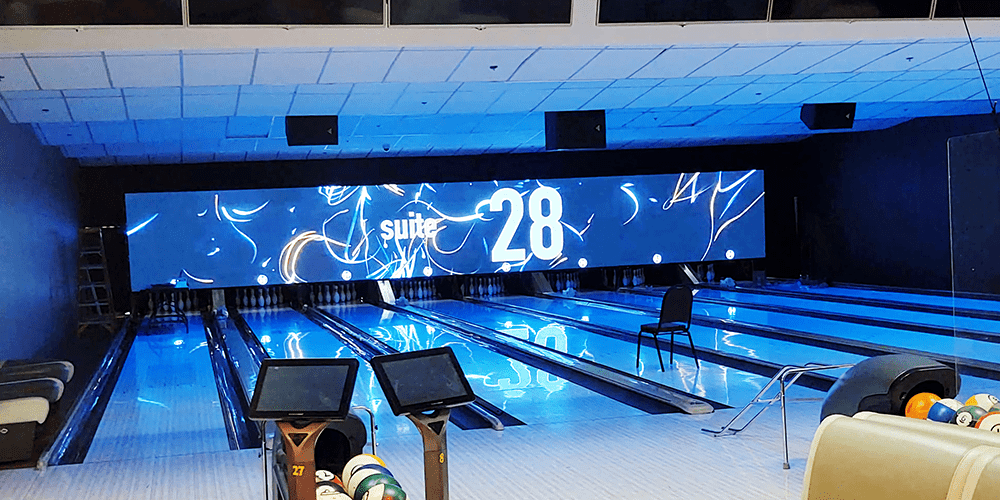

(2) Fixed installation

The integrated design and powerful pixel loading capacity make it very suitable for LED screens in fixed places such as conference centers, exhibition halls, shopping malls, and airports.

(3) Large-scale events and live broadcasts

Stable long-distance signal transmission is achieved through optical fiber mode, and combined with low-latency output, it ensures that the broadcast image is synchronized with the scene without error.

(4) High-end small-pitch LED screen

Pixel-level correction and high-resolution support enable it to perform excellently in high-precision applications such as command centers, monitoring centers, and corporate exhibition halls.

In the NovaStar series, the VX1000 Pro and VX600 Pro are both high-performance LED display controllers, widely suitable for professional scenarios such as stage performances, conference presentations, and exhibitions. Although they have many similarities in basic functions, there are still significant differences in performance specifications and application scope :

Click on the file you need to download it directly.

NovaStar VX1000 Pro Software :Novastar VX1000 Software

NovaStar VX1000 Pro Specifications:NovaStar VX1000 Specification (PDF)

NovaStar VX1000 Pro Manual :NovaStar VX1000 Pro User Manual (PDF)

7.1 What interfaces does the VX1000 Pro support?

It supports HDMI, DVI, 3G-SDI input, 10 Gigabit Ethernet output, and can drive up to 6.5 million pixel LED screens.

7.2 How to set resolution and layer scaling?

The resolution can be customized via the front panel knob or NovaLCT software, and full screen, pixel-to-pixel, or custom scaling modes can be selected.

7.3 What are the advantages of the VX1000 Pro compared to other controllers?

It provides multi-layer overlay, low latency, high-resolution output, and industrial-grade stability, making it suitable for stage, rental, and small-pitch LED screens.

The NovaStar VX1000 Pro’s powerful performance and flexible features make it an ideal choice for stage performances, rentals, and fine-pitch LED displays. EagerLED offers professional VX1000 Pro and accompanying LED display solutions to help you create stunning visuals.
