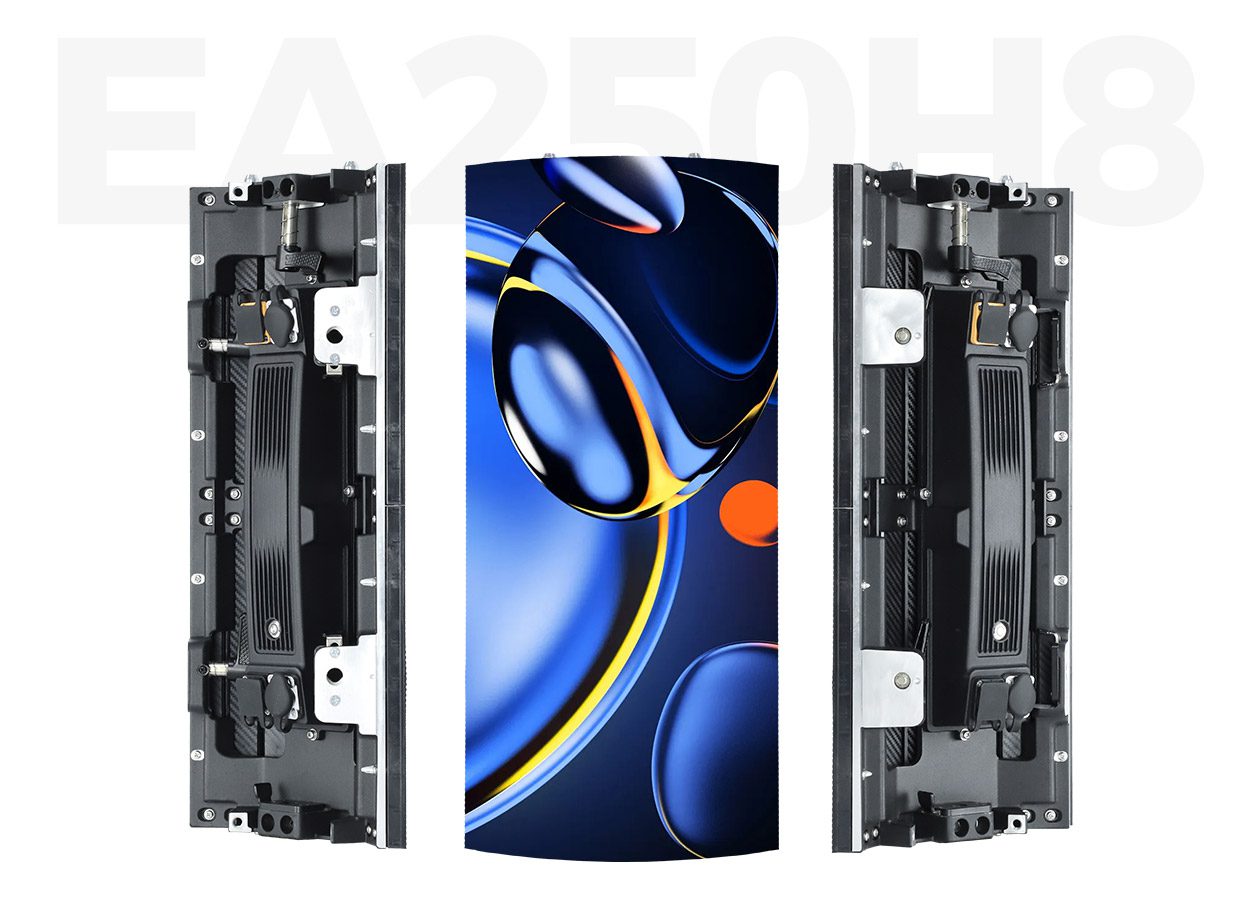

EA250H8 90° Corner Rental LED Screen

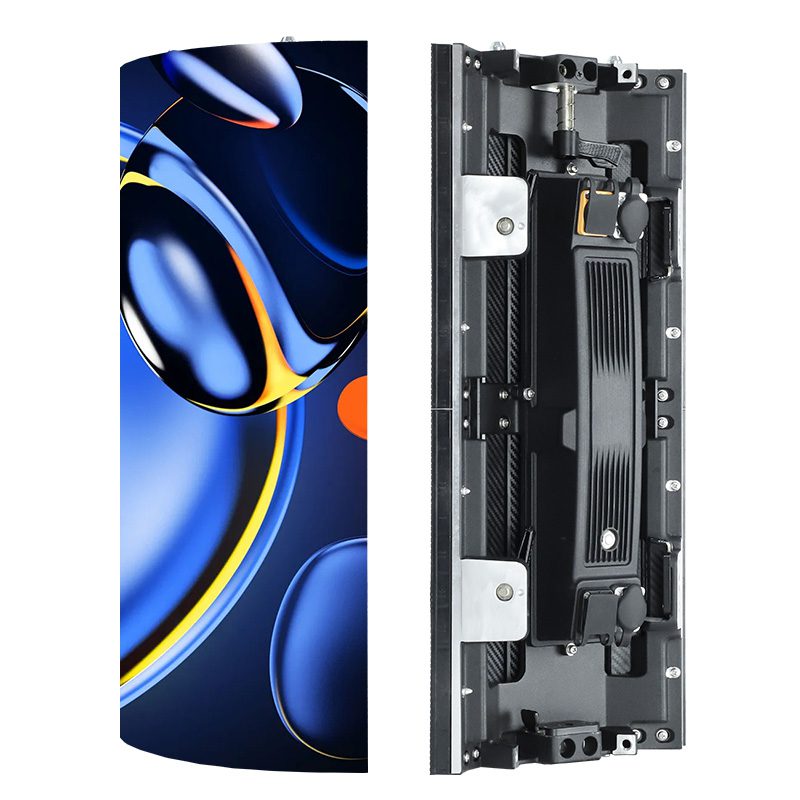

EA250H8 rental LED screen features a specially designed 90° curved cabinet with a compact 250 × 500 mm size. It can seamlessly integrate with EA500H7, EA500H8, EA500H8V, and EA1000H8 cabinets to create smooth and visually striking 90° curved LED display solutions.

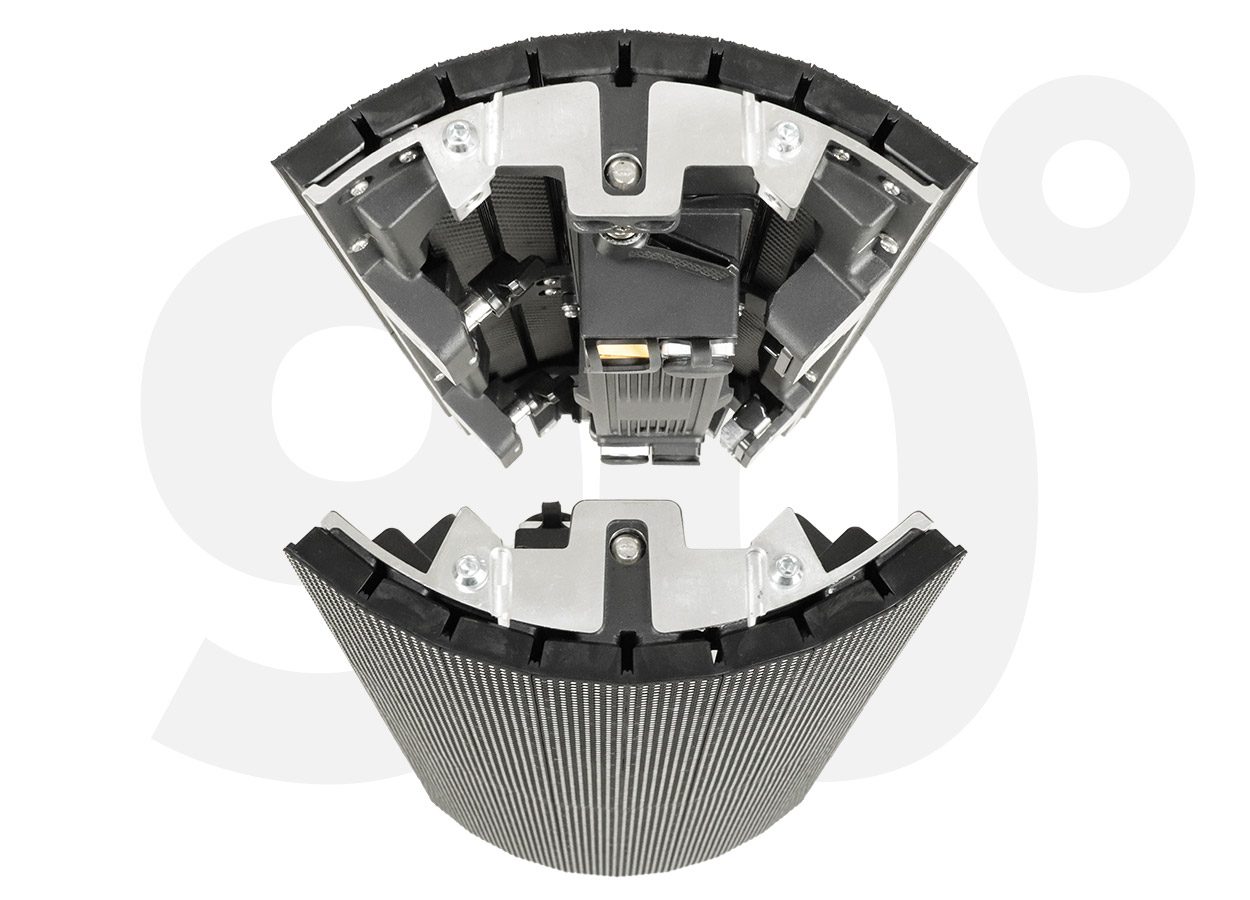

90° Corner Cabinet
Cabinet Design

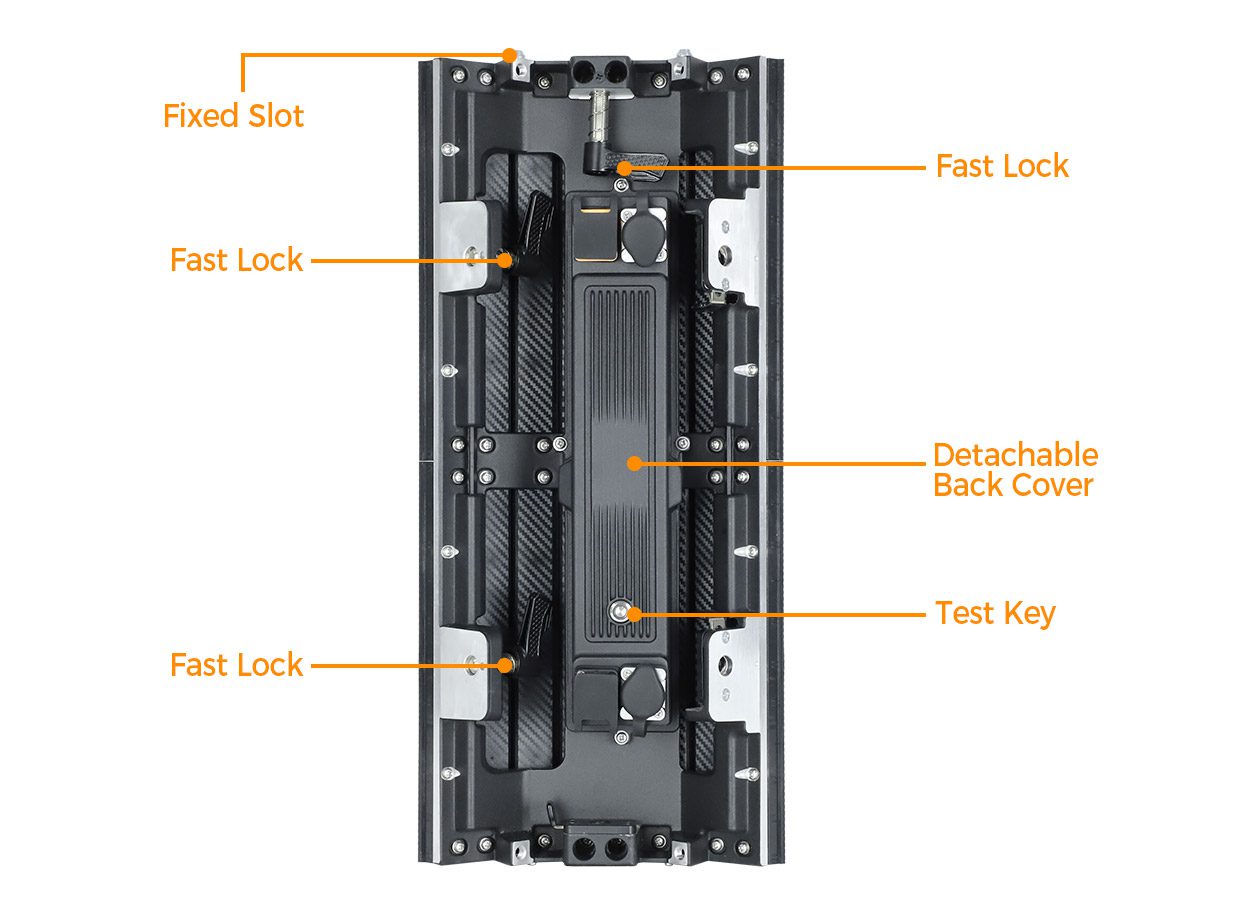

The EA250H8 rental LED screen is engineered with attention to detail, featuring durable mounting slots, fast-lock mechanisms, a built-in test button, and a detachable power box for safer operation and more convenient installation and maintenance.
Detachable Back Cover

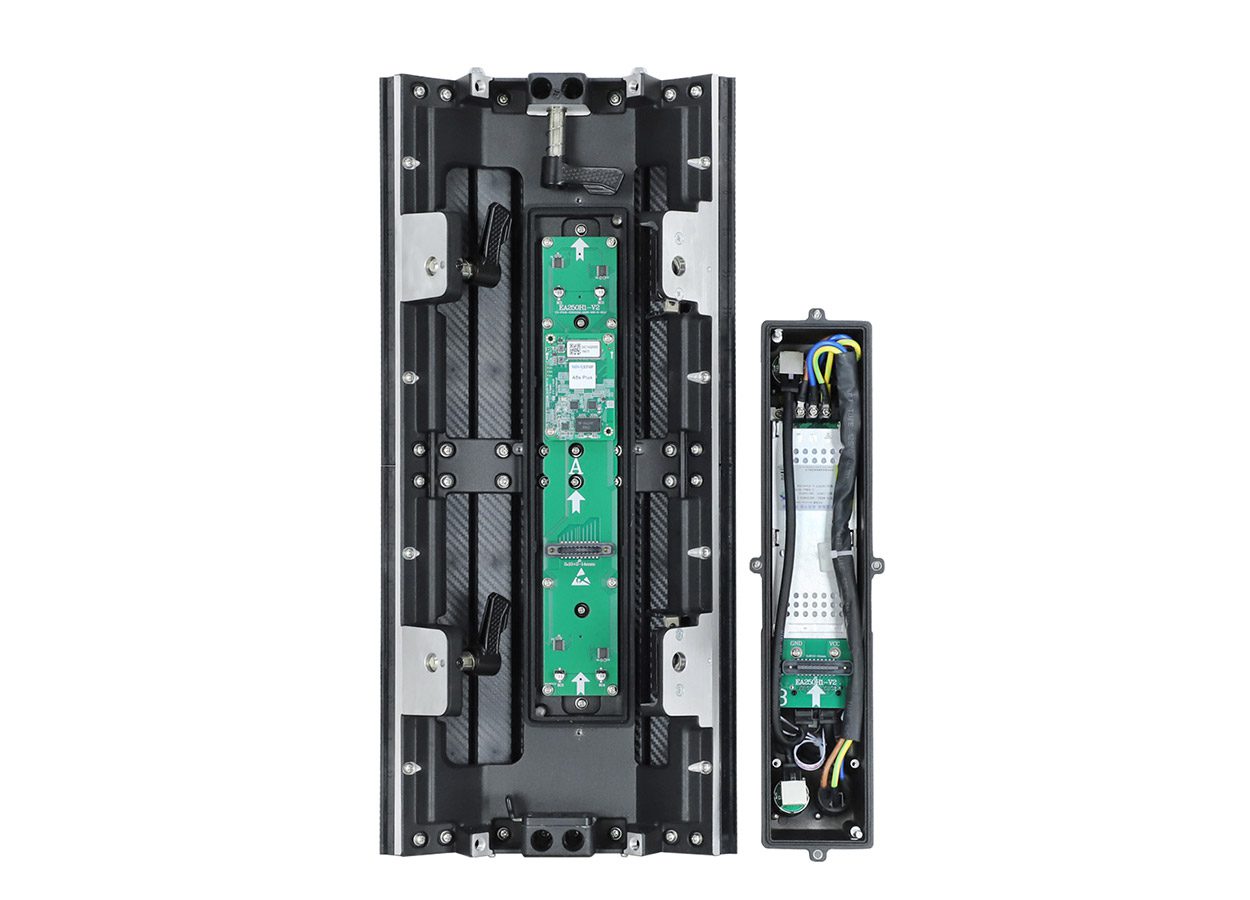

The EA250H8 LED screen adopts a Hub connection design for improved connection stability, while the detachable power box allows for quicker and more efficient maintenance.

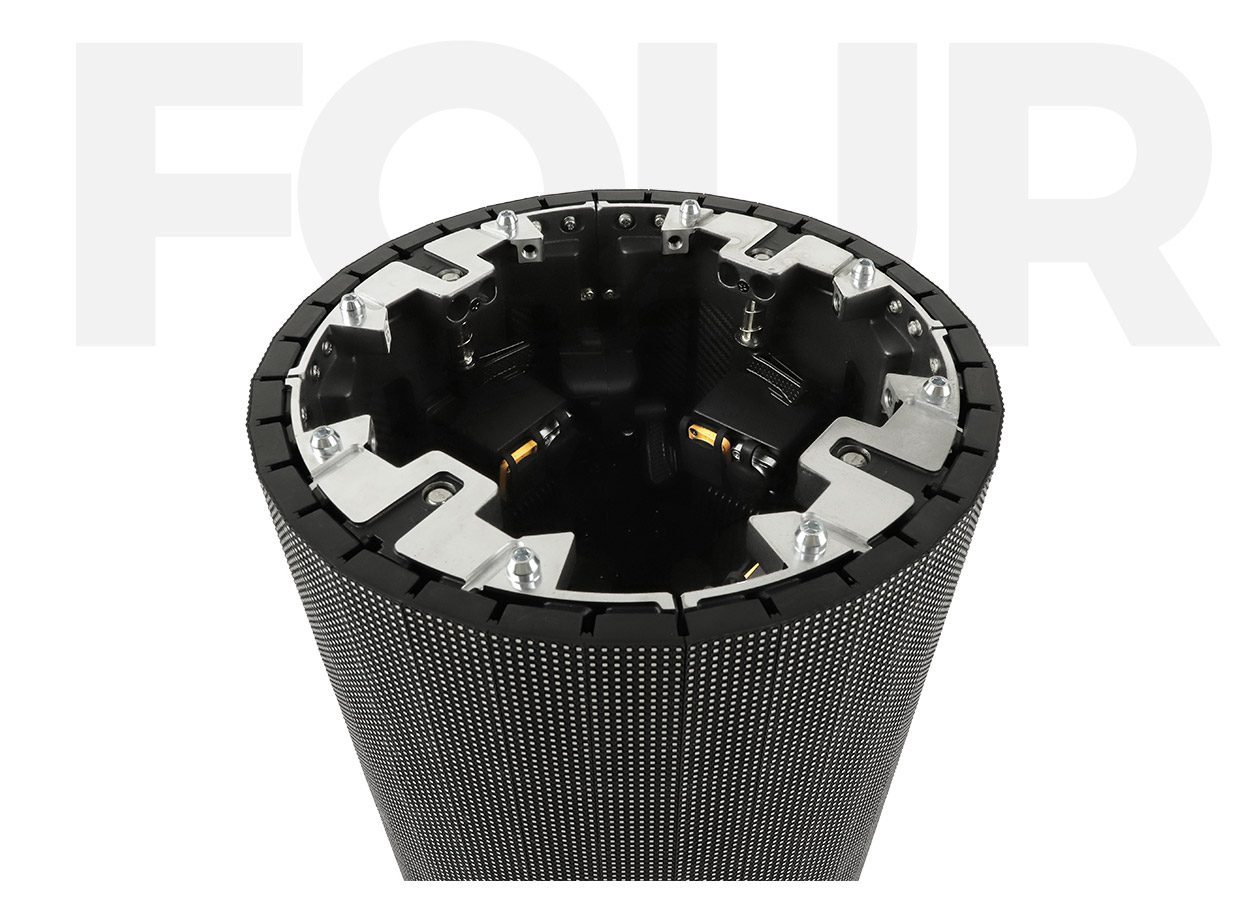

Cylindrical Configuration
Four EA250H8 cabinets can be seamlessly combined to create a cylindrical LED display structure, delivering immersive and eye-catching 3D visual effects.

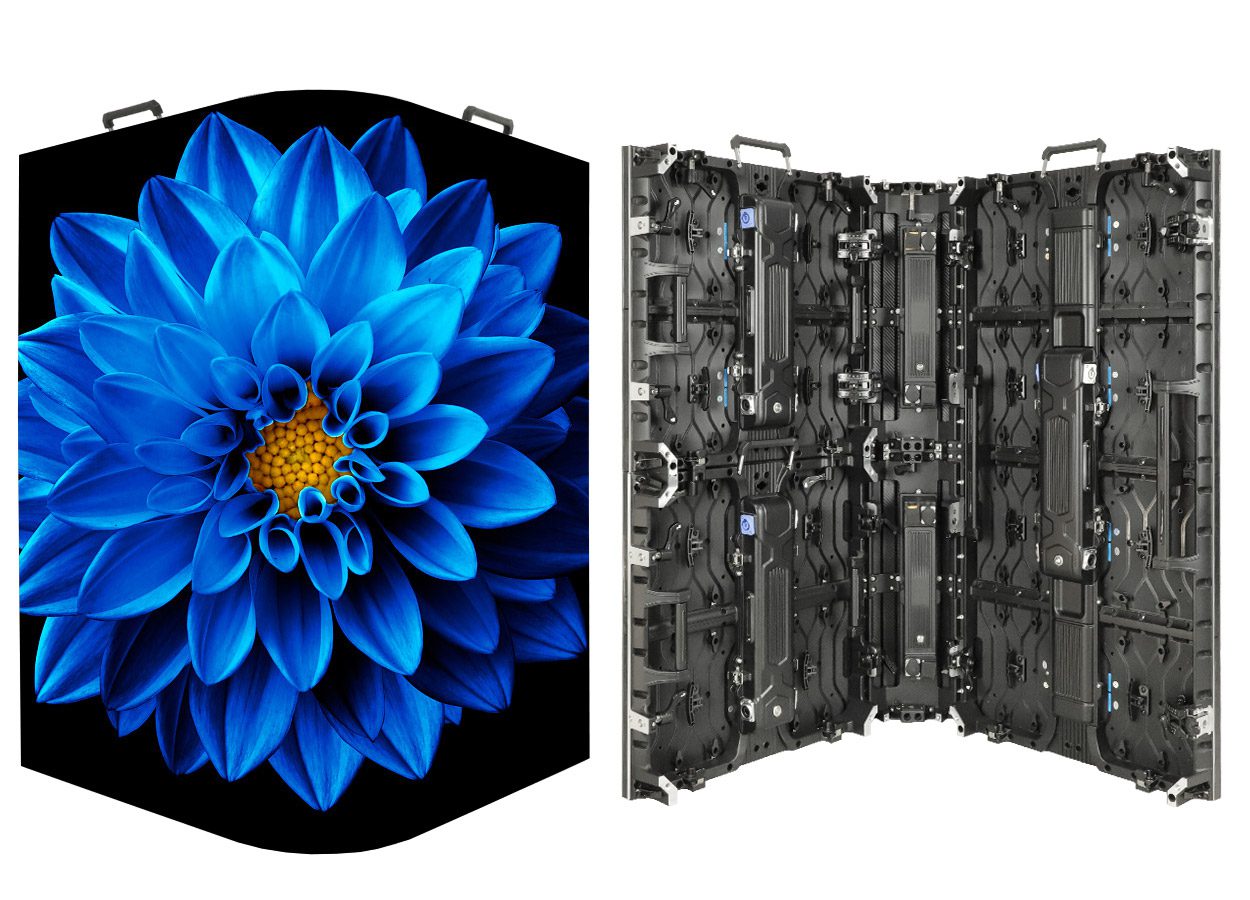

Flexible Splicing
The EA250H8 LED cabinet can be seamlessly integrated with EA500H7, EA500H8, EA500H8V, and EA1000H8 cabinets to create smooth and precise right-angle LED display configurations.
High‑Refresh Visual Performance
The EA250H8 rental LED screen features 3840Hz high refresh rate technology, combined with high grayscale performance and excellent brightness, delivering smoother visuals, richer details, and a more immersive viewing experience.
Indoor and Outdoor EA250H8 Rental LED Screen Parameter
| Pixel Pitch (mm) | P2.6-indoor | P2.97-indoor | P2.97-outdoor | P3.91-outdoor |
|---|---|---|---|---|
| Model | EA250H8-iP2.6 | EA250H8-iP2.97 | EA250H8-OP2.97 | EA250H8-OP3.91 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1415 | SMD1921 |
| Density (Pixels/㎡) | ' 147,928 | 112,896 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 96x96 | 84x84 | 84x84 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/32 | 1/28 | 1/21 | 1/16 |
| Cabinet Size (mm) | 250x500 | 250x500 | 250x500 | 250x500 |
| Cabinet Weight (KG) | 3.5 | 3.5 | 3.5 | 3.5 |
| Brightness (CD/㎡) | 750 | 750 | 4500 | 4800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 150 | 150 | 160 | 160 |
| Avg. Power Consumption (W/㎡) | 50 | 50 | 54 | 54 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | ' -20～+60 | '-20～+60 | '-20～+60 | '-20～+60 |
| Protection Grade | IP31 | IP31 | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
