EA960F4 Outdoor LED Screen
EA960F4 outdoor LED screen features a cable-free design, with power and data cables concealed within the base of the panel for a cleaner, more aesthetically pleasing appearance. The LED modules utilize a rigid connection design, ensuring exceptional stability.
Front and Rear Maintenance
EA960F4 LED display designs for front and rear maintenance, streamlining both installation and servicing. Instead of dismantling the entire screen, maintenance can be performed from either side, significantly boosting efficiency and reducing downtime.

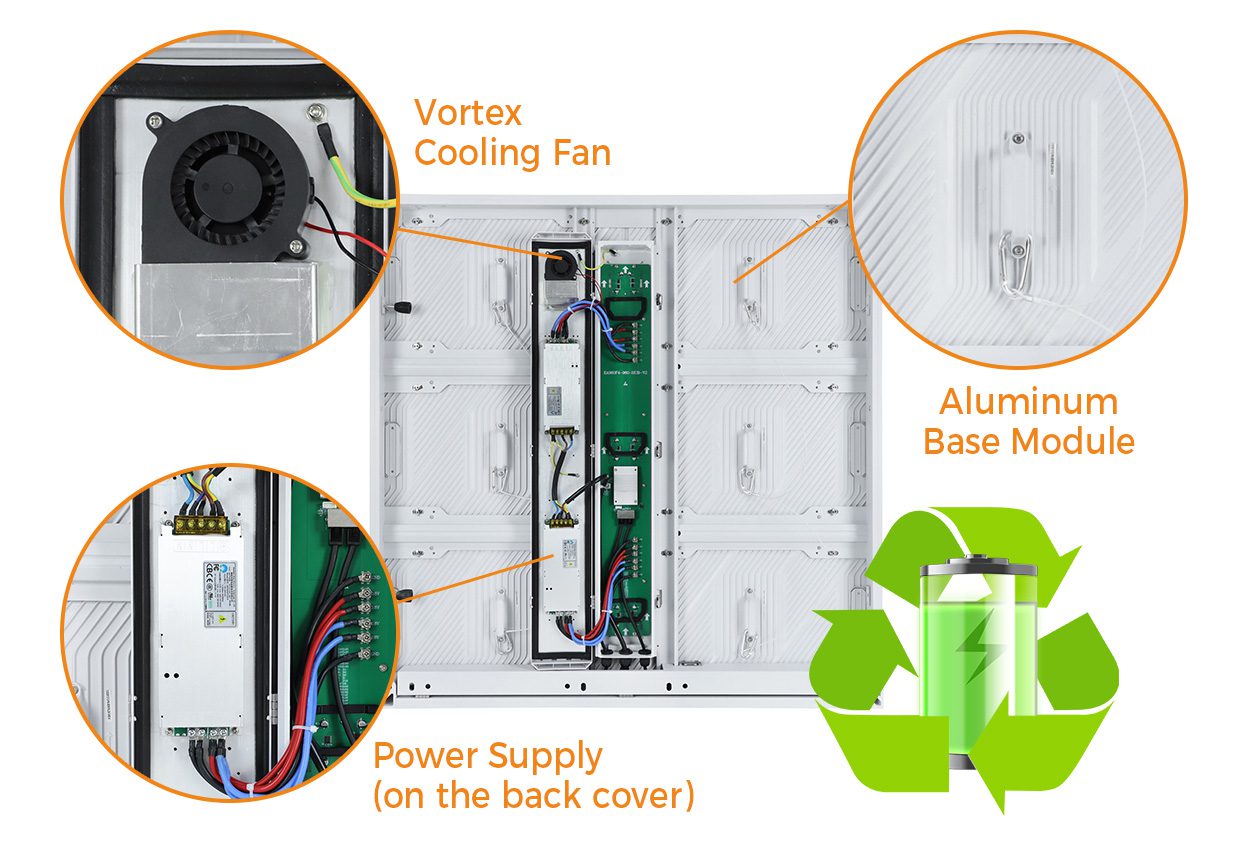

High-Efficiency Cooling
The EA960F4 outdoor LED screen adopts aluminum modules and eddy-current cooling fans, combined with an optimized heat dissipation structure. The power supply is mounted directly on the cabinet door panel with thermal grease to enhance heat transfer, ensuring stable long-term operation.
Cabinet Details
The EA960F4 outdoor LED screen cabinet features a lightweight yet durable aluminum structure, with quick-locks and positioning pins for secure, efficient installation. Each LED module includes a safety tether to enhance maintenance safety.

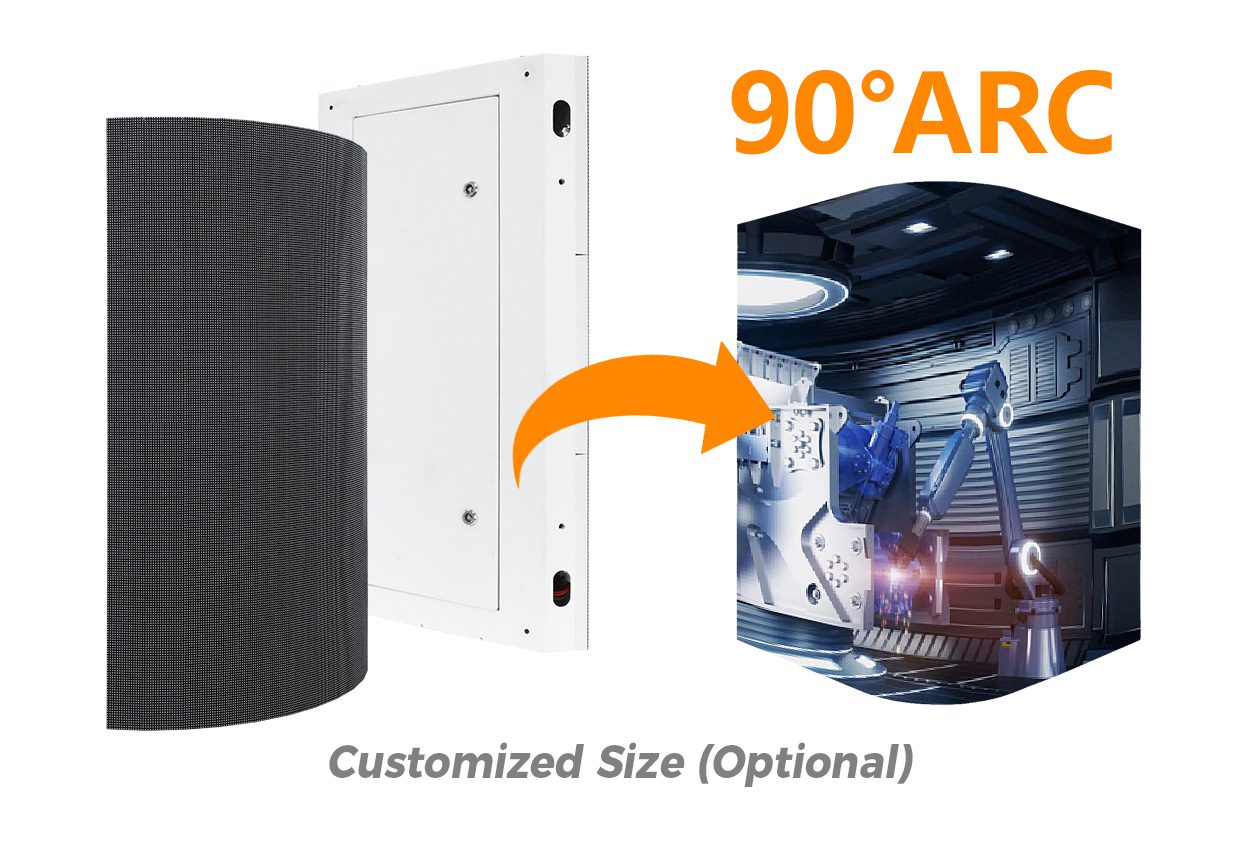

90° Curved Cabinet (Optional)
The EA960F4 outdoor LED screen offers an optional 90° curved cabinet, enabling curved corner splicing for immersive, glasses-free 3D advertising visuals.

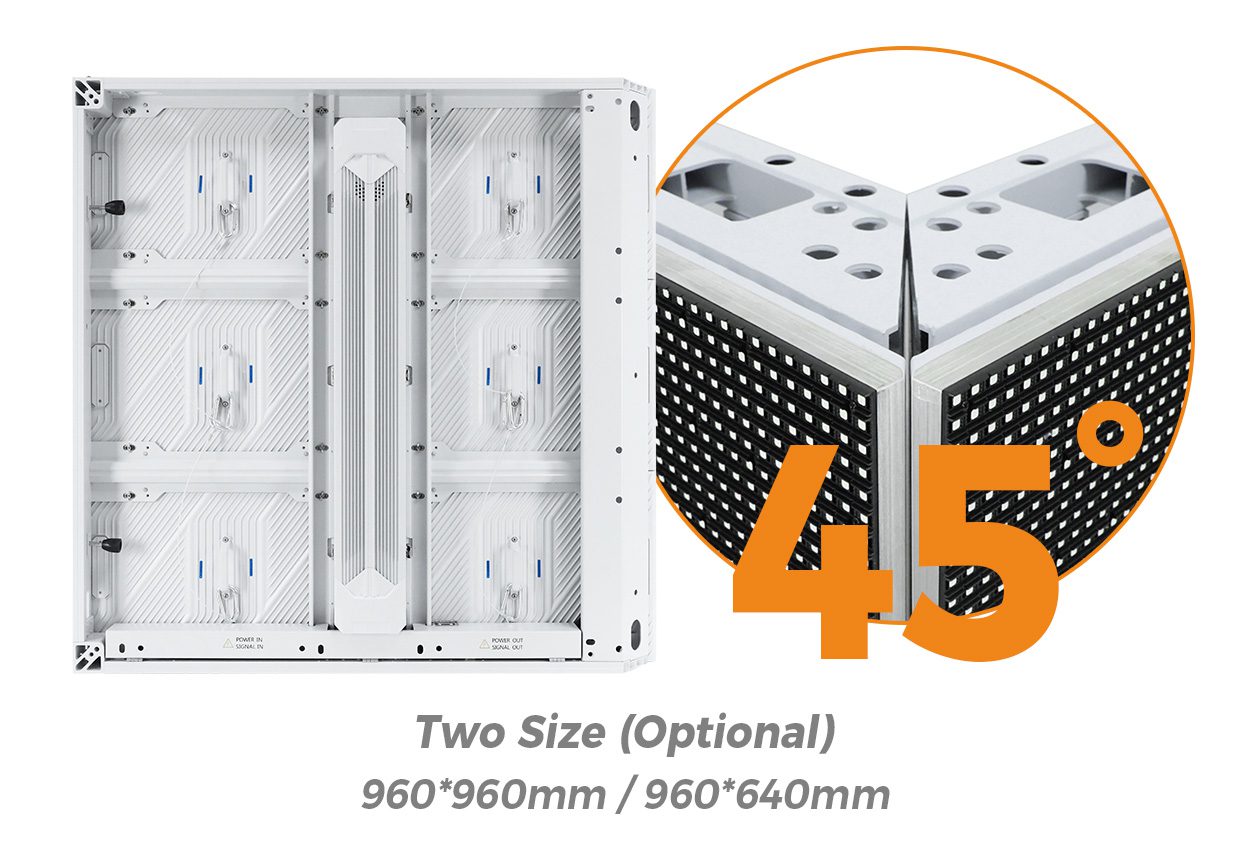

45° Beveled-Edge Cabinet (Optional)
The EA960F4 outdoor LED screen features a 45° beveled-edge cabinet and is available in two size options, enabling seamless 90° right-angle corner installations.

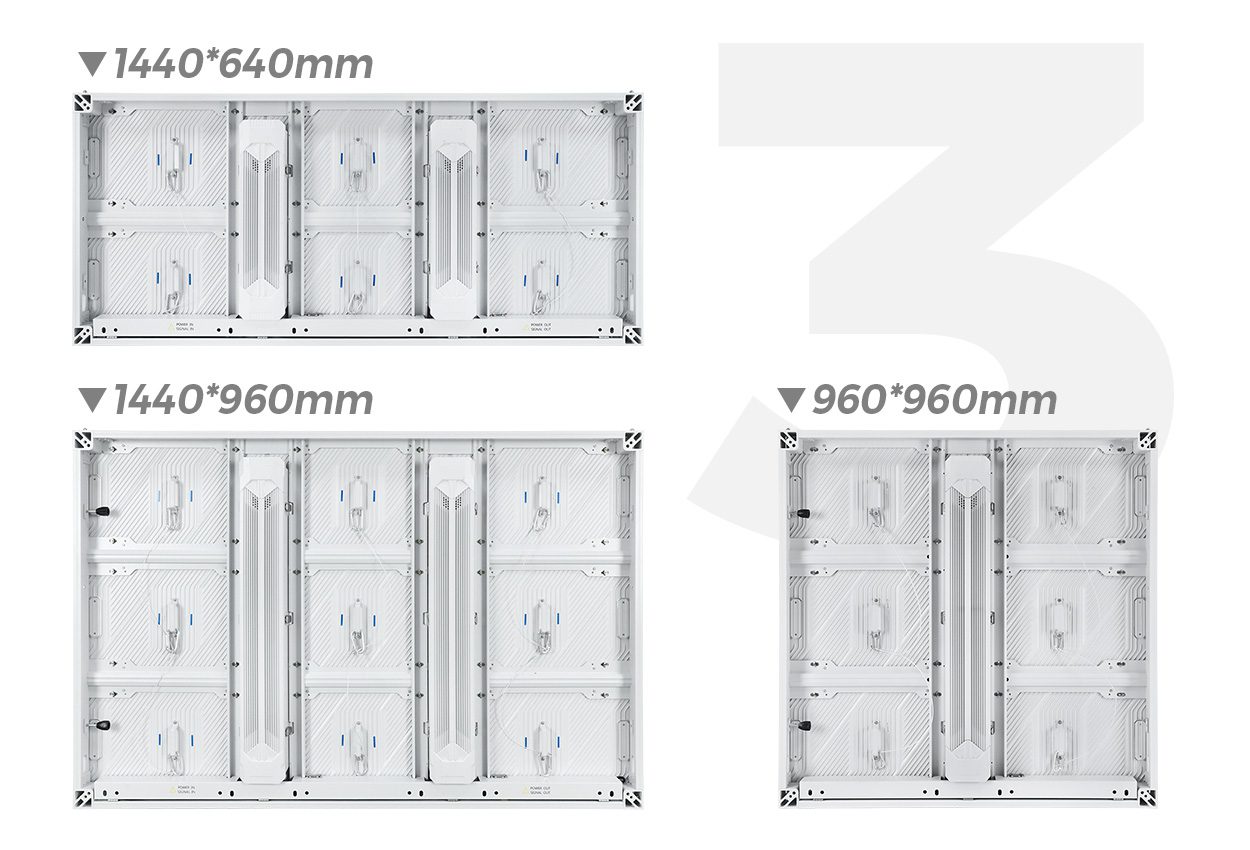

3 Sizes Available
The EA960F4 outdoor LED screen is built on 480×320mm LED modules and offers three cabinet sizes—960×960mm, 1440×960mm, and 1440×640mm—providing flexible solutions for different display applications.
Cable-free Design
The EA960F4 outdoor LED screen cabinet adopts a cable-free design, with power and data cables integrated into the panel base. Its hard-connection modules ensure stable and reliable performance.
High Refresh Rate and Brightness
The EA960F4 outdoor LED screen features a high refresh rate of 3840Hz, delivering smooth visuals with no ghosting. Its impressive brightness of 6000CD/m² ensures that content remains sharp and visible, even in direct sunlight.
Versatile Application
EA960F4 outdoor LED screen is suitable for a variety of settings such as commercial plazas, pedestrian streets, and stage performances. Whether used for advertising, information display, or artistic showcases, EA960F4 LED screen delivers outstanding performance every time.
