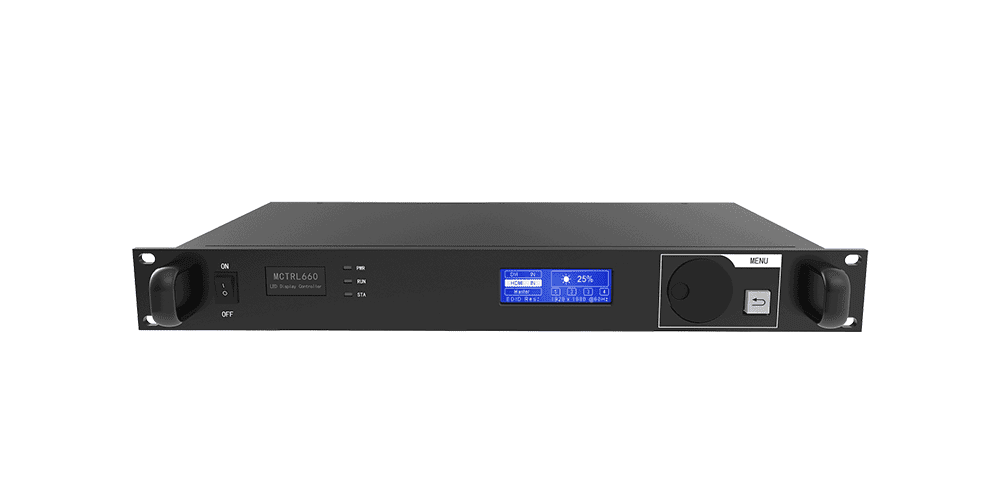

The NovaStar MCTRL660 is a practical and widely used LED display controller designed for both rental and fixed installations. Thanks to its stable performance, simple operation, and flexible connectivity, it has become a popular choice for event teams, system integrators, and display professionals working in concerts, sports venues, and control rooms.

In this article, we’ll walk through its main features, specifications, and real-world advantages to help you understand where it fits and why it remains a solid option in today’s LED display market.

Table of Content

The NovaStar MCTRL660 supports common input interfaces including DVI, HDMI, and audio, along with 4 Gigabit Ethernet outputs. It can handle resolutions up to 1920×1200@60Hz, which is more than enough for most standard LED display projects.

One feature users appreciate is its quick setup capability. You can configure the screen directly from the front panel without needing a computer, which is especially useful during tight installation schedules. Basic configuration can be completed in about 30 seconds.

The controller is suitable for a wide range of scenarios—from temporary setups like live events and exhibitions to permanent installations such as monitoring centers or stadium displays. It also supports cascading up to 20 units, making it adaptable for larger LED video walls.

2.1 Input and Output Capabilities

The NovaStar MCTRL660 boasts a wide range of input and output options, ensuring seamless integration with various video sources and display systems:

• Inputs: 1x SL-DVI, 1x HDMI 1.3, and 1x AUDIO input.
• Outputs:4x Gigabit Ethernet ports, each capable of handling up to 650,000 pixels. These ports also support redundancy, enhancing system reliability.
• Cascading: Up to 20 devices can be cascaded using the UART control ports, allowing for expansive multi-screen setups.

2.2 High-Bit-Depth Support

The MCTRL660 supports high-bit-depth inputs, including 8-bit, 10-bit, and 12-bit video sources. This capability ensures superior color accuracy and smooth gradients, making it ideal for applications requiring high-fidelity visuals. Additionally, the controller supports 18-bit grayscale processing and display, further enhancing image quality.

2.3 Smart Screen Configuration

One of the most innovative aspects of the MCTRL660 is its ability to implement smart screen configuration without the need for a computer. Using its intuitive front panel interface, users can configure screens within 30 seconds, significantly reducing setup time. This feature is particularly beneficial in fast-paced environments like live events, where quick deployment is critical.

2.4 Pixel-Level Calibration

The MCTRL660 works in tandem with NovaStar’s calibration platform to perform pixel-level brightness and chroma calibration. This process effectively eliminates color differences and ensures consistent brightness and chroma across the entire display. As a result, users can achieve unparalleled image quality, even on large-scale LED walls.

2.5 Manual Brightness Adjustment

With its manual brightness adjustment feature, the MCTRL660 allows users to fine-tune screen brightness according to ambient lighting conditions. This not only enhances viewer comfort but also extends the lifespan of the LED display by preventing overexposure.

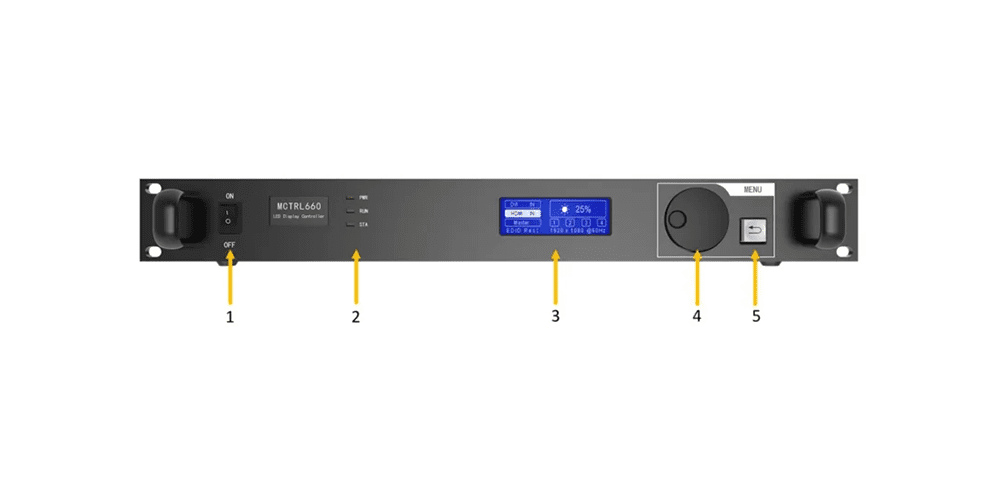

3.1 Front Panel

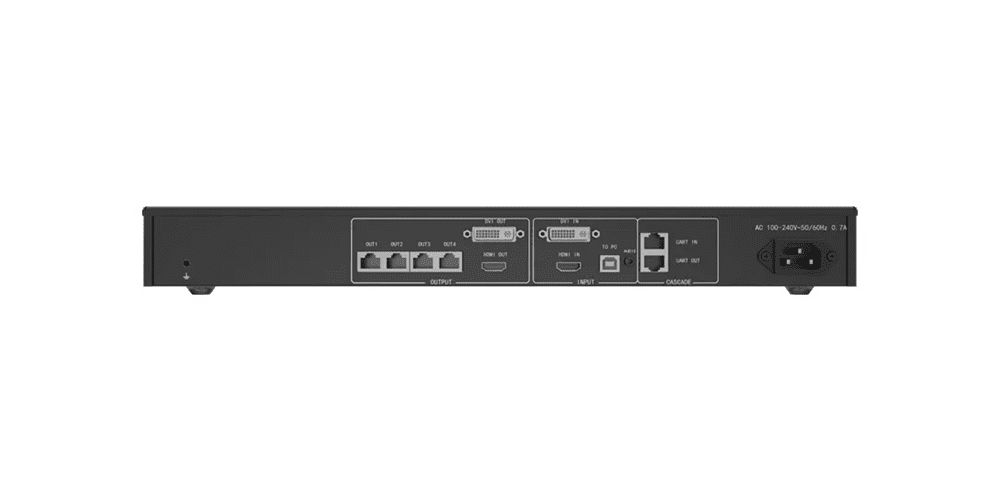

3.2 Rear Panel

The NovaStar MCTRL660 is engineered to deliver reliable performance under a variety of operating conditions:

To help users choose the right model for their needs, here’s a detailed comparison between the NovaStar MCTRL660 and the NovaStar MCTRL660 Pro:

While the MCTRL660 offers excellent value for standard applications, the MCTRL660 Pro provides enhanced capabilities for higher-resolution and more complex setups.

Q1：What is the input and output specification of the NovaStar MCTRL660?

The MCTRL660 supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs.

Q2：What is the load capacity of the MCTRL660?

A single MCTRL660 device supports input resolutions up to 1920×1200@60Hz, with each Ethernet port capable of handling up to 650,000 pixels.

Q3：Is the MCTRL660 compatible with my existing LED display system?

Yes, the MCTRL660 is designed to be highly compatible with most standard LED modules and can be integrated into various display setups.

The NovaStar MCTRL660 stands out as a reliable and cost-effective LED display controller, offering a strong balance of performance, flexibility, and ease of use. With features like smart screen configuration, high-bit-depth processing, and stable multi-device cascading, it is well-suited for a wide range of applications—from live events to fixed installations.

For users seeking a practical solution that delivers consistent image quality and straightforward operation, the MCTRL660 remains a solid choice in today’s LED display market.
