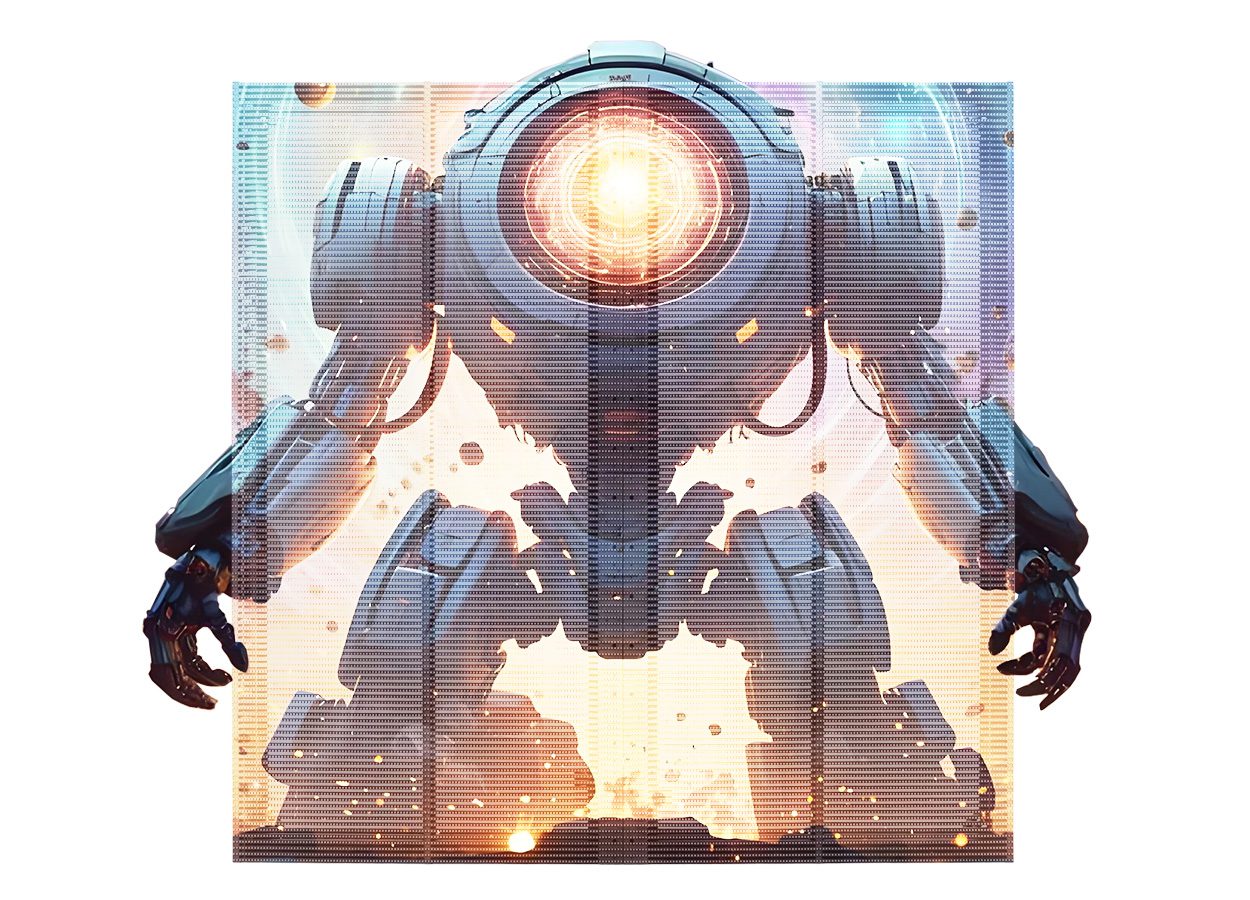

EA1000TOF2 Outdoor Transparent LED display
The EA1000TOF2 outdoor transparent LED display features a slim cabinet design with 60% transparency. Equipped with fully sealed LED lamps and silicone-encapsulated PCBs, it achieves IP65 protection, ensuring reliable performance for outdoor fixed installation applications..
1000×1000mm Lightweight Cabinet
Built with an aluminum frame and transparent structure, each cabinet weighs just 15.8 kg and is only 80 mm thick, offering a lightweight yet robust design for easy installation and maintenance.

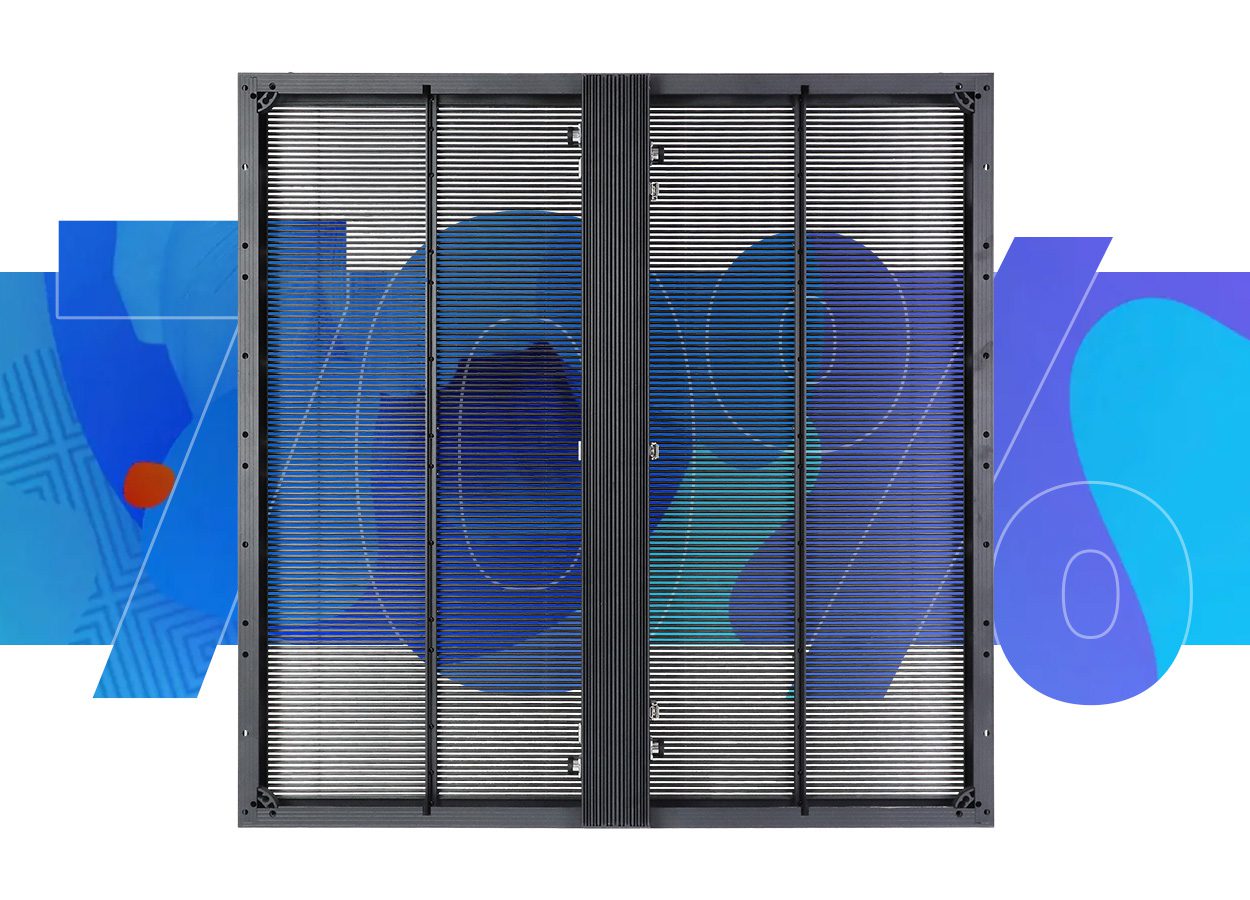

60% Transparency
The EA1000TOF2 outdoor transparent LED display offers 60% transparency, enhancing heat dissipation while preserving clear outdoor visibility and seamless environmental integration.

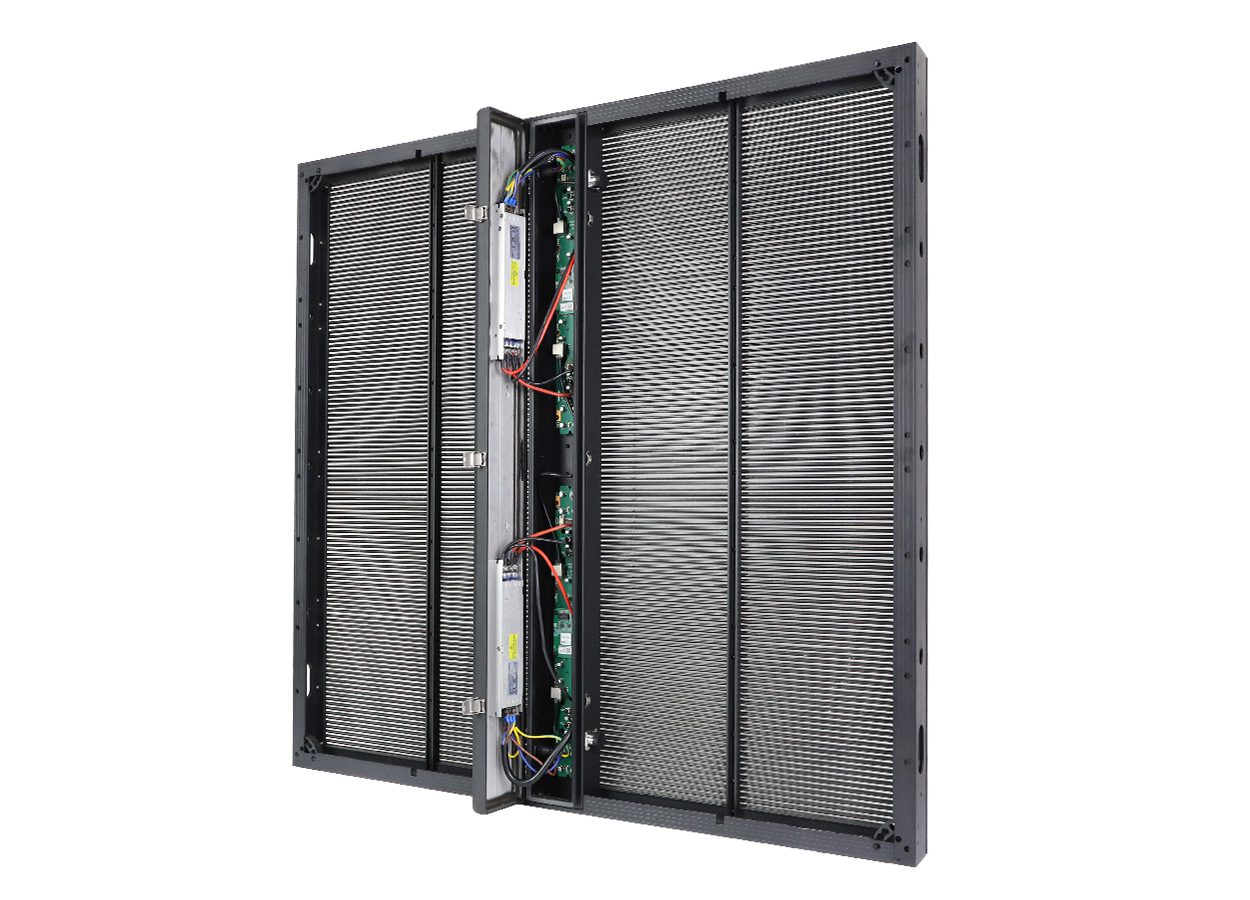

Openable rear cover
The outdoor transparent LED screen features an openable rear cover design, enabling easy and efficient maintenance and adapting well to various outdoor installation environments.

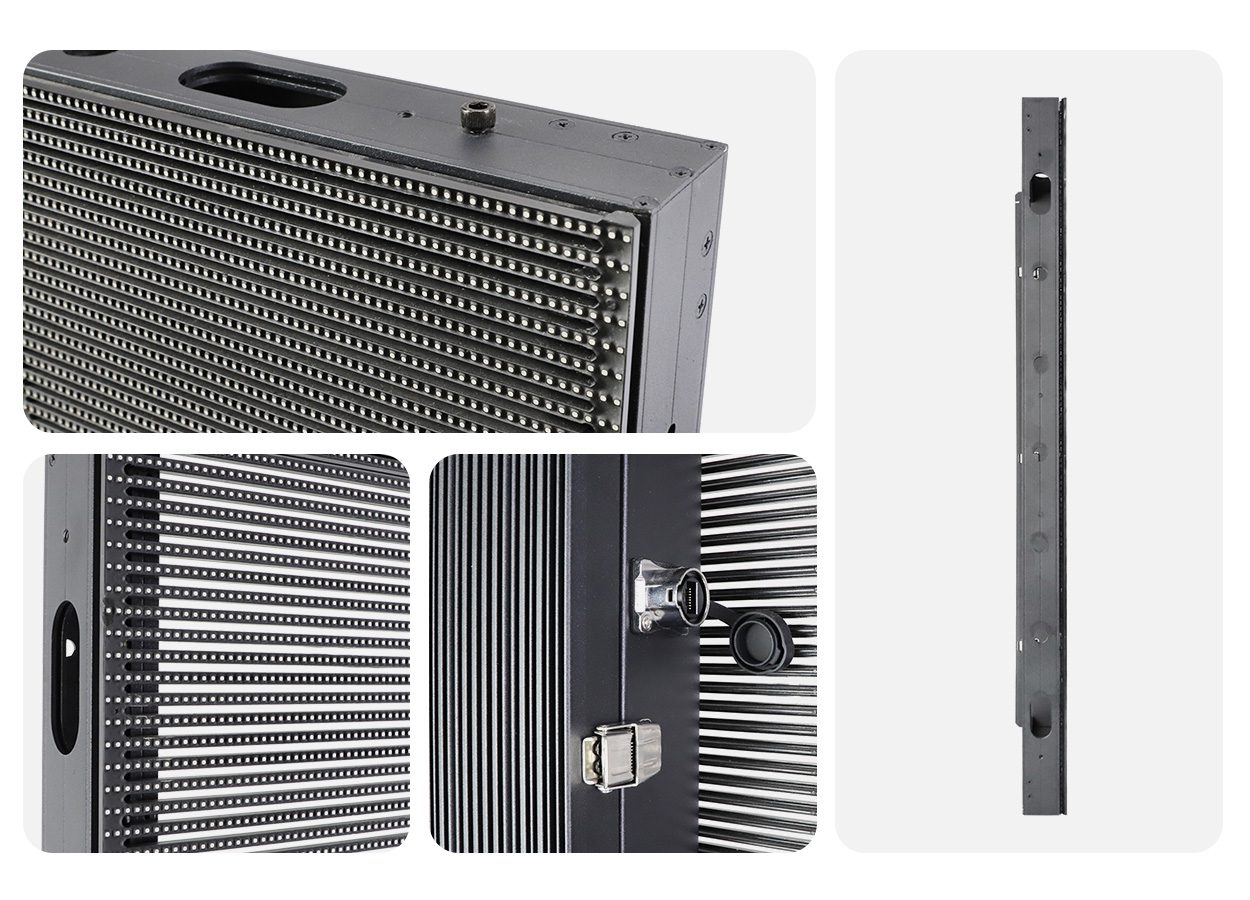

Exquisite Cabinet Design
The outdoor transparent LED screen features a clean and elegant cabinet design with a well-organized structure, ensuring practicality, easy installation, and convenient maintenance.
Outdoor IP65 waterproof
The EA1000TOF2 outdoor LED display is built with IP65-rated waterproofing, delivering reliable performance and long-term stability even in rain, dust, and other harsh outdoor weather conditions.
EA1000TOF2 Outdoor Transparent LED Screen Parameter
| Pixel Pitch (mm) | P3.91-7.82(1000x500) | P3.91-7.82(1000x750) | P3.91-7.82 | P10.4 | P15.6 |
|---|---|---|---|---|---|
| Model | EA1000TOF2-P3.91 | EA1000TOF2-P3.91 | EA1000TOF2-P3.91 | EA1000TOF2-P10.4 | EA1000TOF2-P15.6 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Density (Pixels/㎡) | 32,768 | 32,768 | 32,768 | 9216 | 4096 |
| Module Resolution (Pixel) | 128x32 | 128x32 | 128x32 | 48x12 | 32x8 |
| Module Size (mm) | 500x250 | 500x250 | 500x250 | 500x125 | 500x125 |
| Driving Mode (Duty) | 1/8 | 1/8 | 1/8 | 1/2 | 1/1 |
| Cabinet Size (mm) | 1000x500 | 1000x750 | 1000x1000 | 1000x1000 | 1000x1000 |
| Cabinet Weight (KG) | 8.5 | 12.5 | 15.8 | 15.8 | 15.8 |
| Brightness (CD/㎡) | 4500 | 4500 | 4500 | 5000 | 5000 |
| Transparency | 60 | 60 | 60 | 70 | 80 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 800 | 800 | 800 | 800 | 800 |
| Avg. Power Consumption (W/㎡) | 260 | 260 | 260 | 260 | 260 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | '-20～+50 | '-20～+50 | '-20～+50 | '-20～+50 | '-20～+50 |
| Protecting Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
