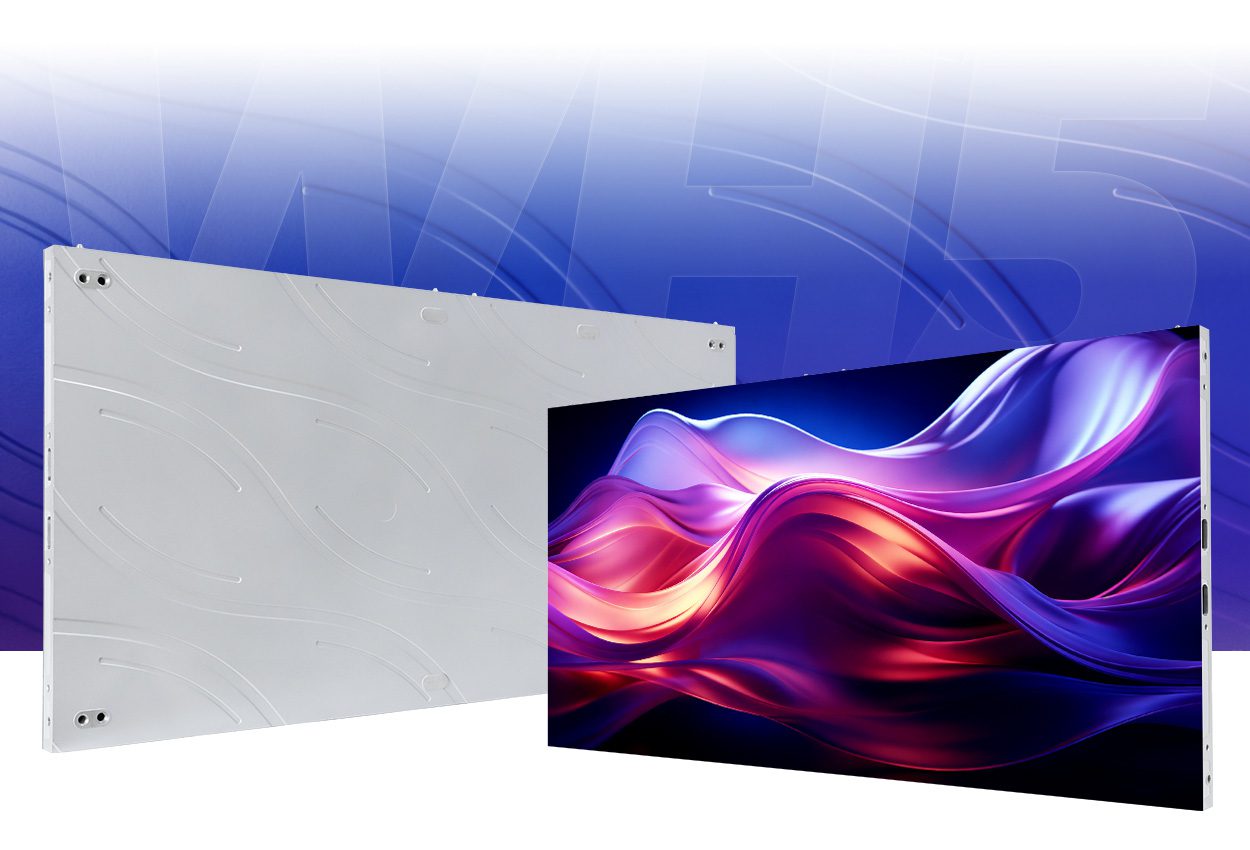

EA250WH5 indoor LED display
EA250WH5 is an indoor LED display using 250 × 250 mm modules. The listed cabinet widths are 500, 750 and 1000 mm, with heights of 250 or 500 mm. Check the selected pitch, cabinet grid and IP31 indoor protection against the project requirements. Compare the indoor LED screen selection guide and send your wall layout and content brief for an itemized proposal.

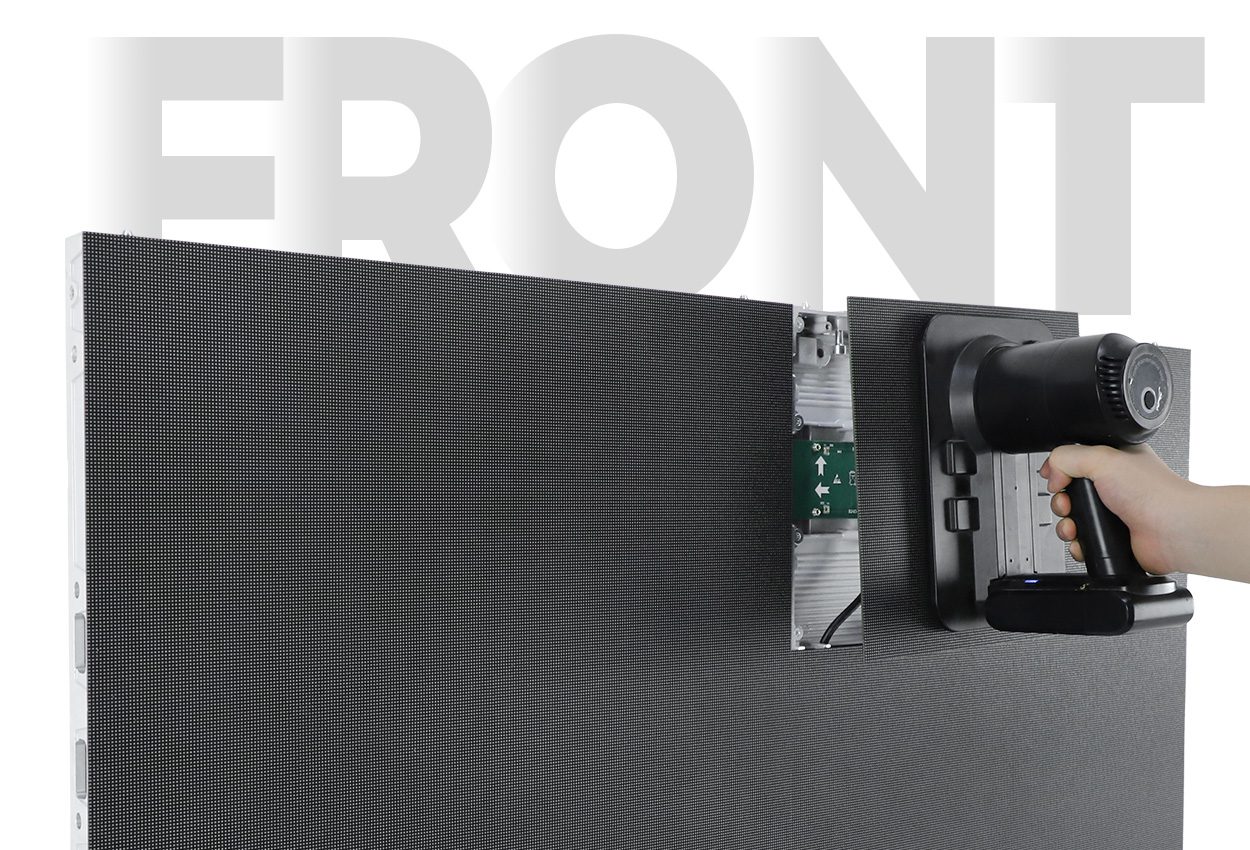

Full front service design
EA250WH5 supports front-access maintenance. Confirm access to modules, power supplies and receiving cards for the supplied version. Allow the specified ventilation, cable routes, mounting depth and safe working space; front service does not eliminate these requirements.

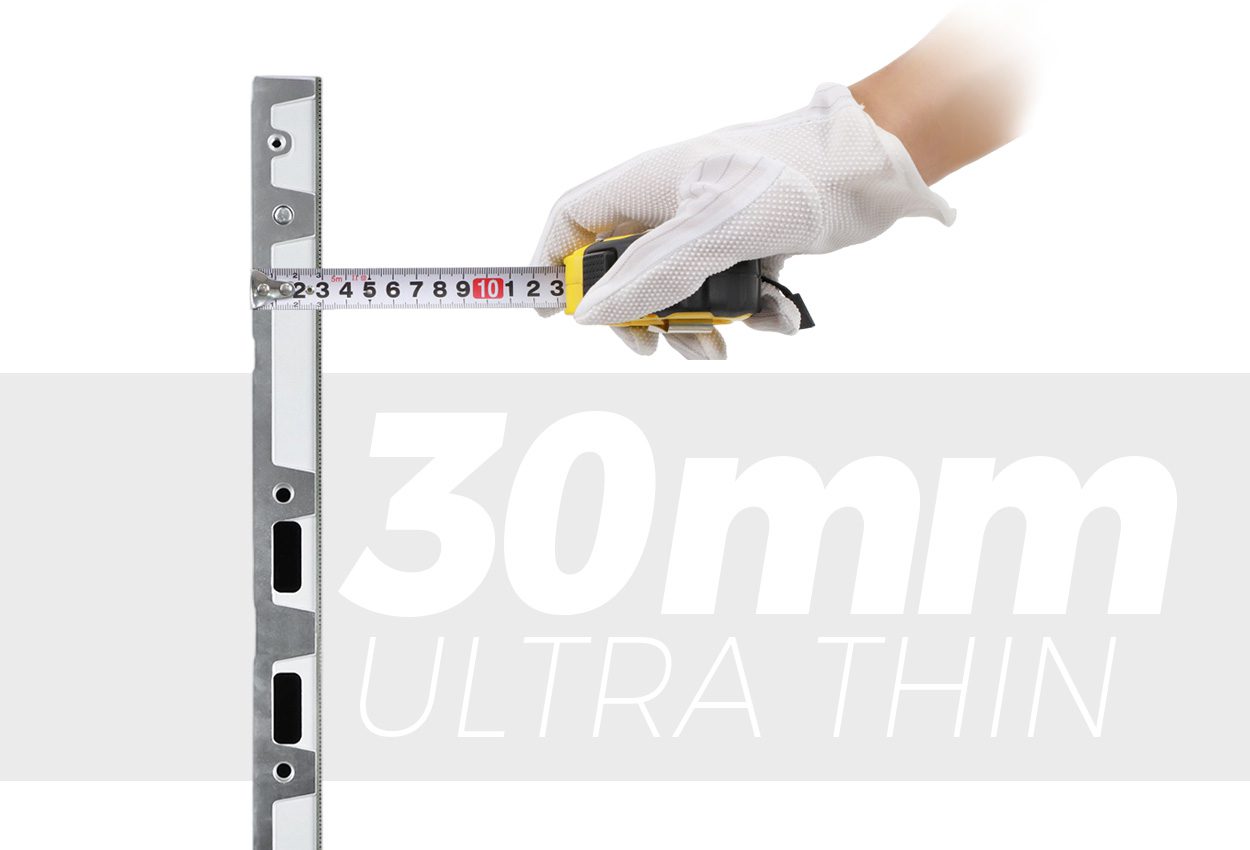

Ultra-thin 30mm Design
EA250WH5 indoor LED display features an ultra-thin 30mm cabinet design for a sleek, space-saving installation.

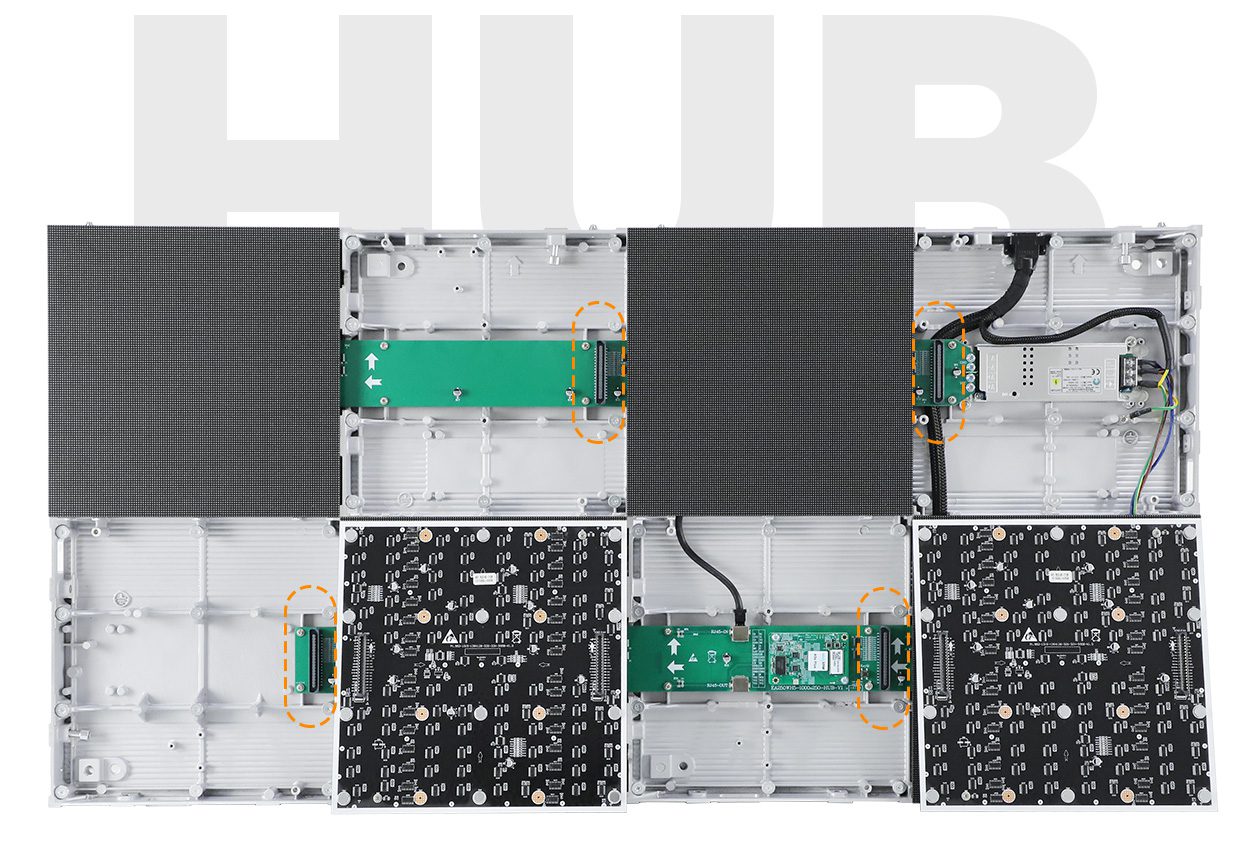

HUB connection
EA250WH5 uses HUB connections within the cabinet. Confirm module pinout, scan mode, power distribution and receiving-card settings before selecting replacement parts. External power and signal connections are still required; the HUB alone does not guarantee reliability.

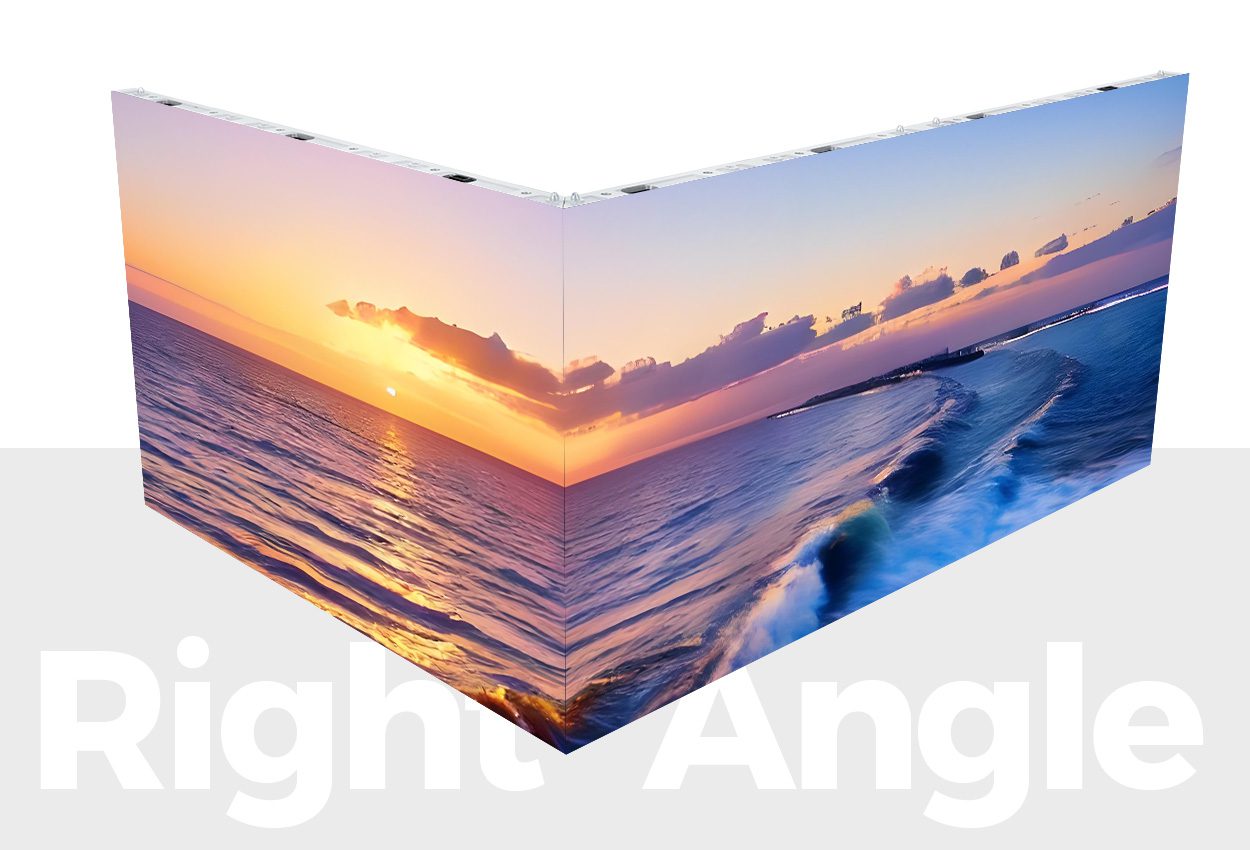

Creative splicing
EA250WH5 indoor LED display supports right-angle splicing for flexible and creative display configurations.

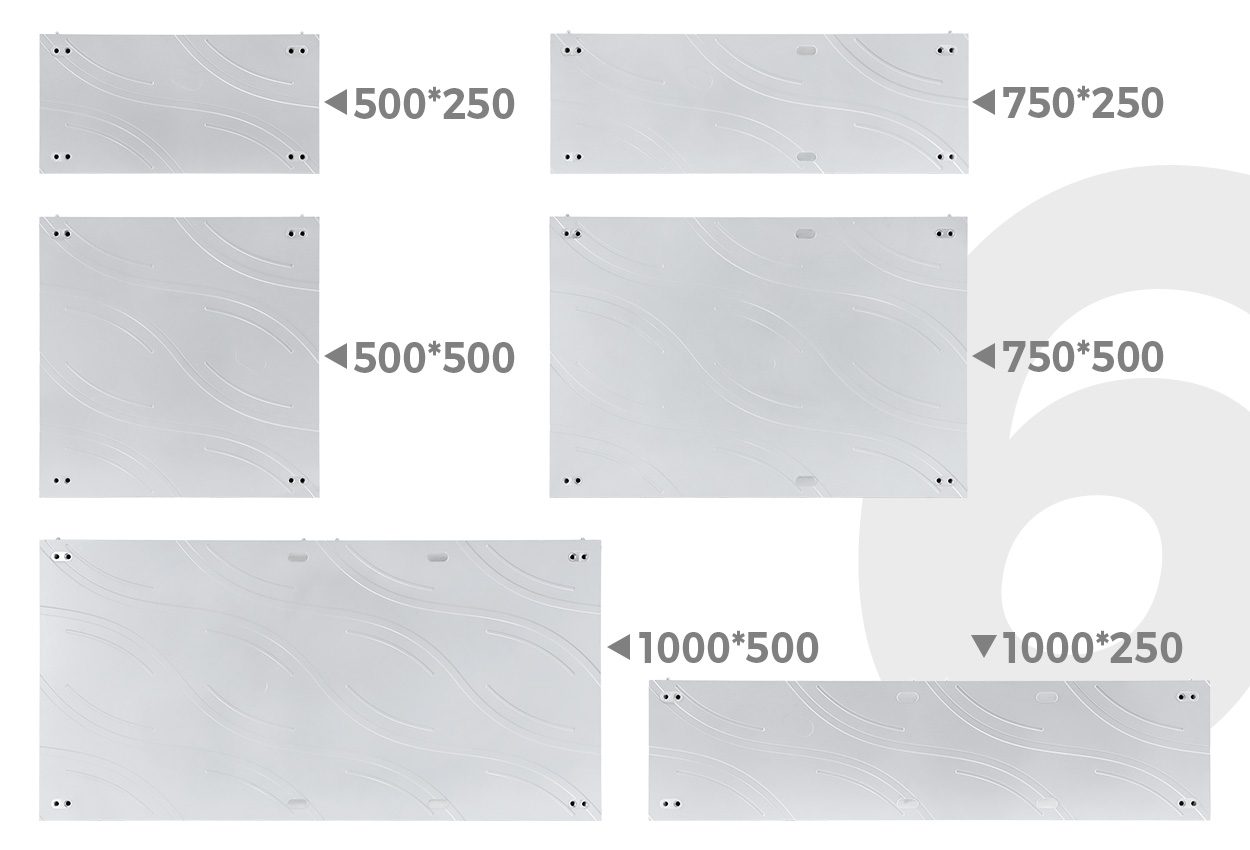

6 Sizes Available
EA250WH5 indoor LED display is built on 250×250mm modules and offers six cabinet sizes, including 500×250mm, 750×250mm, 1000×250mm, 500×500mm, 750×500mm, and 1000×500mm, providing flexible solutions for different display applications.

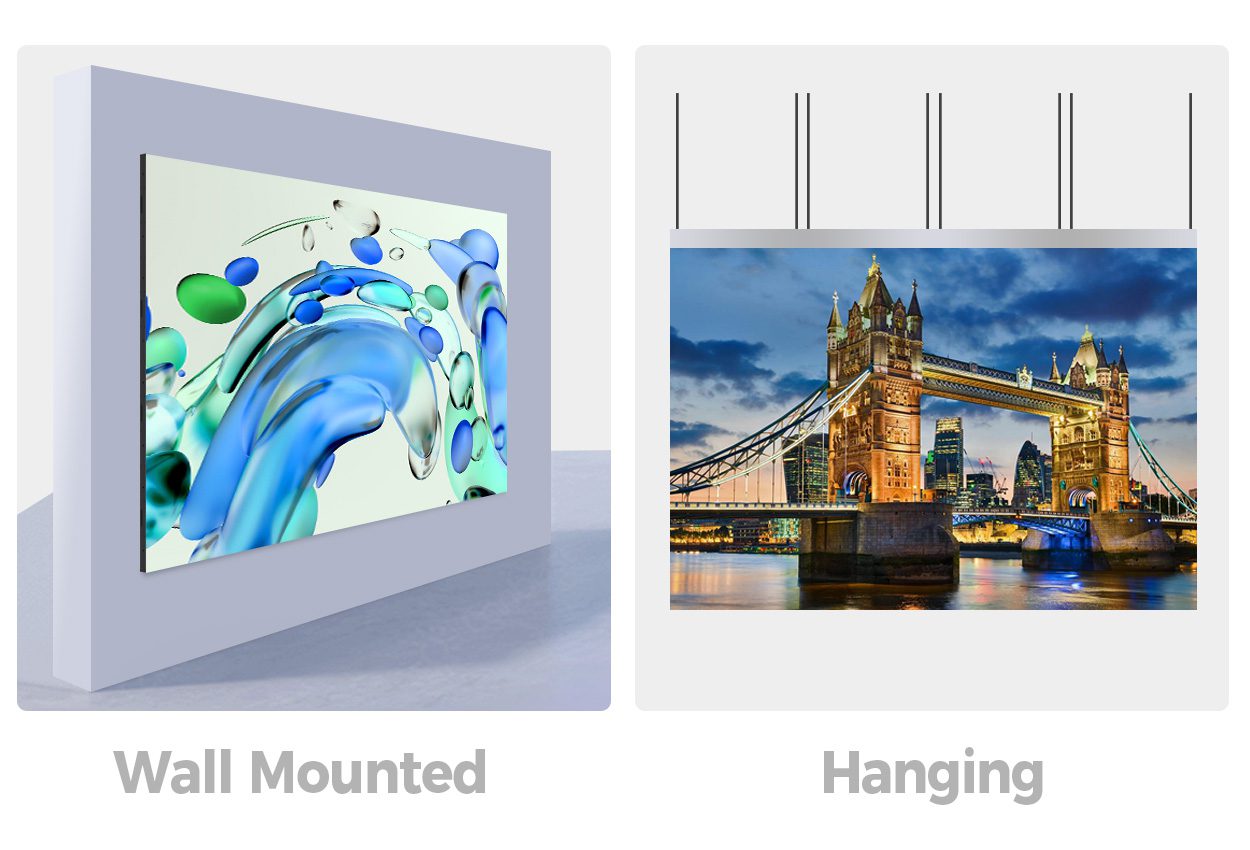

Versatile Mounting Options
Confirm the approved cabinet arrangement, brackets, load limits and service access for the planned mounting method. Hanging, wall and pillar installations require appropriate support design and rated accessories; do not assume every cabinet arrangement is approved for all three.

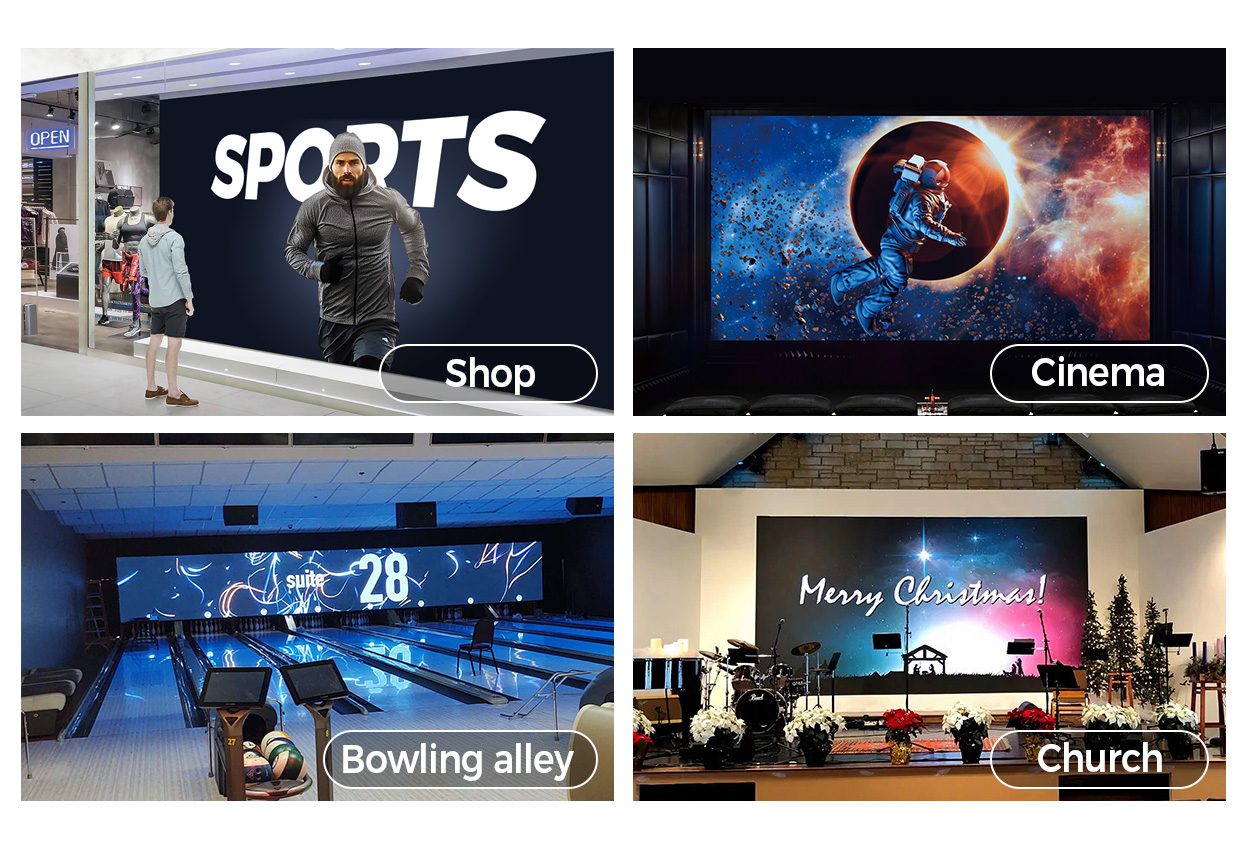

Indoor Applications
EA250WH5 LED display wall is designed for indoor use and is widely applied in home theaters, advertising displays, retail spaces, churches, and other environments.
EA250WH5 indoor LED display Parameter
| Pixel Pitch (mm) | P1.25 GOB | P1.56 GOB | P1.95 GOB | P2.5 | P2.6 | P2.97 | P3.91 |
|---|---|---|---|---|---|---|---|
| Model | EA250WH5-P1.25 | EA250WH5-P1.56 | EA250WH5-P1.95 | EA250WH5-P2.5 | EA250WH5-P2.6 | EA250WH5-P2.97 | EA250WH5-P3.91 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 200x200 | 160x160 | 128x128 | 100x100 | 96x96 | 84x84 | 64x64 |
| Module Size (mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Driving Mode (Duty) | 1/50 | 1/40 | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500/750/1000x250, 500/750/1000x500 | 500/750/1000x250, 500/750/1000x500 | 500/750/1000x250, 500/750/1000x500 | 500/750/1000x250, 500/750/1000x500 | 500/750/1000x250, 500/750/1000x500 | 500/750/1000x250, 500/750/1000x500 | 500/750/1000x250, 500/750/1000x500 |
| Cabinet Weight (KG) | 3.0/4.3/5.7, 5.3/8.0/10.5 | 3.0/4.3/5.7, 5.3/8.0/10.5 | 3.0/4.3/5.7, 5.3/8.0/10.5 | 3.0/4.3/5.7, 5.3/8.0/10.5 | 3.0/4.3/5.7, 5.3/8.0/10.5 | 3.0/4.3/5.7, 5.3/8.0/10.5 | 3.0/4.3/5.7, 5.3/8.0/10.5 |
| Brightness (CD/㎡) | 600 | 600 | 750 | 750 | 750 | 750 | 750 |
| Viewing Angle (°) | 160 | 160 | 160 | 160 | 160 | 160 | 160 |
| Gray Grade (Bits) | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional |
| Operation Power | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz | AC90-264V,47-63Hz |
| Max. Power Consumption (W/㎡) | 300 | 280 | 320 | 280 | 300 | 300 | 300 |
| Avg. Power Consumption (W/㎡) | 100 | 95 | 110 | 95 | 100 | 100 | 100 |
| Frame Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
