NovaStar VX6s LED Video Controller: The Complete User Guide for 2026

The NovaStar VX6s is a proven all-in-one LED video controller trusted by rental companies, AV integrators, and LED display professionals worldwide. Combining video processing and LED control in a single device, it offers an excellent balance of performance, reliability, and value.

In this guide, you’ll learn everything you need to know about the NovaStar VX6s, including its specifications, key features, setup procedures, NovaLCT configuration, troubleshooting tips, and whether it’s still worth buying in 2026.

Table of Content

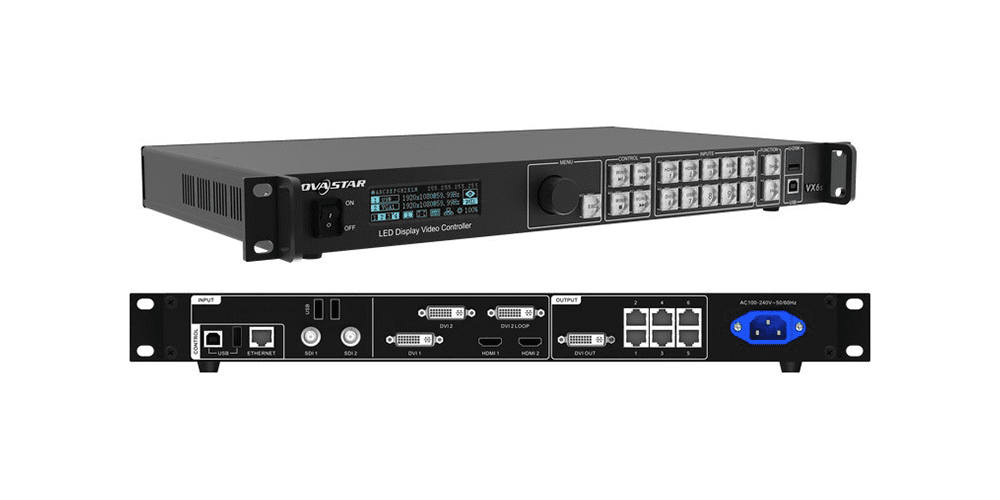

The NovaStar VX6s is one of the most widely used all-in-one LED video controllers in the LED display industry. By integrating a video processor and LED sending card into a single device, it simplifies system deployment while delivering reliable image processing and screen control.

Designed for rental events, corporate AV, churches, exhibitions, and fixed LED installations, the VX6s remains a popular choice for users seeking a balance between performance, flexibility, and affordability.

The VX6s supports a wide range of video sources, allowing users to connect cameras, laptops, media servers, and broadcast equipment simultaneously.

In Direct Mode, DVI supports up to 3840×648@60Hz.

This versatile input configuration is particularly useful for live productions, where multiple signal sources need to be switched quickly and reliably.

The VX6s provides six Gigabit Ethernet outputs with a total loading capacity of up to 3.9 million pixels, making it suitable for medium and large LED display projects.

Key benefits include:

• Supports large LED video walls
• Stable long-distance data transmission
• Compatible with Cat5e and Cat6 network cables

Simplifies cabinet connection and screen configuration

For most rental LED displays and conference room installations, the VX6s provides more than enough capacity without requiring additional sending devices.

The VX6s supports up to three independent image layers plus one OSD layer, allowing operators to display multiple content sources on a single screen.

Typical applications include:

• Full-screen background video
• Picture-in-picture camera feeds
• Company logos and branding elements
• Event countdown timers

Each layer can be freely resized, repositioned, and scaled for maximum creative flexibility.

Smooth source switching is essential for professional presentations and live events.

The VX6s supports:

• Seamless source switching
• Fade-in and fade-out effects
• Black-screen transitions
• Stable signal switching without screen flashing

These features help create a more polished viewing experience during conferences, stage productions, and live broadcasts.

The VX6s offers two operating modes to accommodate different production requirements.

Direct Mode

• Instant source switching
• Simple operation
• Ideal for fixed installations and everyday display applications

Switcher Mode

• Preview-before-output workflow
• Supports professional live-event operation
• Reduces switching errors during productions

This flexibility allows users to adapt the controller to both simple and complex workflows.

To simplify operation, the VX6s can store up to 16 user presets.

Each preset can save:

• Input source selection
• Layer layouts
• Scaling parameters
• Brightness settings
• Screen configuration

For rental companies and event organizers, this significantly reduces setup time when deploying the same LED display configuration repeatedly.

For most medium-sized LED display projects, the VX6s provides sufficient loading capacity without requiring additional sending devices, helping reduce both system complexity and deployment costs.

The VX6s supports multiple video input formats, making it compatible with a wide range of professional and consumer video sources.

Supports up to 3840×648@60Hz in Direct Mode.

These input options allow users to connect laptops, cameras, media servers, switchers, and broadcasting equipment simultaneously, making the VX6s highly adaptable for live events and multi-source presentations.

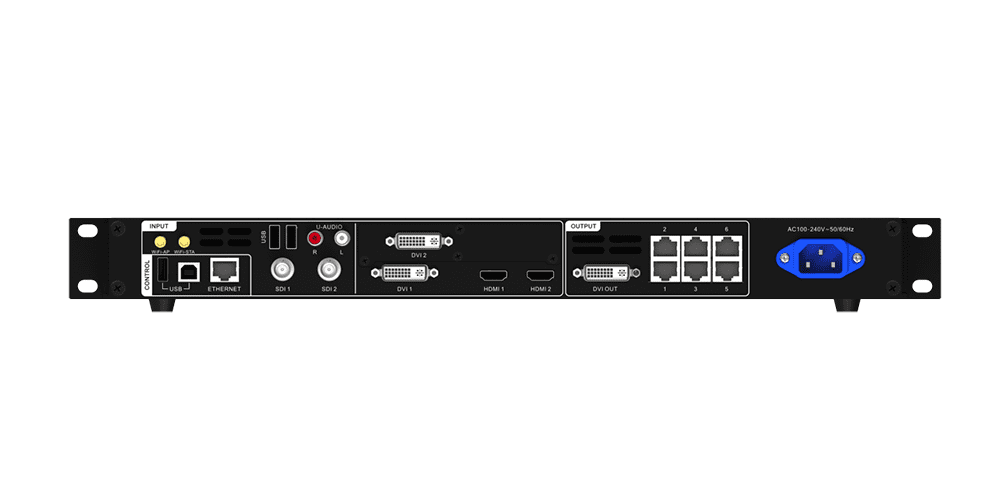

The controller features six Gigabit Ethernet outputs for driving LED cabinets and one DVI monitoring output for preview and program monitoring.

Key output features include:

• 6 × Gigabit Ethernet ports for LED screen data transmission
• Supports up to 3.9 million pixels
• DVI monitor output for PVW/PGM monitoring
• Compatible with NovaStar receiving cards
• Stable long-distance transmission over Cat5e/Cat6 cables

This output architecture enables reliable control of medium-to-large LED video walls while maintaining straightforward system wiring.

The NovaStar VX6s is designed for professional installations and long-term operation in various indoor environments.

• Power Supply: AC 100V–240V, 50/60Hz
• Operating Temperature: 0°C to +45°C
• Storage Temperature: -20°C to +60°C
• Installation Type: Rack-mounted or standalone
• Cooling System: Intelligent active cooling

The controller also complies with major international certifications, including CE, RoHS, FCC, UL, CB, KC, RCM, IC, and EAC, ensuring reliable performance and global deployment compatibility.

• LED screen assembled and receiving cards installed
• `.rcfgx` configuration files saved
• All cables verified
• NovaLCT installed on control PC (download from novastar.tech)

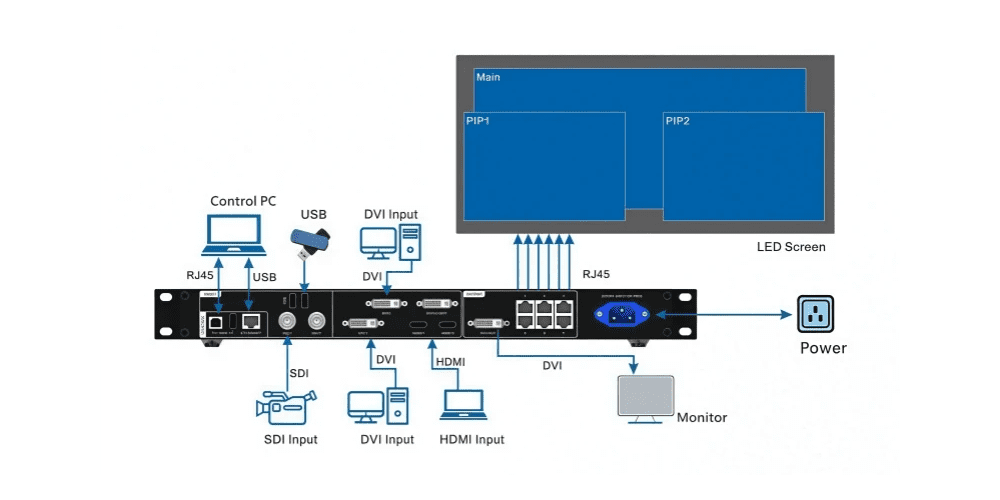

Video sources: Plug laptops (HDMI), media servers (HDMI/DVI), and cameras (3G-SDI) into rear-panel inputs.

LED cabinets: Run Cat5e/Cat6 from VX6s Ethernet ports to the first receiving card in each daisy-chain.

Monitoring: Attach a DVI monitor to the Monitor Output for PVW/PGM confidence monitoring.

USB:Connect  NovaStar VX6s to PC via USB. NovaLCT auto-detects. Network: Connect both to the same LAN via the ENET port.

Go to Screen Configuration → Screen Connection Tab. Enter cabinet matrix, total columns/rows, assign each Ethernet port to its cabinets in daisy-chain order. Final shape must be a rectangle. Click Send to Hardware → Save.

Adjust brightness manually or set auto-adjustment by ambient light sensor or schedule. Set each input resolution to match the source (typically 1920×1080@60Hz, 8-bit). Mismatched resolutions cause scaling artifacts.

Export `.rcfgx` (receiving card config) and `.scr` (screen connection) after every change. Store copies on shared drive, USB, and email. These files restore your full setup in seconds.

Create, resize, and position up to 3 windows via NovaLCT or front panel. Layer priority (z-order) controls stacking. Use the OSD layer for permanent overlays.

Lower brightness indoors to reduce power and extend LED life; increase for outdoor use. Save up to 16 presets named by venue or event — recall from NovaLCT, VICP app, or front panel.

Press dedicated source buttons (HDMI, SDI, DVI, USB) for immediate switching. In Switcher Mode, preview on the DVI monitor first, then press TAKE — best practice for live events.

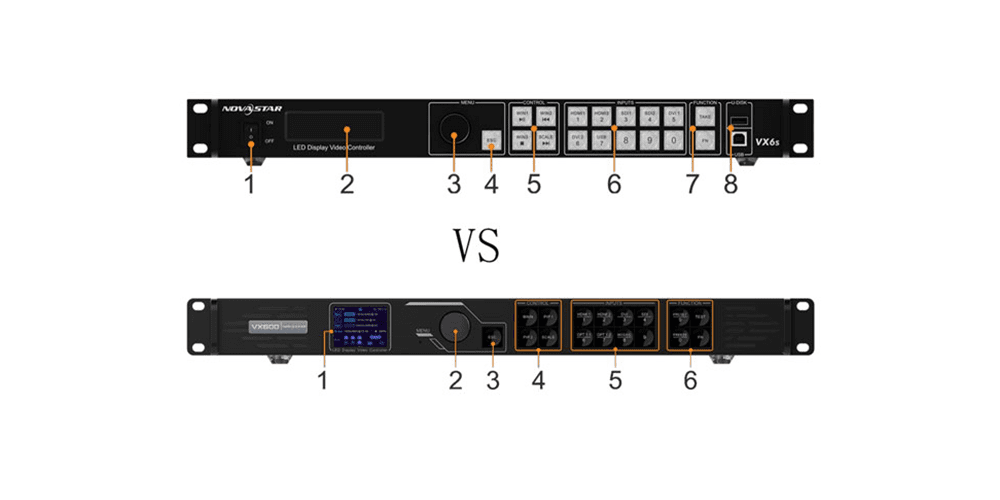

Both the NovaStar VX6s and NovaStar VX600 are all-in-one LED video controllers that combine a video processor and sending card in a single device.

However, the VX600 is the newer-generation model, offering higher loading capacity, improved video processing, and more advanced connectivity. The VX6s remains a popular choice for budget-conscious projects, while the VX600 is better suited for higher-resolution LED displays and modern event applications.

For rental LED setups, the key priorities are fast installation, high refresh rate, stable grayscale, and flexible curvature support. The VX6s performs best with mid-to-fine pixel pitch rental cabinets.

EagerLED EA500H9 Series Rental LED display

A high-performance rental cabinet designed for quick-lock installation, curved configuration support, and stable output for live events. Ideal for concerts, exhibitions, and touring stages where camera capture is required.

For indoor environments, the focus is high resolution, close viewing distance, and color uniformity. The VX6s can comfortably drive fine-pitch indoor walls for corporate, retail, and broadcast use.

（1）EA640F2 Indoor LED Display

A front-service indoor LED display with a 4:3 design, suitable for meeting rooms, control centers, and fixed installations requiring seamless image quality.

（2）EA250WH5 EA250WH5 Indoor LED Display Wall

Ultra-slim wallpaper-style LED display designed for architectural integration, retail branding walls, and creative indoor installations where aesthetics matter as much as resolution.

Outdoor LED systems paired with the VX6s should prioritize brightness (≥5000 nits), IP65 protection, and wider pixel pitches optimized for distance viewing.

Small outdoor displays (close viewing, 3–10m):P3.9 / P4.8

Suitable for storefronts, event backdrops, and medium outdoor advertising walls.

Medium outdoor displays (10–30m):P5 / P6.25

Ideal for stage LED walls, public squares, and rental outdoor events.

Large-format billboards (30m+):P8 / P10

Best for stadiums, highway advertising, and high-elevation signage where long-distance visibility is key.

3.9 million pixels across 6 Gigabit Ethernet ports (~650K per port). Max resolution: 4096×4096.

Yes, two 3G-SDI inputs up to 1920×1080@60Hz. SDI1 supports de-interlacing.

Yes, via USB Type-A (output) to USB Type-B (input).

NovaStar A5s, A7s, A8s, A10s, MRV series, and most standard NovaStar receiving cards.

Yes — 16 presets, 7 inputs, DVI preview, and front-panel Quick Config make it a strong rental choice.

Yes — seamless cuts and fade-to-black in Switcher Mode.

NovaLCT (configuration), V-Can (remote control), VICP app (mobile adjustments).

Some resellers list it discontinued in favor of VX600, but it remains widely available, fully software-supported, and actively deployed worldwide.

• NovaStar VX6s User Manual
• NovaStar VX6s Specifications

The NovaStar VX6s earns its reputation as a workhorse mid-range controller. With 7 flexible inputs, 3.9M pixel capacity, and a front panel that technicians actually enjoy using, it delivers everything most mid-size LED projects need — without the premium of higher-capacity models. For rental companies, churches, corporate integrators, and event producers running walls under 3.9 million pixels at 1080p, the VX6s remains a solid, proven choice in 2026.

The VX6s is available through authorized distributors including EagerLED.
